When R0621 is set to ON, 100 data words are received from the sender (IP address =
192.0.0.5, Port number = 5000) and are stored in D2000 to D2099. When the operation is
finished, R0621 is reset to OFF automatically.
UDP Socket Close
SEND instruction is used. [ A SEND B ]▬
A : H3100 (fixed) B : Result status
A+1
: UDP close command (H0034)
B+1
: Error code
A+2 : Socket number (1 to 12)

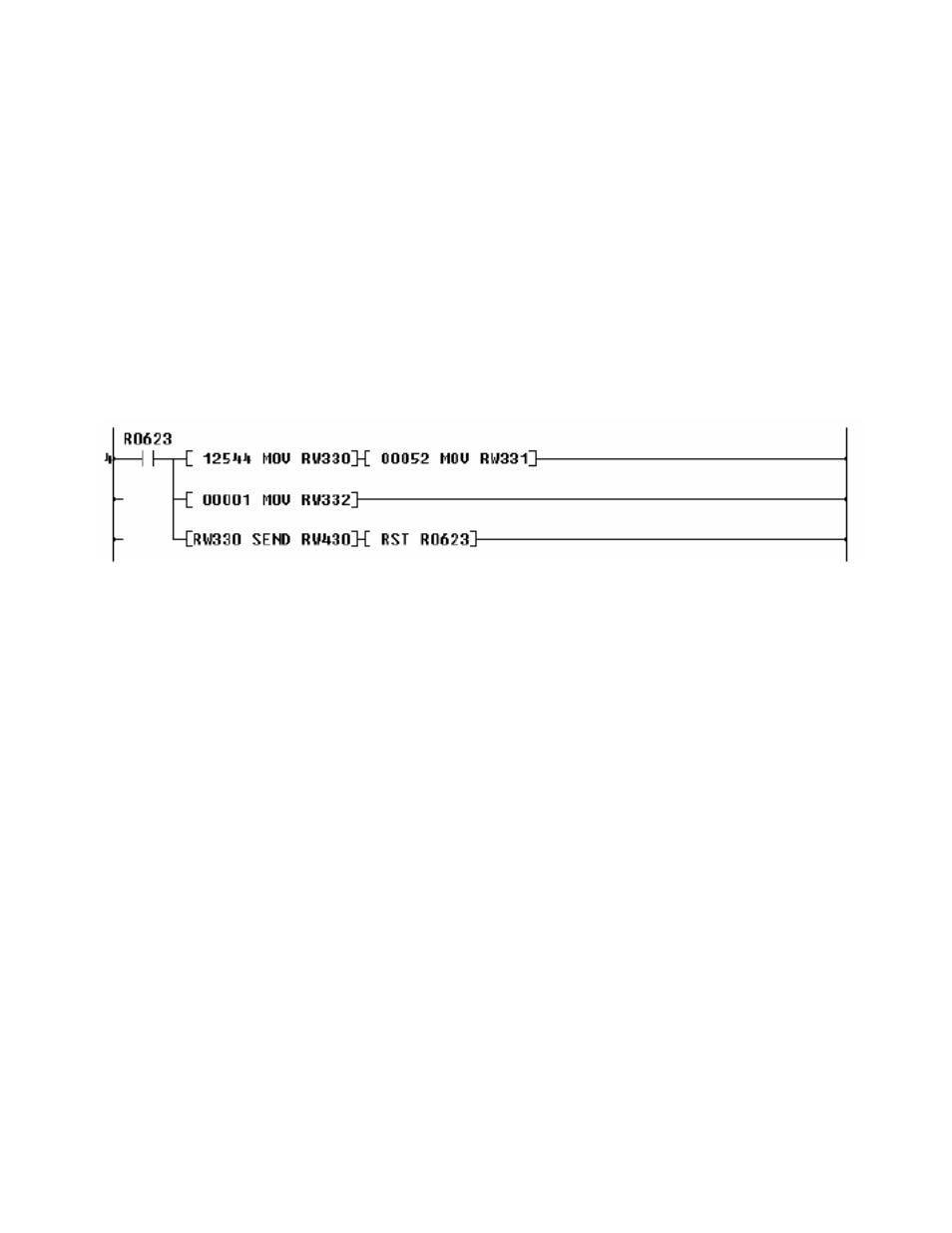

Sample program
12544 = H3100
52 = H0034
Socket number =1
When R0623 is set to ON, the UDP socket is closed. When the operation is finished, R0623 is
reset to OFF automatically.
