UDP Send:
SEND instruction is used. ▬[ A SEND B ]▬
A
: H3100 (fixed)
B
: Result status
A+1 : UDP send command (H0032) B+1: Error code
A+2
: Socket number (1 to 12)
A+3 : Receiver IP address (note 1)
A+4
: Ditto
A+5 : Receiver Port number
A+6
: Transmit data word size (1 to 1000)
A+7 : Source data table register type (note 2)
A+8
: Source data table register starting address
Note 1
If receiver IP address is 192.0.0.5 (HC0.0.0.5), set as follows.
A+3 = H0005
A+4 = HC000
Note 2
RW register = 3
D register = 4

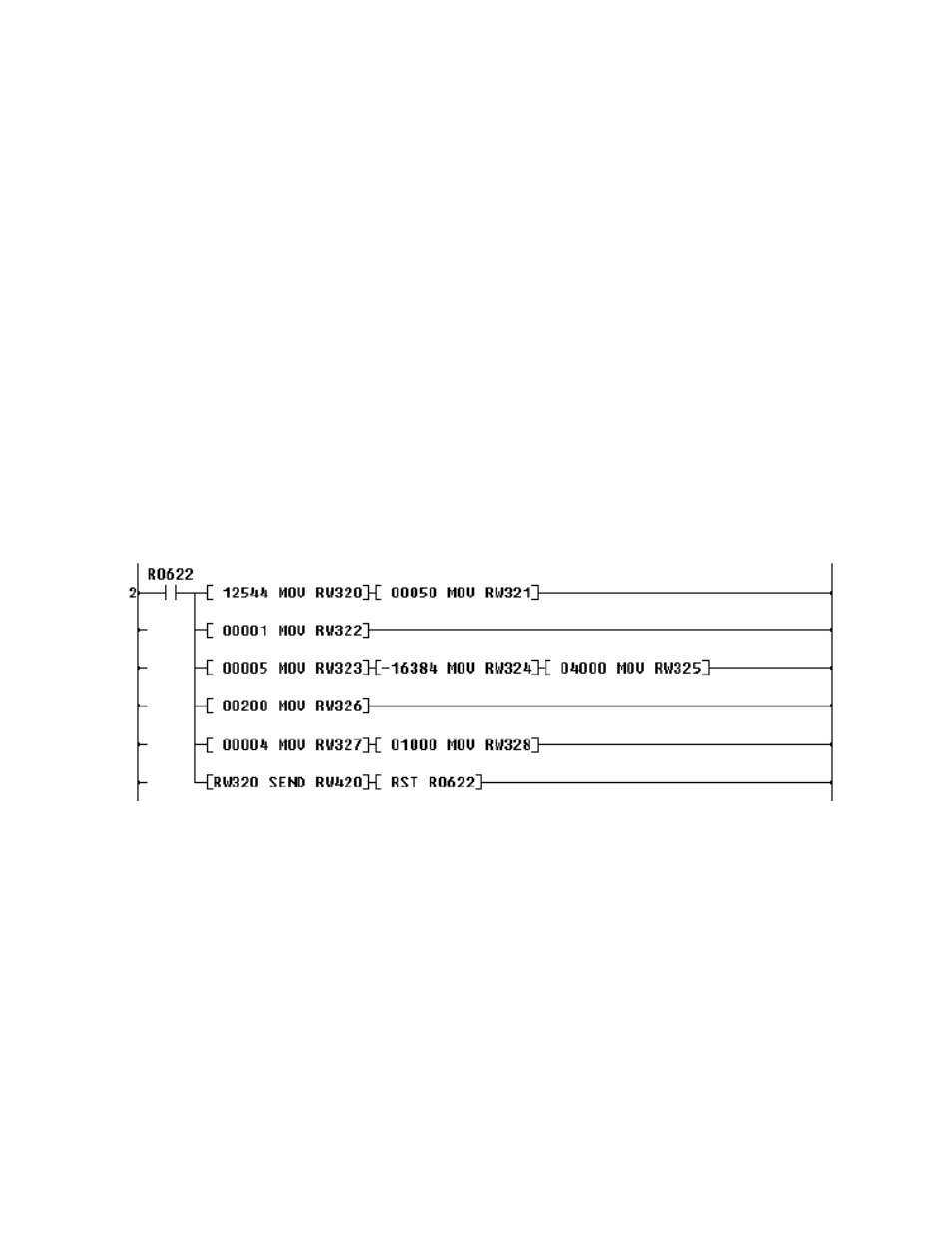

Sample Program
12544 = H3100
50 = H0032
Socket number = 1
Receiver IP address = 192.0.0.5 (-16384 = HC000)
Receiver Port number = 4000
Transmit ward size = 200
Source data table is D1000 and after
When R0622 is set to ON, 200 data words D1000 to D1199 are transmitted to the destination
(IP address = 192.0.0.5, Port number = 4000). When the operation is finished, R0622 is reset
to OFF automatically.
