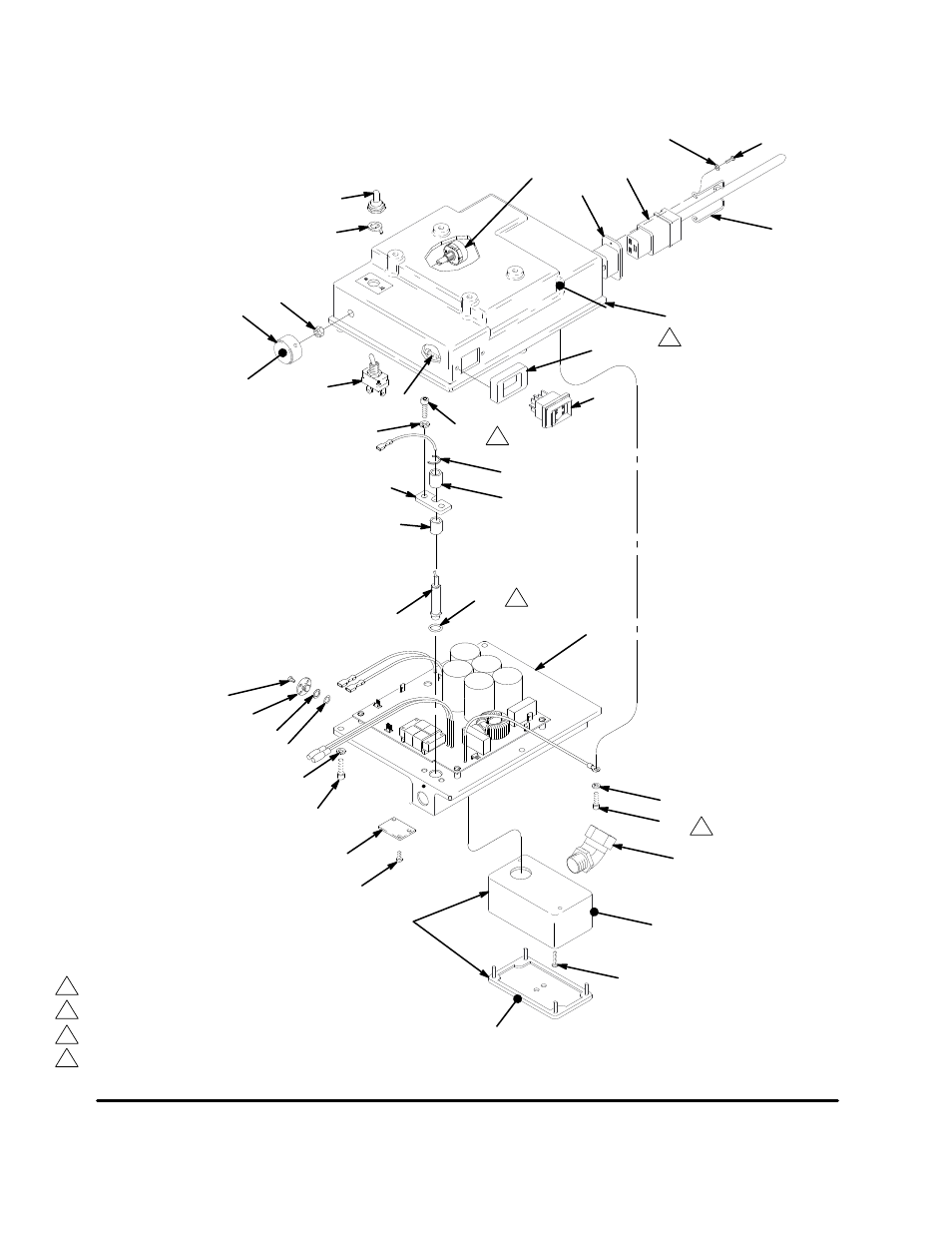

Pressure Control Parts List
Fig 21
7135A
213
236
222
221
217
208
54
220
219
233
232
214
201
218
216
215
213 214
212
203
204
205
211
206
207
209
210
202
228
23
230
229
23a
1 Torque to 150 in. lbs (17 N–m)
1
2
2 To housing ground, Fig. 17.
231
142
234
3
3 Located this point, inside housing
226
227
235
224
225
4 WARNING! See Pressure Control Transducer and O–Ring Replacement on page 17 for correct replacement procedure.
4
