Tripp Lite B034-002-R User Manual
Page 3
front panel of the KVM.
5. Connect your speakers and microphone to the correct
ports on the side of the KVM (these are optional)
Connecting the Computers
1. Connect the KVM's built-in USB cable to the USB
port on your first computer.
2. Connect the KVM's built-in VGA cable to the VGA
port on your first computer.
3. Connect the speaker port (green) and the microphone
port (pink) to the appropriate ports on the computer
(optional)
4. Repeat steps 1 through 3 for your second computer.
5. Power on your computers, and refer to operation
instruction.
Connecting USB Devices to the KVM (Optional)
1. You can share USB peripherals by connecting a USB
hub to the either USB port on the console side of the
KVM. When the hub is connected, then you can
connect the peripherals to any ports on the hub.
Remember to also connect the mouse if you used the
mouse port (or keyboard if you used the keyboard port).
Operation (Hot Key Port Selection)
The B034-002-R allows you to access either computer
using simple Hot Key keystroke functions directly from
your keyboard.
Switching Ports:
Press the "NUM LOCK" key twice within two seconds
to switch control from one computer to the other.
"[NUM LOCK], [NUM LOCK]"
5
4
1
2
3

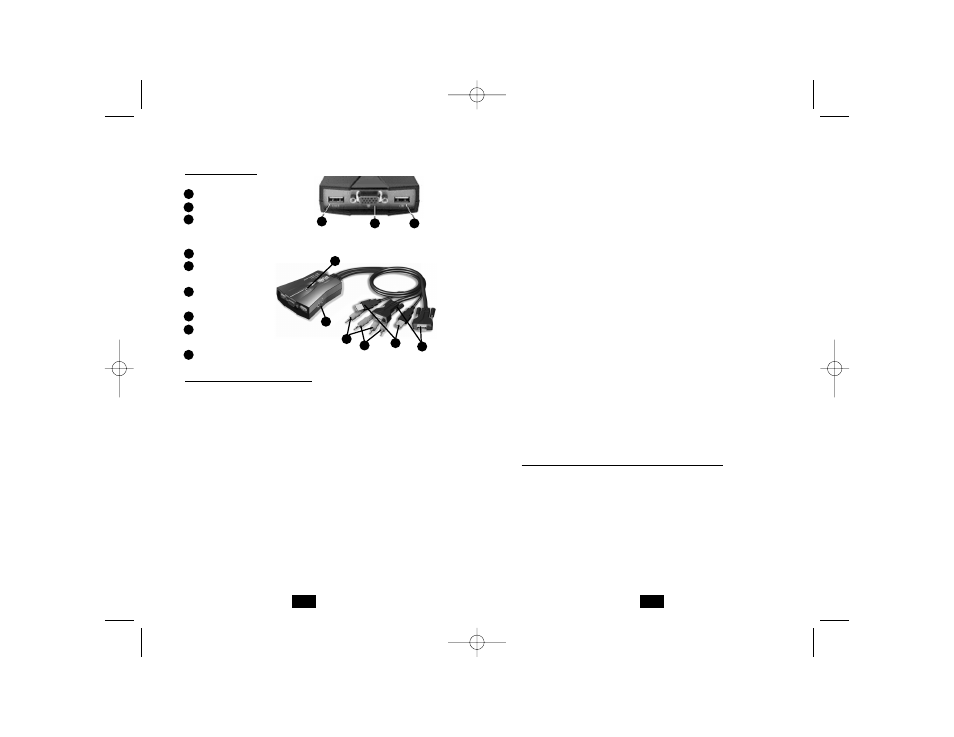

Components
Front View Console Ports:
1
USB keyboard
2
VGA
3
USB mouse
Top View & Cable View:
4
Status indicator LEDs
5
Microphone and
speaker ports
6
Microphone
connectors
7
Speaker connectors
8
USB keyboard/mouse
connectors
9
VGA connectors
Hardware Installation
Important Warning: Before starting, make sure that
the power to both computers and all the devices you are
planning to connect is off.
Note: To prevent damage due to ground potential differ-
ences, make sure that all devices are properly grounded.
Tripp Lite will not be responsible for damage caused in
this way.
Connecting the Console
1. Power off all computers.
2. Connect a USB keyboard to the keyboard port on the
front of the KVM
3. Connect a USB mouse to the mouse port on the front
of the KVM.
4. Connect your monitor cable to the VGA port on the
5
4
7
6
8
9
