4
ADJUSTING THE D-HANDLE
NOTE: The D-handle comes mounted on the backside of the shaft.
1. Locate the wing nut on the D-Handle. Untighten the wing nut
enough to loosen the D-Handle (Fig. 5).
NOTE: Do not remove wing nut, washer, or bolt.
2. Rotate the D-Handle to the
upright position on the front side
of the shaft housing (Fig. 5).
NOTE: The D-handle should slant
towards the powerhead of
the unit.
3. Hold the unit in the operating
position. If necessary, reposition
the D-handle to the location that
provides the best grip (Fig. 11).
4. Tighten the wing nut until the D-
Handle is secure.
APPLICATIONS
As a trimmer:
• Cutting grass and light weeds
• Edging
• Decorative trimming around trees, fences, etc.
Other optional accessories may be used with your unit. Refer to Operating
the EZ-Link System for a list of add-ons.
NOTE: The below illustration may differ slightly from your unit. For
example, the picture shows a straight shaft. Your unit may have a
curved shaft.
Cutting Attachment
Shield
Fuel Cap
Throttle
Control
D-Handle
Cutting
Attachment
Shaft Grip
Primer
Bulb
Oil Fill Plug / Dipstick
Air Filter
Cover
Spark
Plug
Shaft
Housing
Starter Rope Grip
Line
Cutting
Blade
Spark
Plug
Muffler
Muffler Guard
Spark Arrestor
On/Off Stop Control

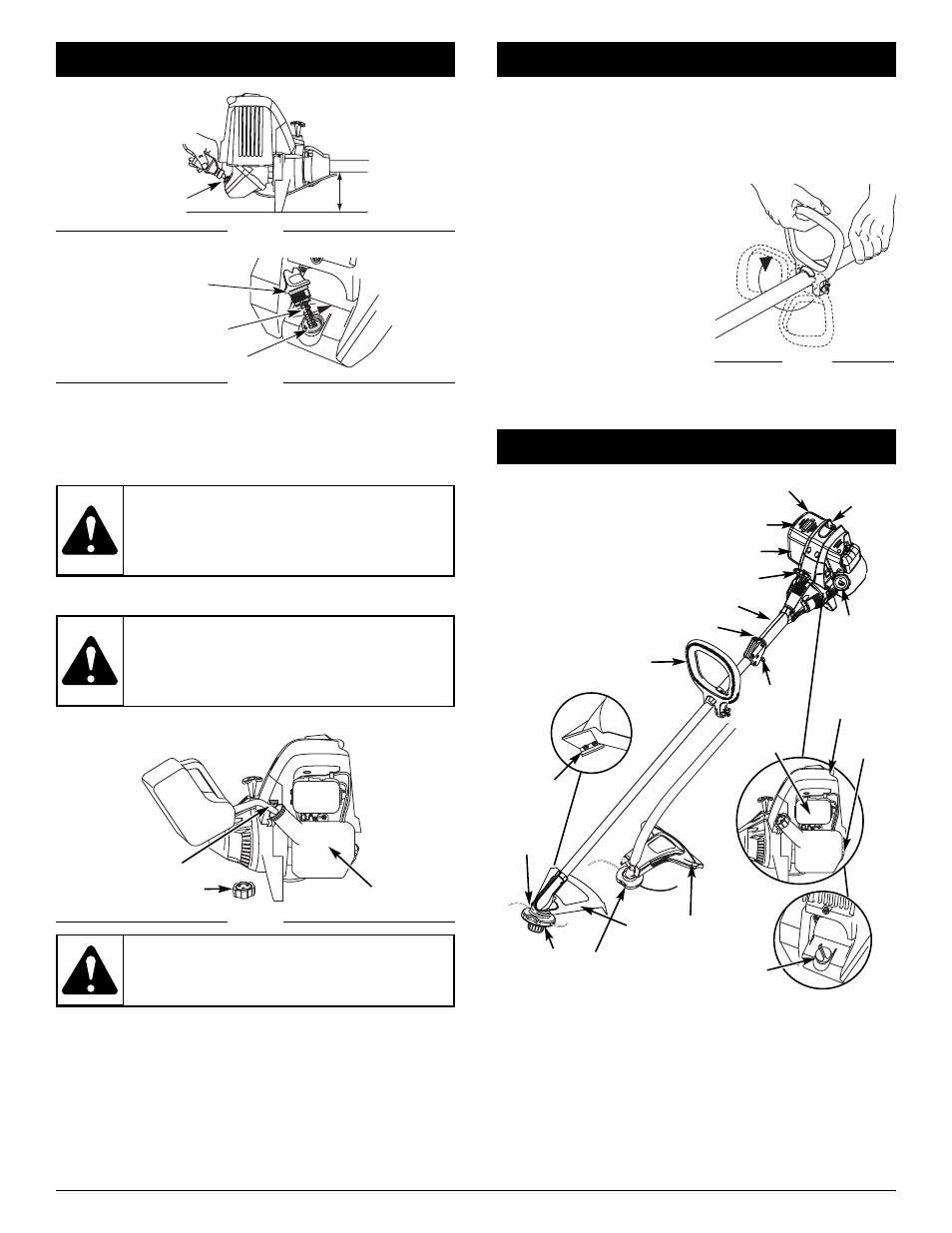

KNOW YOUR UNIT
ASSEMBLY INSTRUCTIONS OIL AND FUEL INFORMATION
FUELING THE UNIT
1. Remove the fuel cap (Fig. 4).
2. Place the gas container’s spout into the fill hole on the fuel tank
(Fig. 4) and fill the tank.
NOTE: Do not overfill the tank.
3. Wipe up any gasoline that may have spilled.
4. Reinstall the fuel cap.
5. Move the unit at least 30 ft. (9.1 m) from the fueling source and
site before starting the engine.
NOTE: Dispose of the old gasoline in accordance to Federal, State
and Local regulations.
equivalent, will inhibit corrosion and minimize the formation of gum
deposits. Using a fuel additive can keep fuel from forming harmful
deposits in the carburetor for up to six (6) months. Add 0.8 oz. (23 ml.)
of fuel additive per gallon of fuel according to the instructions on the
container. NEVER add fuel additives directly to the unit's gas tank.
WARNING: Add fuel in a clean, well ventilated outdoor
area. Wipe up any spilled fuel immediately. Avoid creating
a source of ignition for spilt fuel. Do not start the engine
until fuel vapors dissipate.
Fig. 4
Fuel Cap
Fuel Tank
Gas Can Spout
Unleaded
Gasoline
WARNING: Gasoline is extremely flammable. Ignited
vapors may explode. Always stop the engine and allow it to
cool before filling the fuel tank. Do not smoke while filling the
tank. Keep sparks and open flames at a distance from the
area.
WARNING: Remove fuel cap slowly to avoid injury from
fuel spray. Never operate the unit without the fuel cap
securely in place.
Fig. 2
Oil Fill
Oil Fill Plug/Dipstick
Oil Fill Hole
Fig. 3
O-Ring
Fig. 5
