17 ‘05 - ‘06 Tacoma (W/ O.E. Hitch) - 3” Kit 5613

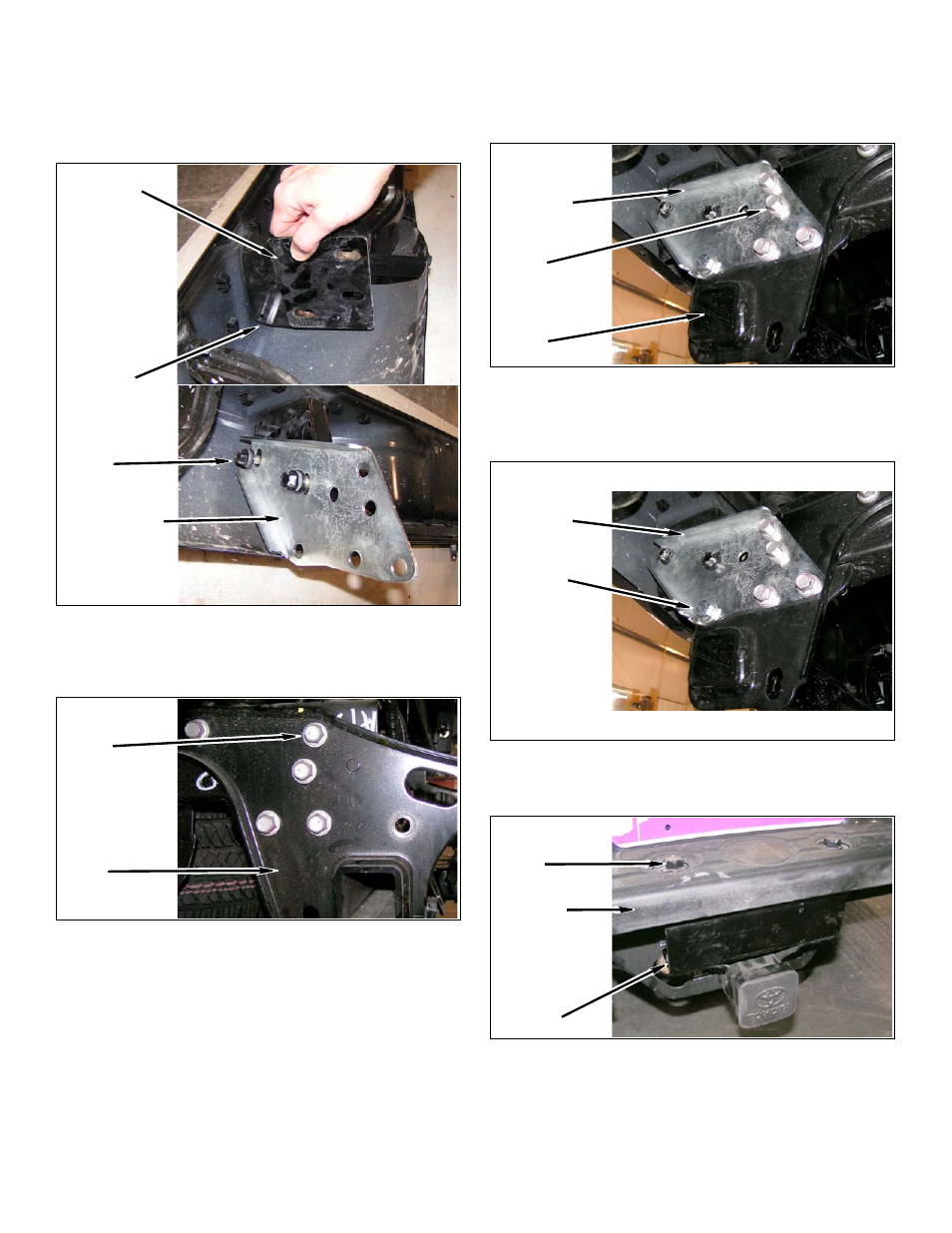

b. Apply a small amount of kit Loctite® onto
threads of two factory bolts and install kit
bracket (rear bumper, passenger) and kit
bracket (bumper, spacer) to passenger side
bumper with two factory bolts. DO NOT
TIGHTEN.
c. Repeat above step for driver side.
d. Remove eight factory bolts from O.E. trailer
hitch and frame rails.
Factory
Bolts
Kit Bracket
(Rear
Bumper,
Passenger)
Bumper
Kit Plate
(Rear
Bumper,
Spacer)
Factory
Bolts
O.E.
Trailer Hitch
e. Apply a small amount of kit Loctite® onto
threads of eight factory bolts and install rear
bumper and kit brackets (rear bumper) onto
O.E. trailer hitch with eight factory bolts. DO
NOT TIGHTEN.
f. Install two kit brackets (rear bumper) onto O.E.
trailer hitch with two kit bolts (9/16” x 1-1/2”),
four kit washers (9/16” SAE), and two kit nuts
(9/16” stover). DO NOT TIGHTEN.
g. Install kit bracket (rear bumper, middle) onto
rear bumper with two factory bolts and nuts. DO
NOT TIGHTEN.
O.E.
Trailer
Hitch
Factory
Bolts
Kit Bracket
(Rear
Bumper)
Kit Bracket
(Rear
Bumper)
Kit Bolt
(9/16” x
1-1/2”),
Kit Washers
(9/16” SAE),
Kit Nuts
(9/16” Stover)
Factory
Bolts
Bumper
Kit Bracket
(Rear
Bumper,
Middle)
