‘05 - ‘06 Tacoma (W/ O.E. Hitch) - 3” Kit 5613

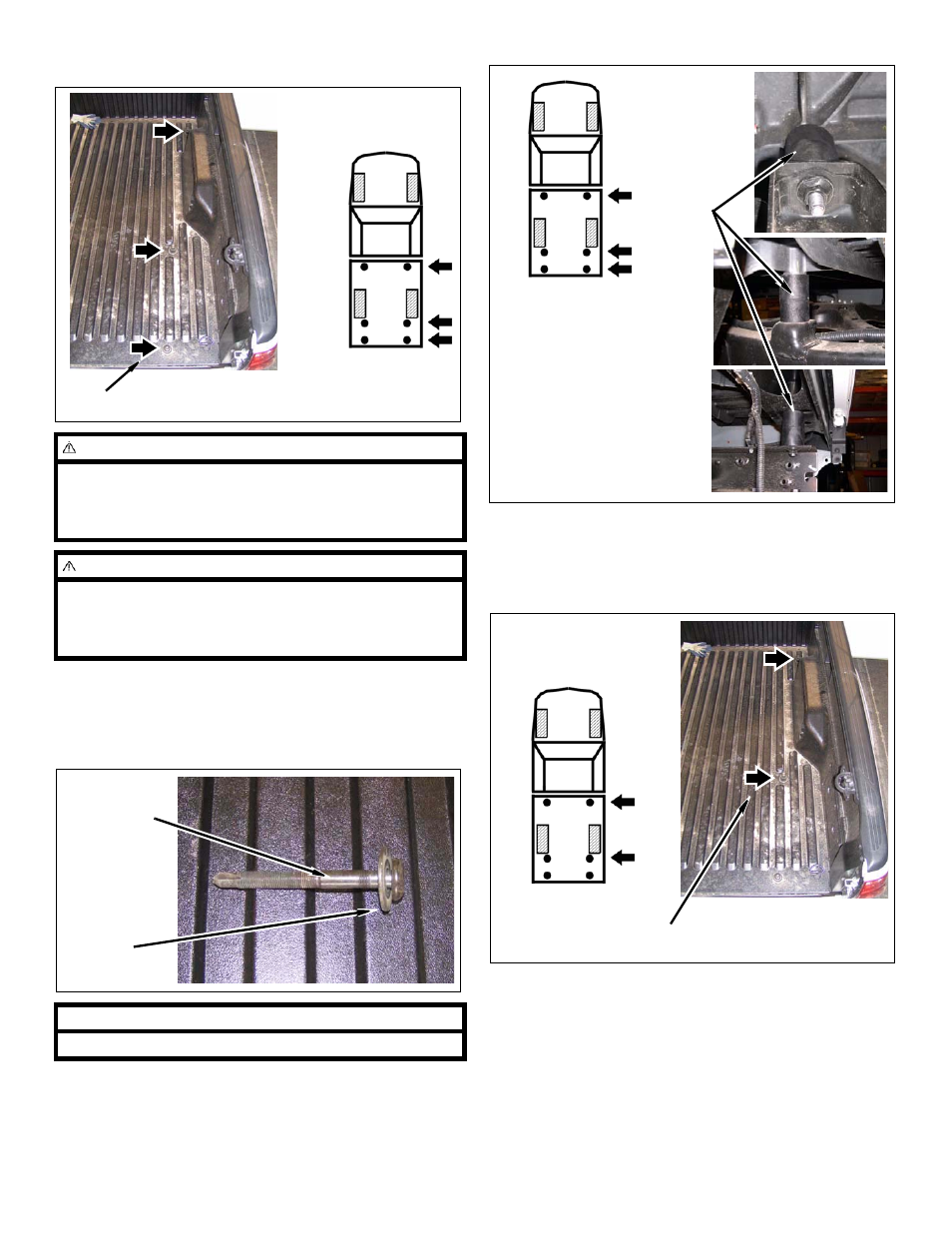

2. Remove bolt from each bed mount on passenger
side.
3. Bed passenger side
a. Remove captive washers from each factory bed
mount bolt.
b. Using a hydraulic jack and a wood block, slowly
lift passenger side of bed a little more than 3”.
WARNING
Use extreme caution when lifting the bed from the
frame. To prevent serious personal injury, ensure the
lifting device is securely placed. Keep your hands out
from between the bed and frame.
CAUTION
To prevent damage to the vehicle while lifting the bed,
continually check hoses, wires, brake lines, etc. to
ensure everything is flexing properly and not binding.
Ensure clearance between bed and cab is maintained.
NOTE
The factory captive washers will be used with kit bolts.
Remove Bolts
At These Mounts
Bolts
Factory Bed
Mount Bolt
Captive
Washer
c. Install kit blocks (2” dia.) on frame mounts.
d. Lower bed onto kit blocks.
e. At front and mid bed mounts, install kit bolts
(M12-1.25 x 160mm) and factory captive wash-
ers. DO NOT TIGHTEN.
Kit Block
(2” Dia.)
Front Bed
Mount
Mid Bed Mount
Rear Bed Mount
Install Kit Bolts
At These Mounts
Kit Bolts
(M12-1.25 x 160mm)
