8 Port Ethernet Smart Switch With Fibre Uplink
Tyco Electronics Page 8

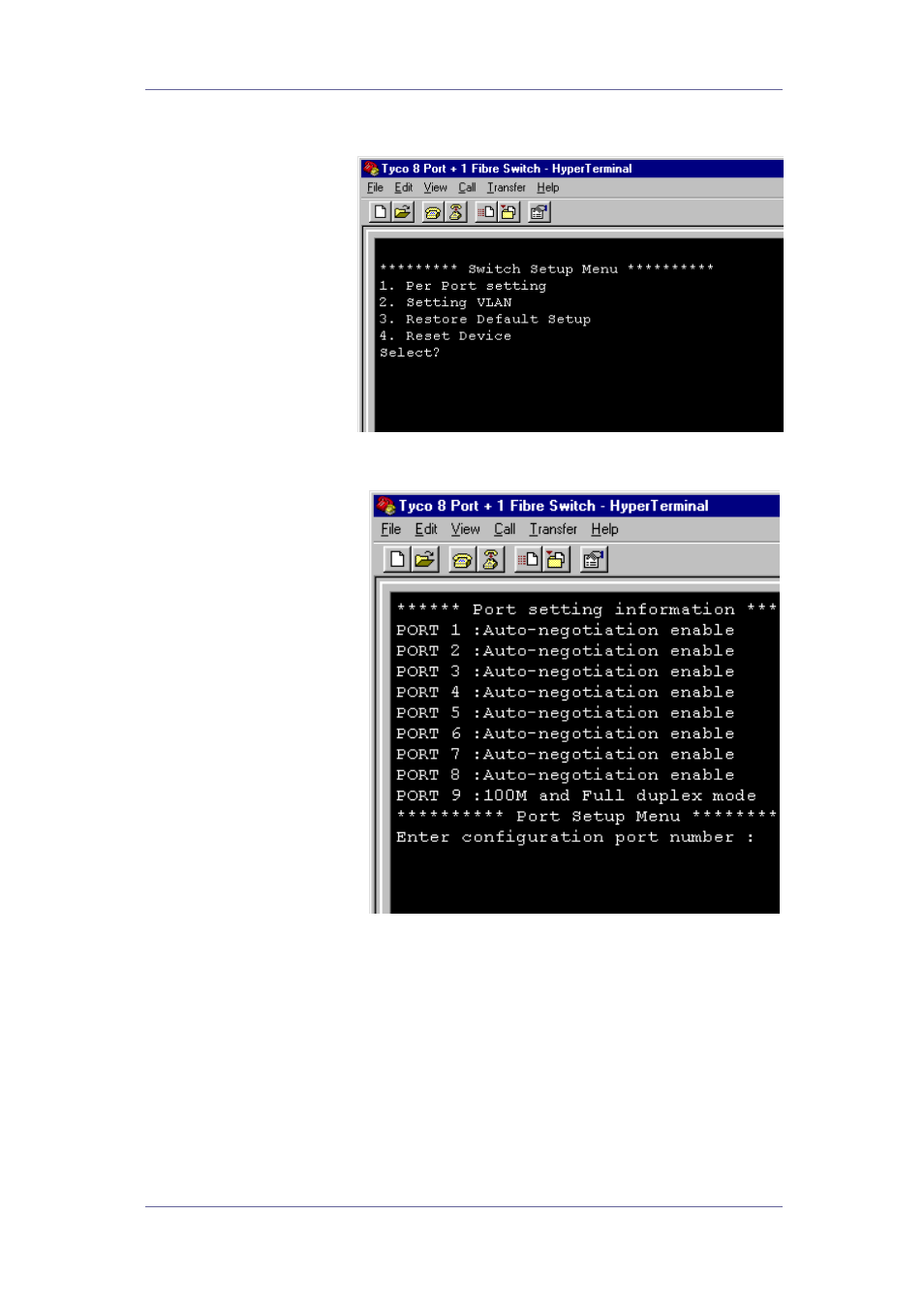

This entry screen is
displayed when the
connection is first
established with the
switch. Select the
required option.
Note that the options
3 and 4 are
immediate and do
not have any
confirmation steps.
Figure 4 - Entry Screen
The port setting
screen is selected
by entering 1 in the
entry menu.
The screen then
shows the current
state of all the
switch ports similar
to the image to the
right.
To change a port
setting, enter the
port number (1..9)
and a new screen is
displayed similar to
Figure 6 on the next
page.
Figure 5 – Port Setting Screen - 1
