Assembly – True Fitness True 400 User Manual
Page 9

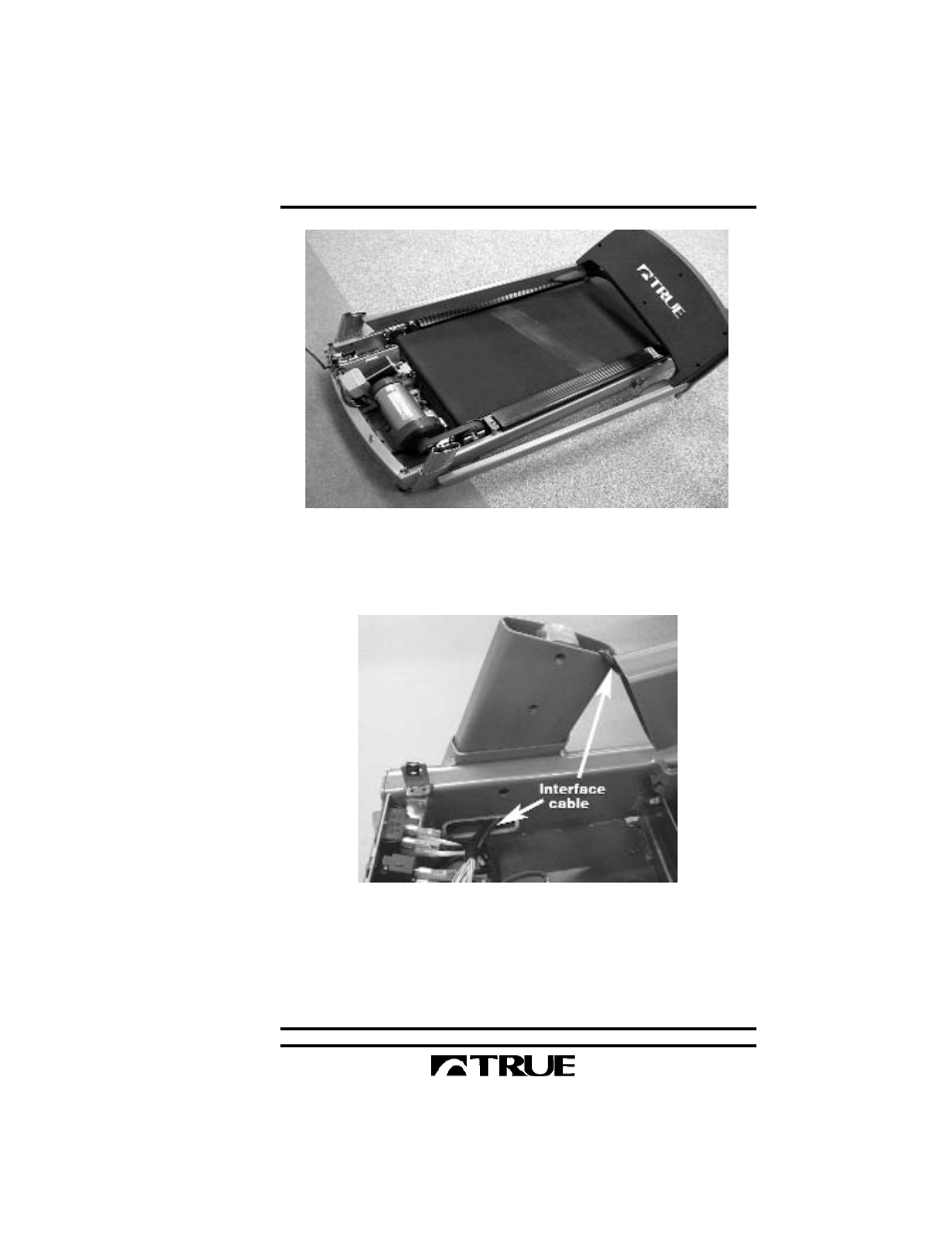

Detach the rubber band from the upper wiring harness and
route the cable down the pedestal leg support and out the
bottom hole as shown.
Step 4: Tilt the pedestal up and slide it down the pedestal
supports, being careful not to pull out the upper wiring
harness. Plug the upper wiring harness into the motor
controller. Install the four 5mm x 15mm screws into the
pedestal legs.
Assembly
6
