Page 7
7
NOTE: To control the function in a working station, need to collocate together with optional Chassis
System and Management Module.

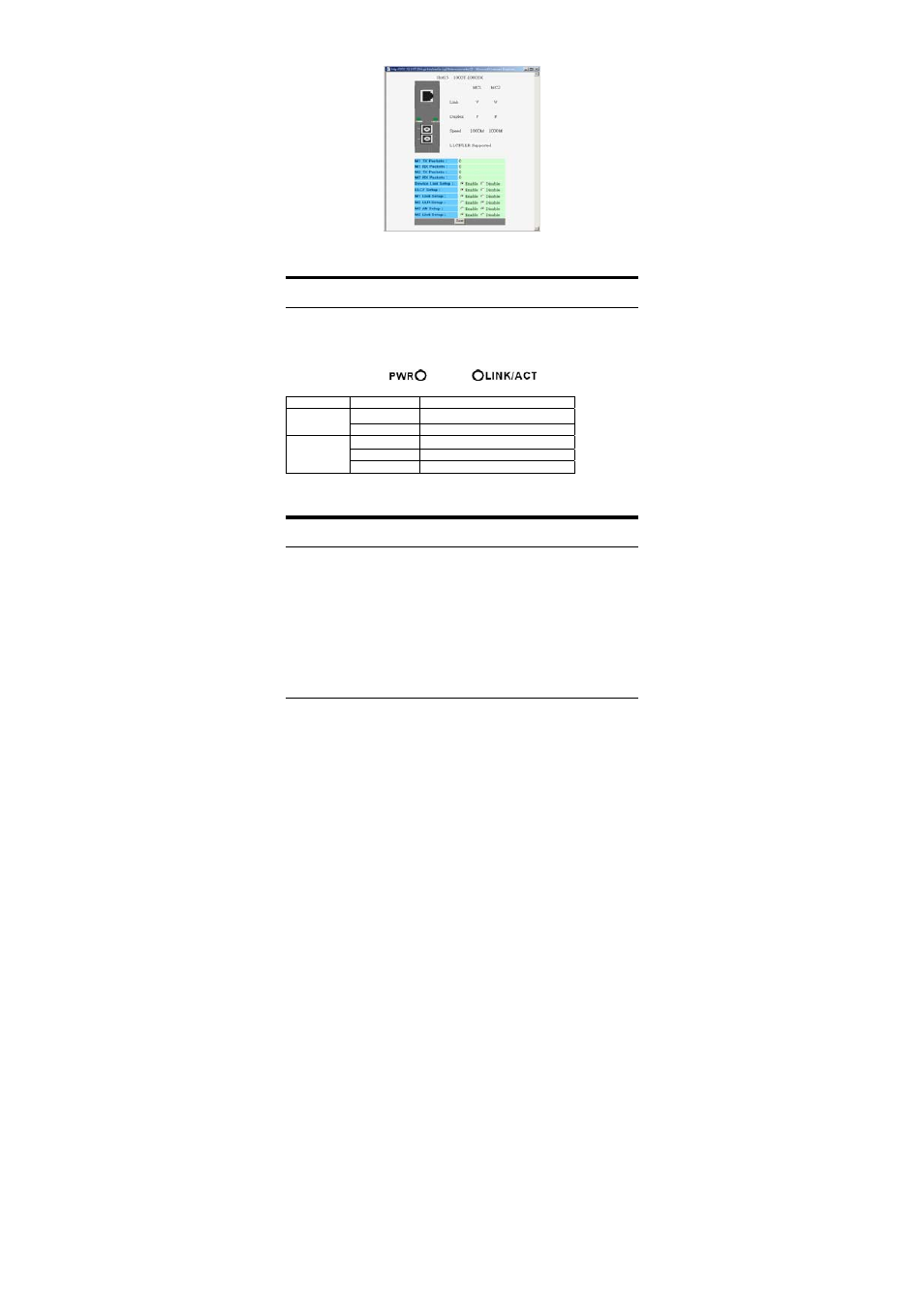

LED Indicator
The LED indicators give you instant feedback on status of the
converter:
LEDs State
Indication
Lights on
Power on
Power
(PWR)
Lights off
Power off
Lights on
Linking
Lights Blinking
Data transmitting and receiving
Link and
Activity
(LINK/ACT)
Lights off
Not Linking
Link Pass Through Function
LLCF (Link Loss Carry Forward)
When a device connected to the converter and the TP line loss
the link, the converter’s fiber will disconnect the link of
transmit, so that the other ends will know that there is a
linkage error on this end. And when the Fiber line loss the
link, the converter’s TP will disconnected, and the other end
will know that there is linkage problem exist.
There is a default LLCF setting on this converter.
