Internal Switches
2-9 Nomenclature and Use of Each Component
2.3.5 Outline Emphasis Circuit ON/OFF Switch SW2
Switch SW2 controls the outline emphasis circuit on the MC-780PIH. Do not
move this switch on the MC-780PIA. The outline emphasis circuit makes the
image easier to see by emphasizing the image outline when the camera is
used for surveillance. Table 2–12 lists the switch positions and functions, and
Figure 2–10 shows the switch.
Table 2–12.Outline Emphasis Circuit ON/OFF Switch SW2
Switch Position Operation
Upper Outline emphasis ON
Center Not used
Lower Outline emphasis OFF

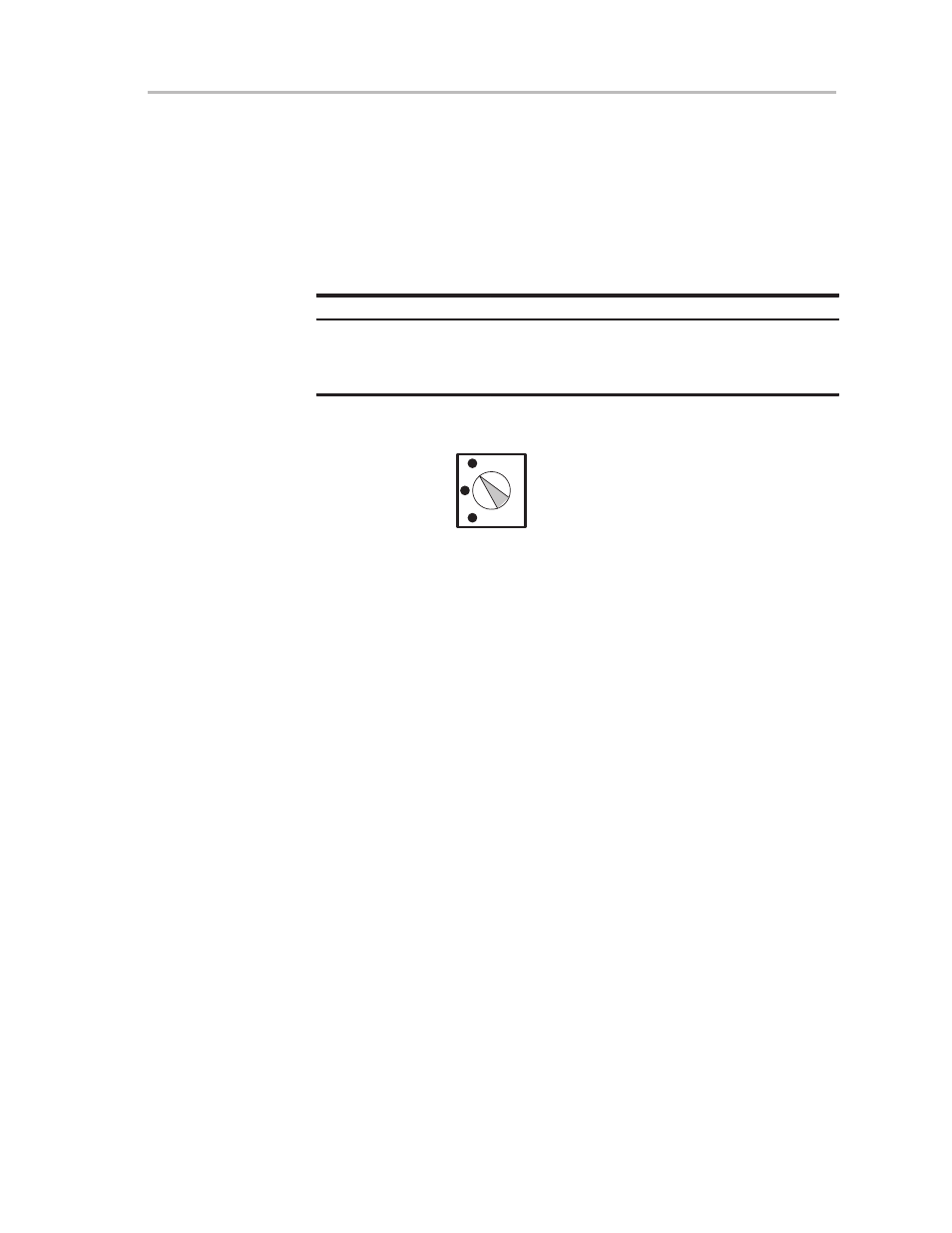

Figure 2–10. Outline Emphasis Circuit ON/OFF Switch SW2
Upper
Center
Lower
Note: This function is only for MC-780PIH.
