Ignition Key
Oil Fill
Primer
Gasoline
Cap
Electric
Starter
Outlet
Recoil
Starter
Oil Drain
Choke
Control
Throttle
Control
Electric
Starter
Button
Muffler
Track Drive
Control/Auger
Control Lock
Headlight
Chute Assembly
Chute
Cleanout
Tool
Auger
Skid Shoe
Shift Lever
Chute Directional Control
Auger Control
Track Steering Control
Heated Grips
Track Lock Lever
Normal Snow
Packed Snow
Transport

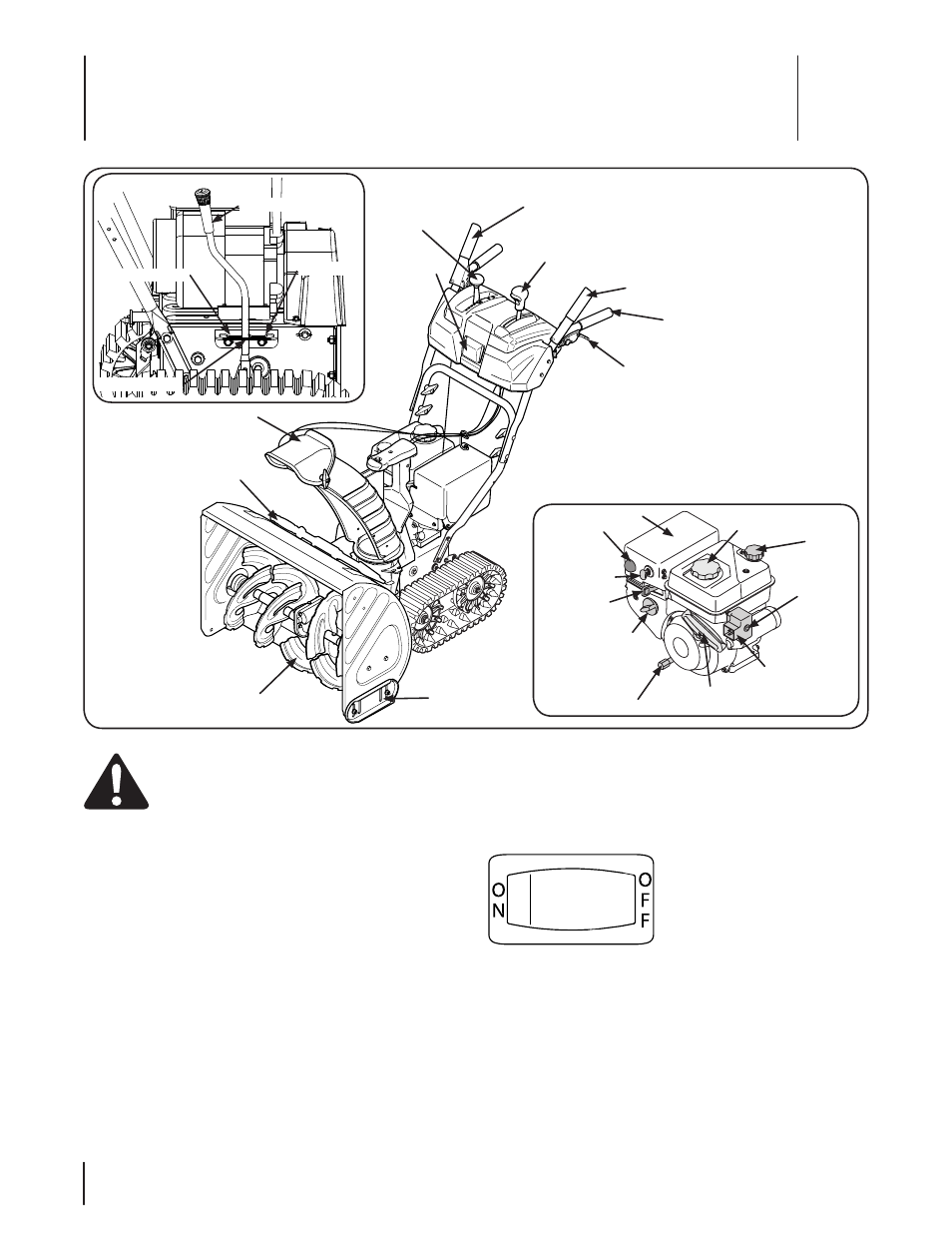

Figure 4-1
WARNING! Read, understand, and follow all
instructions and warnings on the machine and in
this manual before operating.
Shift Lever
The shift lever is located in the right side of the handle panel and
is used to determine both the ground speed and direction of
travel. It can be moved into any of eight positions.
Forward
Your snow thrower has six forward (F) speeds, with position
number one (1) being the slowest.
Reverse
Your snow thrower has two reverse (R) speeds, with position
number one (1) being the slowest.
NOTE: Always release the drive control before changing
speeds.
Headlight
The headlight is on whenever the engine is running.
Heated Grip
To activate the heated grips, move the switch found on the rear
of the dash panel into the ON position.
Skid Shoe
The space between the shave plate and the ground can be
adjusted by positioning the skid shoes. Refer to Skid Shoe
Adjustment on page 10.
Controls and Features
4
