Loudspeaker Connectors (J100 − J600)
2-5 System Interfaces
2.3 Loudspeaker Connectors (J100 − J600)
Both positive and negative speaker outputs are floating and may
not be connected to ground (e.g., through an oscilloscope).

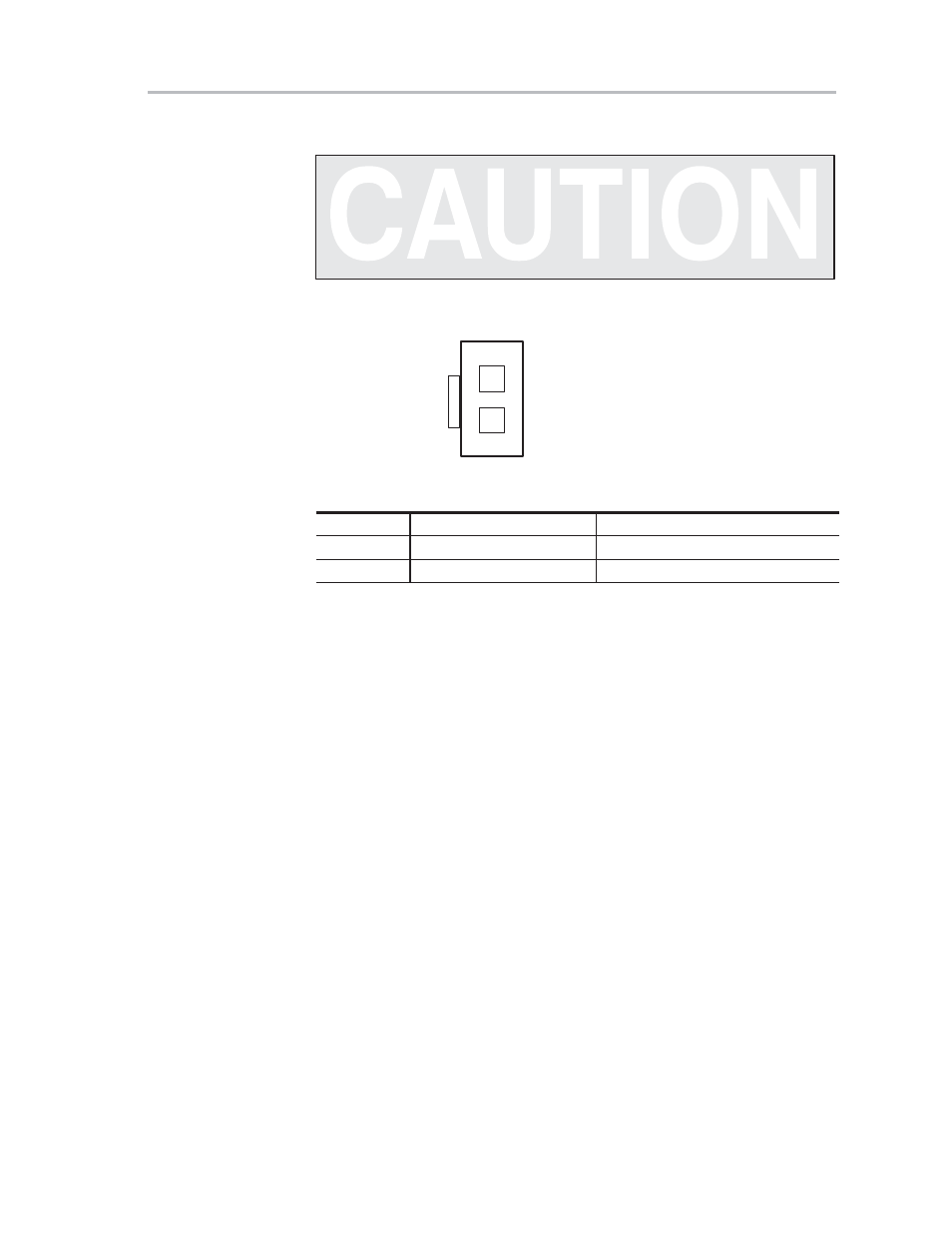

Figure 2−4. J100 − J600 Pin Numbers (PCB Connector Top View)
2
1
Table 2−5. J100− J600 Pin Description
Pin Number Net-Name at Schematics Description
1 OUT−1 Speaker negative output
2 OUT−2 Speaker positive output
