4681FXI Ð Upgrading a Phaser 220e to a Phaser 220i
1.
Power down the printer. Leave the power cord plugged in to provide
a ground path for static discharges. Remove the interface cables.
2.
Remove the top-rear and rear plastic cabinet panels.
3.
Remove the screws securing the I/O board (and its metal rear panel
plate)to the card cage.
4.
Disconnect the I/O board's ribbon cable. Remove and save the I/O
board (and rear plate) to return to Tektronix.

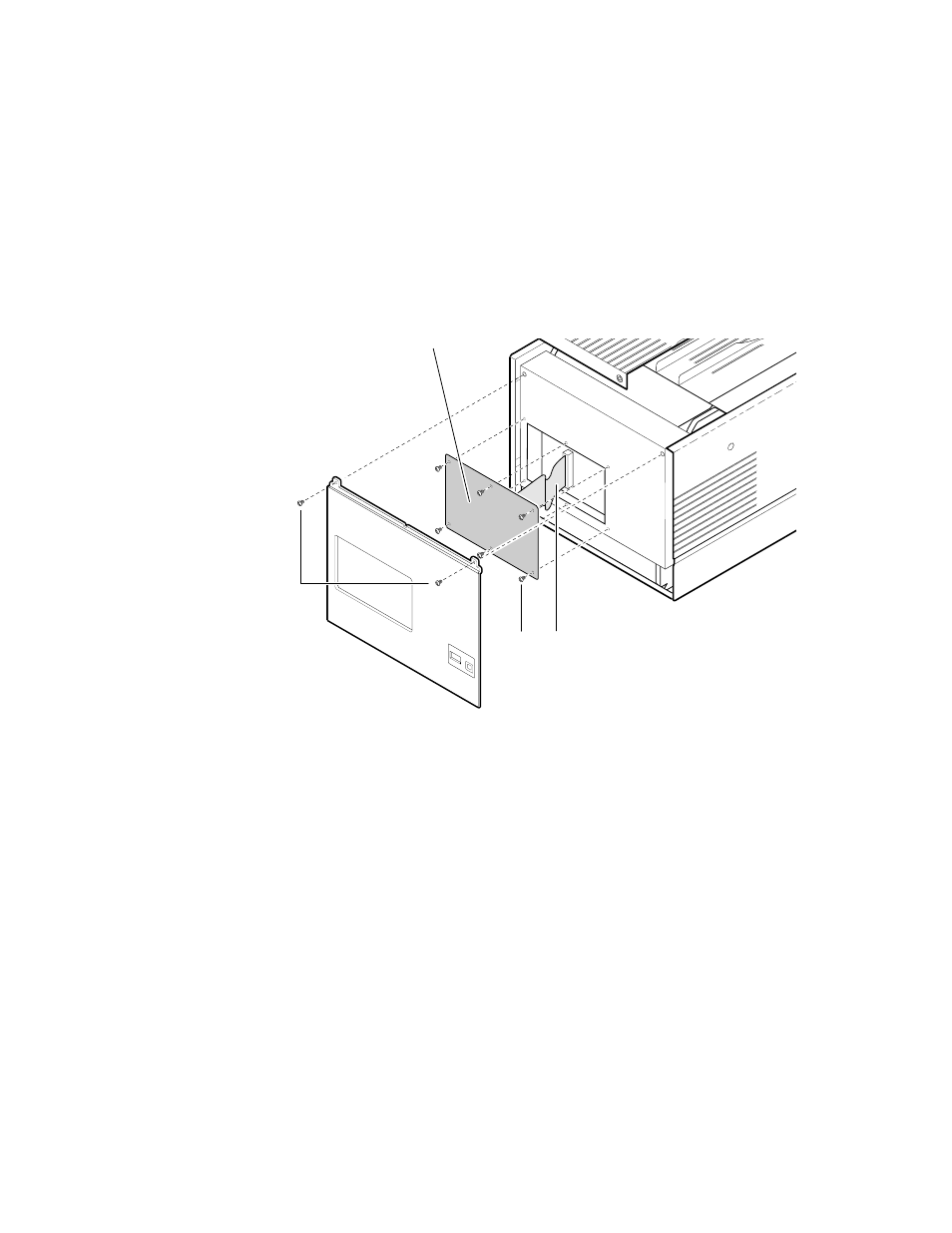

I/O board
4
3
2
