3. INSTALLATION PROCEDURE
3.2 Connecting the AC Plug
3-2
EO1-12037
3.2 Connecting the AC Plug

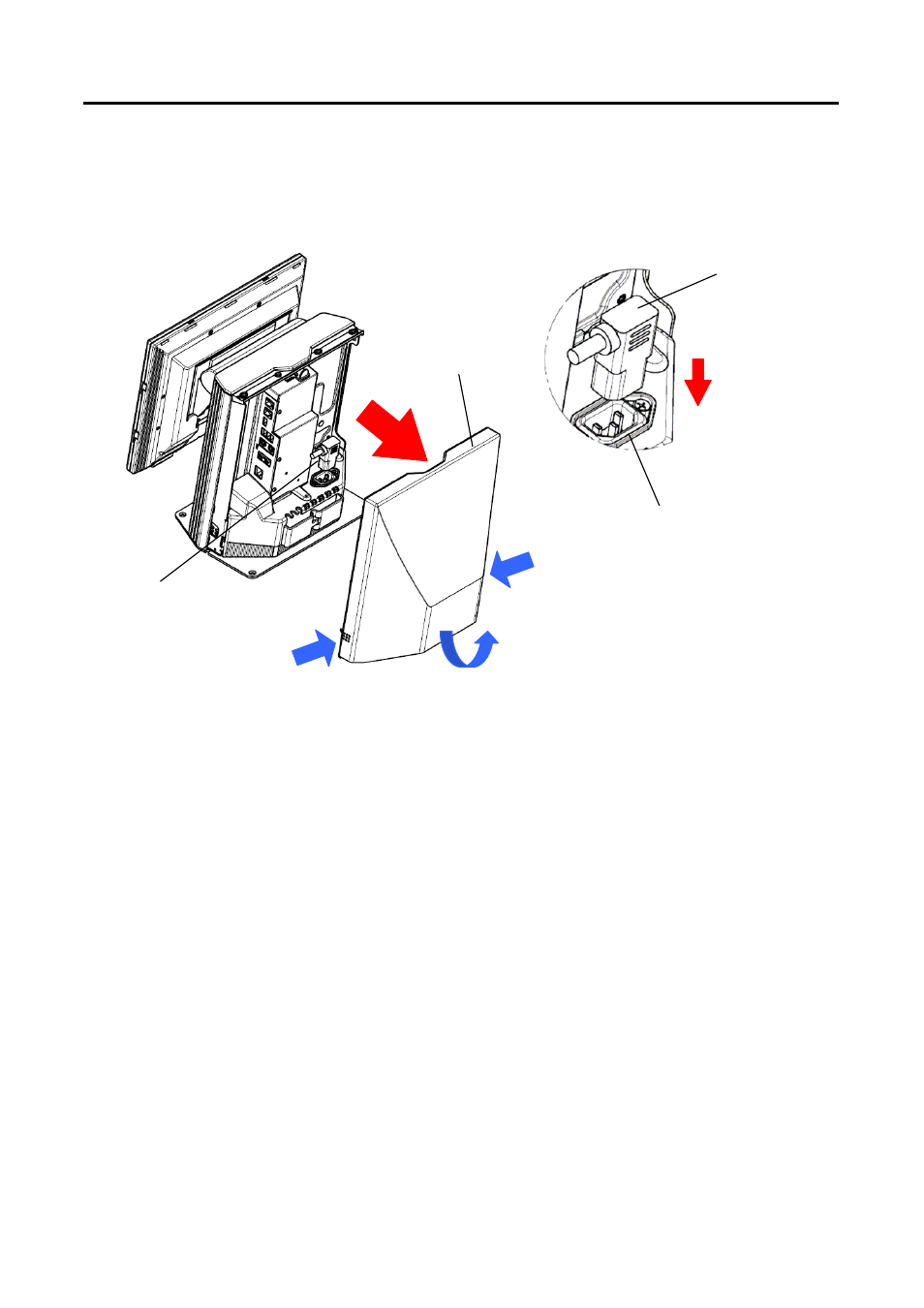

1. Push on both sides of the molded Tower (TWR) Tail Cover to remove it from the system in order to
gain access of the AC inlet.
2. Fully insert the Power Cord Plug into the Inlet of the POS terminal.
NOTE: The Power cord is not included in the carton. Please prepare it separately from local dealer.
Power
Cord Plug
Push
Push
Lift
Inlet
Power
Cord Plug
TWR Tail
Cover
