4-way Air Discharge Cassette Type
Installation Manual
EN
„ Installation of ceiling panel
(Sold separately)
Install the ceiling panel according to Installation
Manual attached with it after piping/wiring work has
completed.
Check that installation of indoor unit and ceiling
opening part is correct, and then install it.
REQUIREMENT
• Joint the connecting sections of ceiling panel,
ceiling surface, ceiling panel and indoor unit closely.
Any gap between them will cause air leakage and
the generate condensation or water leakage.
• Remove the adjust corner caps at the four corners
of the ceiling panel, and then install the ceiling panel
onto the indoor unit.
• Make sure that the claws of the four adjust corner
caps are securely fit.
* Improper fitting of the claws may cause water
leakage.
„ Installation of remote control
(Sold separately)
For installation of the wired remote control, follow the
Installation Manual attached with the remote control.
• Pull out the remote control cord together with the
refrigerant pipe or drain pipe.
Be sure to pass the remote control cord through
upper side of the refrigerant pipe and drain pipe.
• Do not leave the remote control at a place exposed
to the direct sunlight and near a stove.

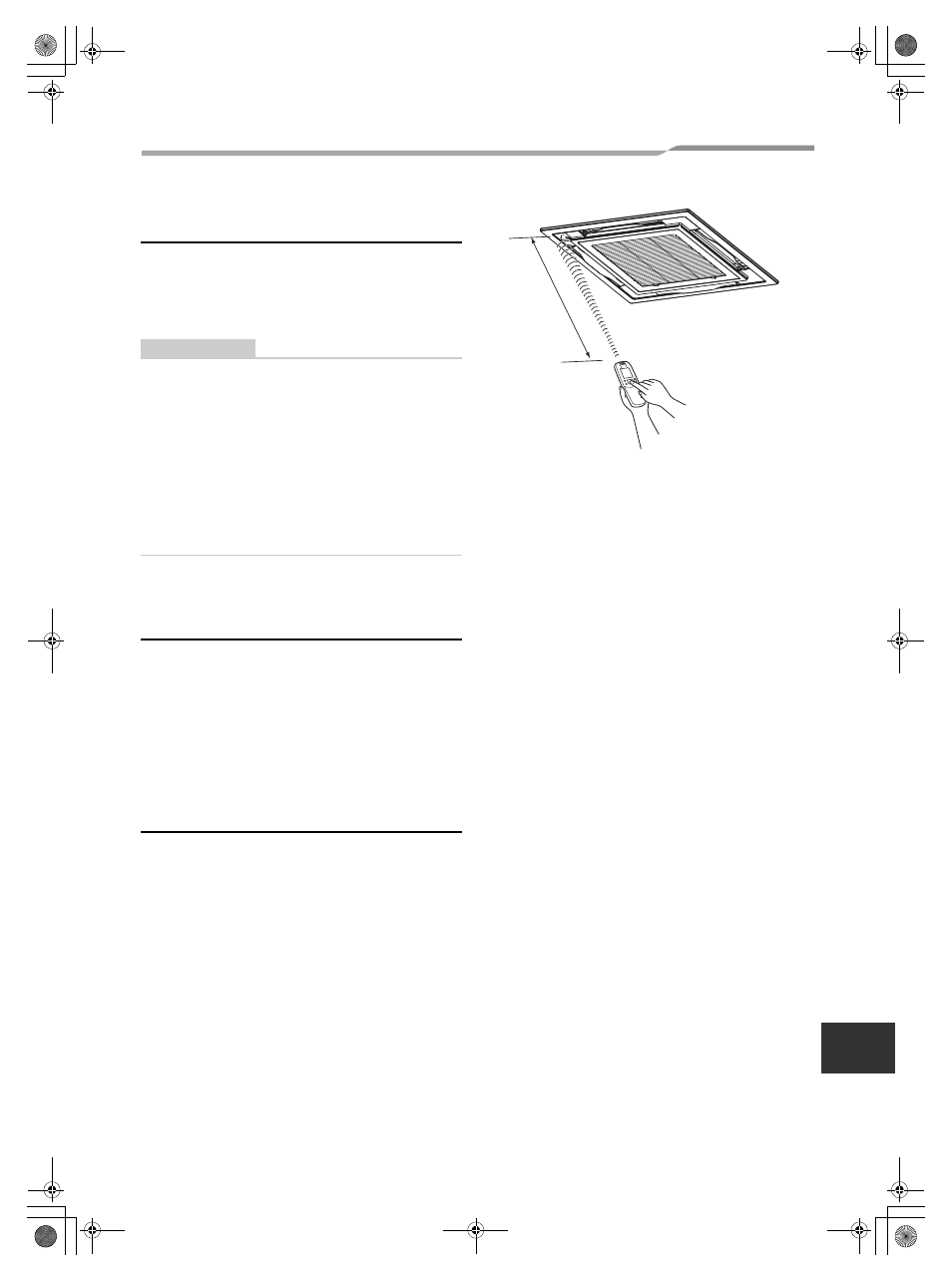

„ Wireless remote control
The sensor of indoor unit with wireless remote control
can receive a signal by distance within approx. 23’ (7
m). Based upon it, determine a place where the remote
control is operated and the installation place.
• Operate the remote control, confirm that the indoor
unit receives a signal surely, and then install it.
• Keep 3’3” (1 m) or more from the devices such as
television, stereo, etc.
(Disturbance of image or noise may generate.)
• To prevent a malfunction, select a place where is not
influenced by a fluorescent light or direct sunlight.
• Two or more (Up to 6 units) indoor units with wireless
type remote control can be installed in the same
room.
