7

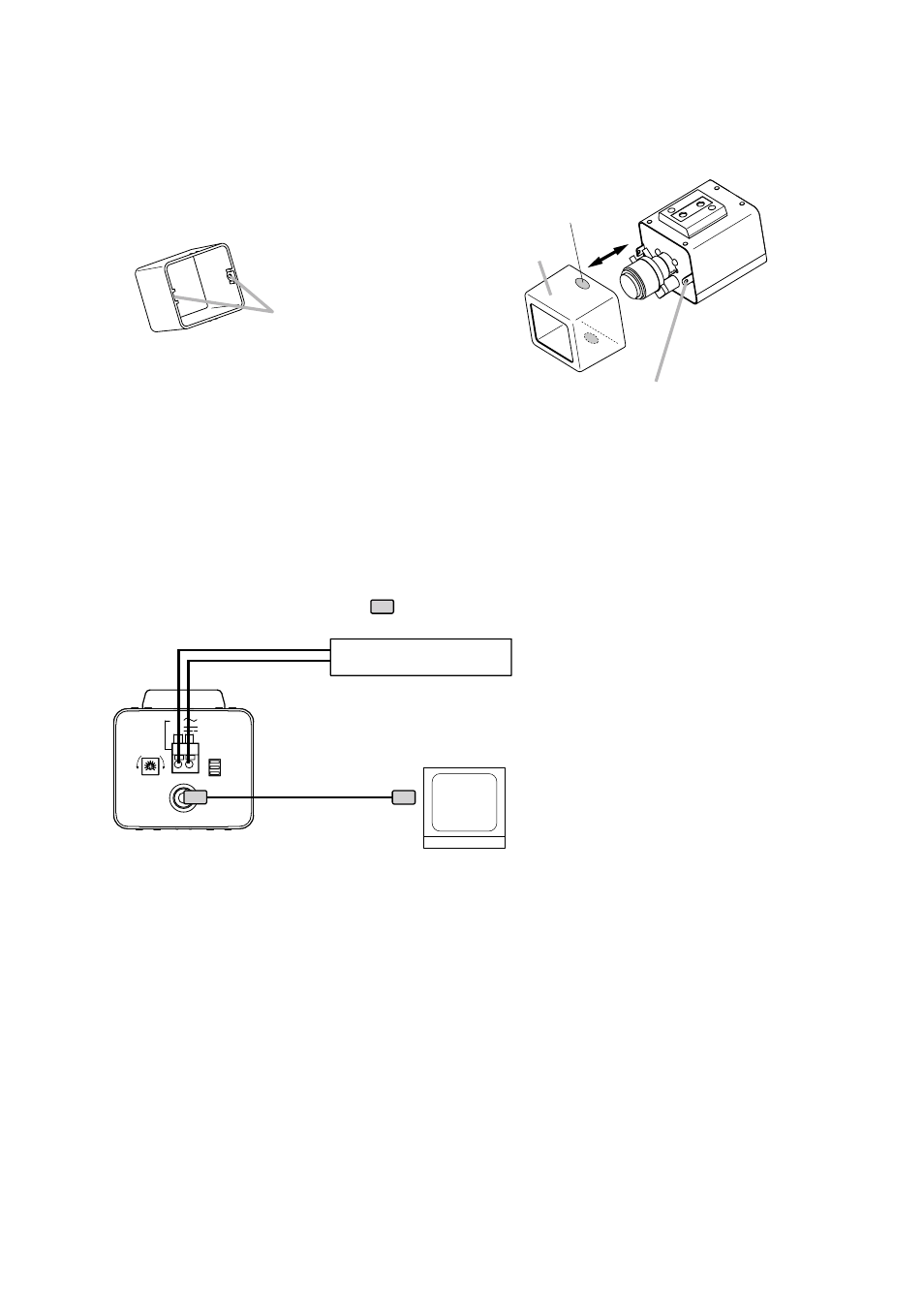

5.1. Lens Cover Attachment and Detachment
To detach, lightly press on both the top and bottom of the lens cover and pull it forward.
To attach, align the clips inside the lens cover with the corresponding camera tabs, then press on the cover.
Tabs (left and right) fit into cover clips,
which snap into holes when correctly attached.
Clips
Inside of the lens cover
Lens cover
Press on this section (top and bottom, 2 places)
and pull forward to detach the lens cover.
12V
24V
+ -
IRIS
L H
OFF ON
VIDEO OUT
FOUCUS ADJ
BLC
SHUTTER
Video output
: BNC plug
24 V AC or 12 V DC
Use the external power supply unit of the following rating when the camera is operated on 12 V DC.
12 V DC, over 1.0 A
Monitor
Video input
6. CONNECTIONS
Note: If the Video output is not terminated at 75
Ω
, video pictures are not properly displayed. Make sure that
the output has been terminated at 75
Ω
at the connected monitor or switcher.
