Nomenclature – TOA Electronics C-CV14-2 NTSC User Manual
Page 5
5

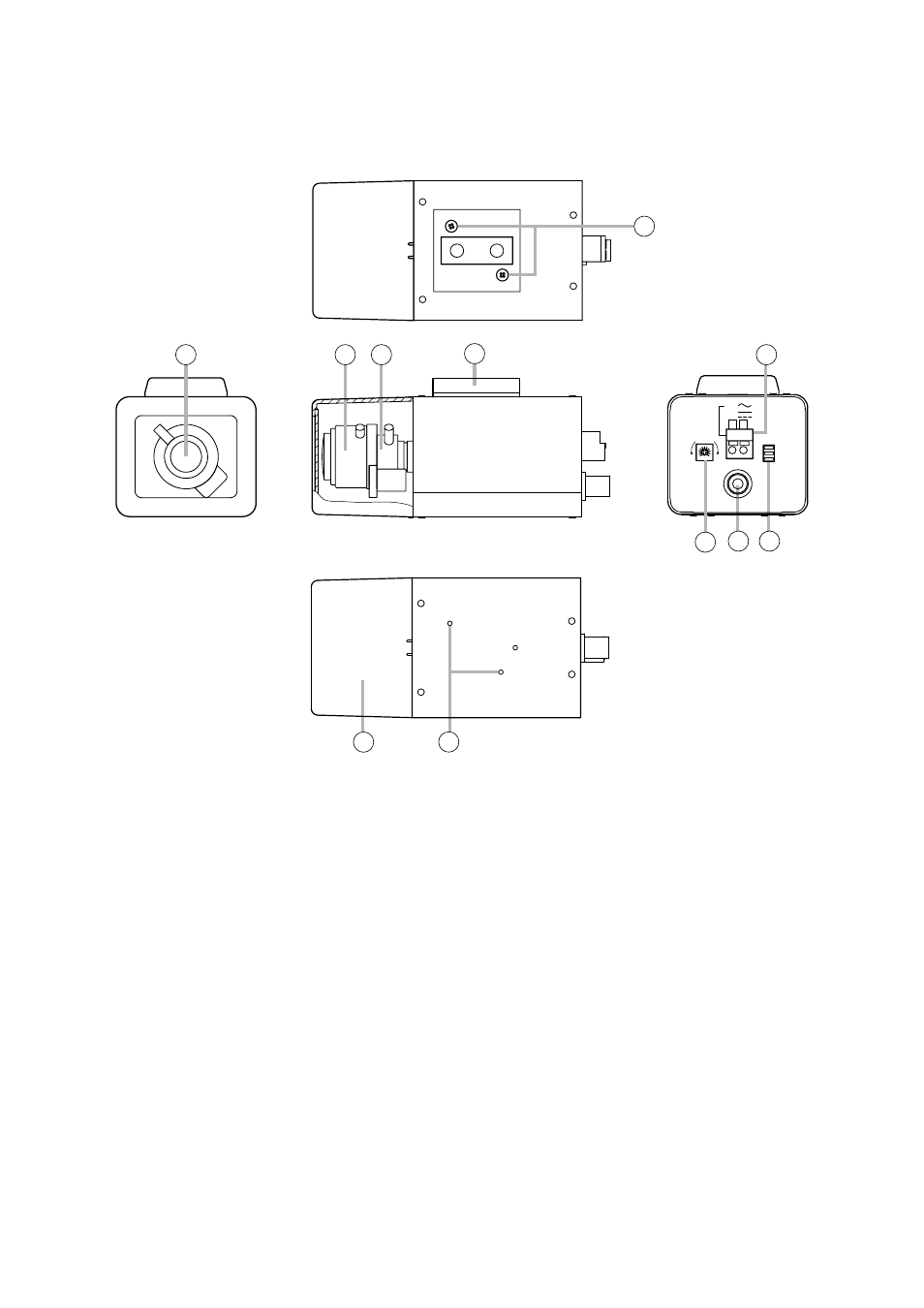

(1) Vari-focal lens
(2) Focus ring
(3) Zoom ring
(4) Camera mount
(5) Camera mount fixing screw
(6) Power input terminal
(24 V AC or 12 V DC)
(7) Iris control
(8) Video output terminal (BNC)
(9) Mode setting switch
(10) Lens cover
(11) Camera mount fixing hole
Note
Fixing holes (11) are provided in both the top and bottom panels.
12V
24V
+
-
IRIS
L
H
OFF
ON
VIDEO OUT
FOUCUS ADJ
BLC
SHUTTER
1
2
3
4
5
6
7
8
9
10
11
4. NOMENCLATURE
