6

1. Mount the optional camera mounting bracket to a ceiling or wall.

Using an electrical box, fix the camera mounting bracket with its supplied screws. Run the coaxial cable
through the hole in the bracket.

2. Set the camera mounting bracket securely in the threaded hole in the camera mount rotating the bracket’s

pedestal.

Notes
• The camera mount can be mounted to both the top and bottom of the camera. Attach the bracket to either

side depending on installation conditions.

• Use the camera mount fixing screw to attach or detach the camera mount.

3. Set the camera orientation, and secure the camera.

After setting the camera orientation, rotate the lock lever to secure the camera.

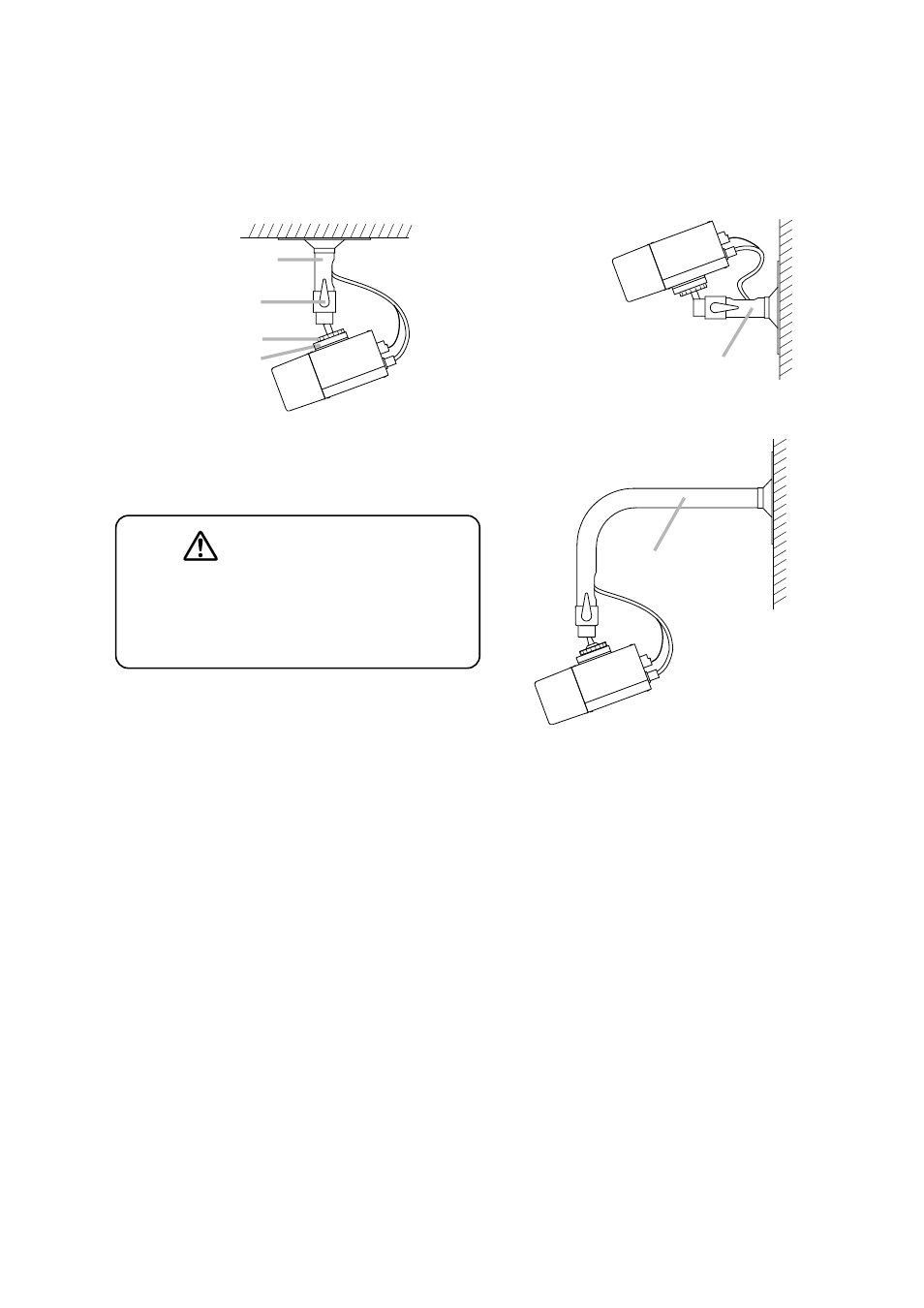

[Ceiling mounting example]

[Wall mounting example]

Camera mount

Ceiling panel

Camera mounting bracket
(optional)

Lock lever

Pedestal

Wall

Camera mounting bracket
(optional)

Camera mounting bracket
(optional)

Wall

5. INSTALLATION

Install the unit only in a location that can
structurally support the weight of the unit and the
mounting bracket. Doing otherwise may
result in the unit falling down and causing
personal injury.

WARNING
