TL-WR941N/TL-WR941ND Wireless N Router
-5-
1.4.2 The Rear Panel

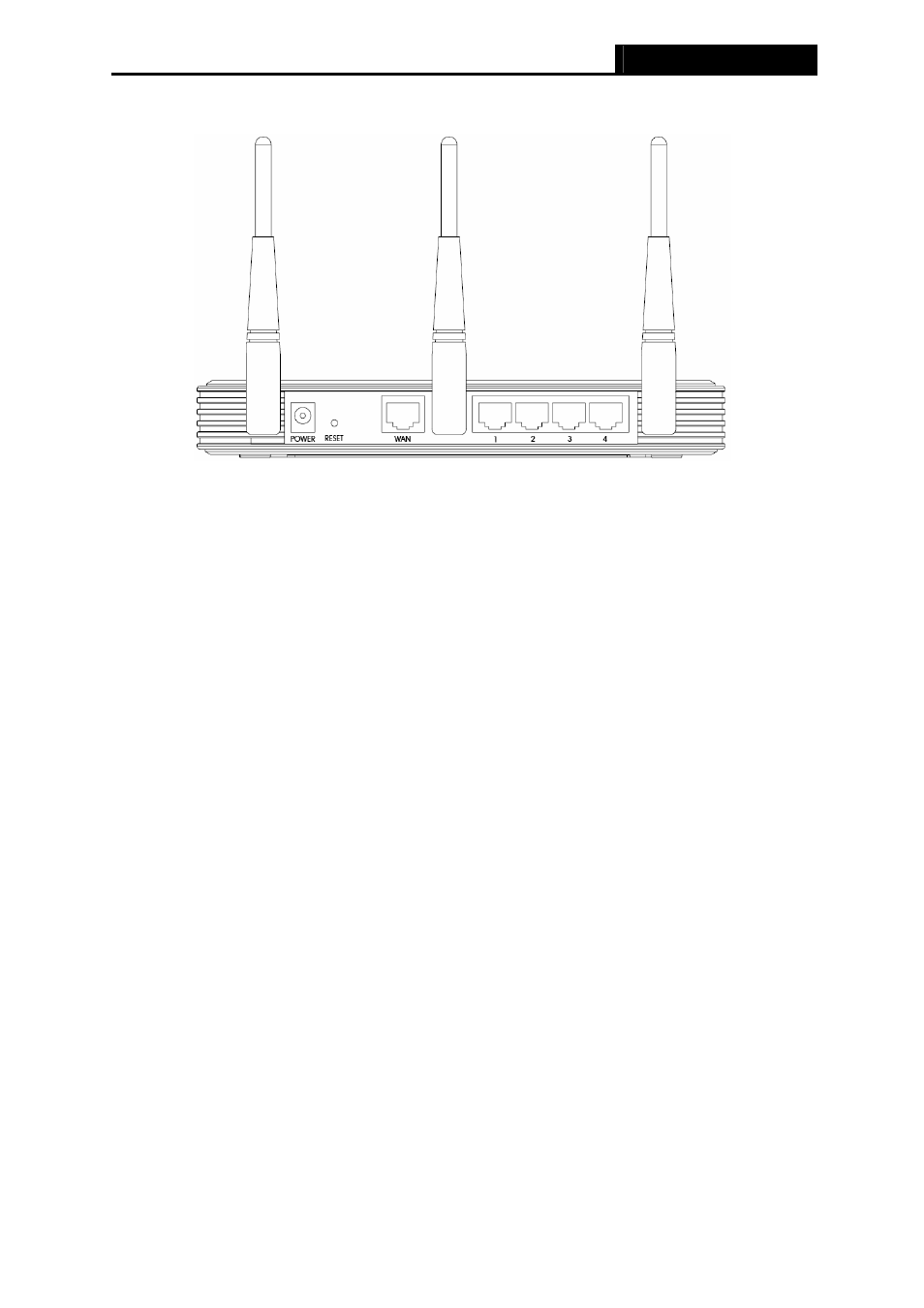

Figure 1-2 Rear Panel sketch
The following parts are located on the rear panel (View from left to right).
¾ POWER: The Power socket is where you will connect the power adapter. Please use the
power adapter provided with this TL-WR941N/941ND Wireless N Router.
¾ RESET:
There are two ways to reset to the Router's factory defaults:
1) Use the Factory Defaults function on System Tools -> Factory Defaults page in the
Router's Web-based Utility.
2) Use the Factory Default Reset button: Press the Reset button for five seconds and then
wait for the Router to reboot.
¾ WAN: This WAN port is where you will connect the DSL/cable Modem, or Ethernet
¾ 1,2,3,4 (LAN): These ports (1, 2, 3, 4) connect the Router to the local PC(s)
¾ Wireless antenna: To receive and transmit the wireless data.
