11. PROGRAMMING PROCEDURES EM1-31064
11.18 TRANSFERRING LOGO DATA
11.18 TRANSFERRING LOGO DATA
Menu Page: 2
Item No.: 8
Logo data is created on a PC and stored into RAM through the CMT interface. Two different sizes of
logos, 320x118 dots and 256x64 dots, are available on the SL-9000 series. 64KB of RAM area is
secured for logo data, in which the maximum of 13 logos (320x118 dots) or 26 logos (256x64 dots)
can be stored. Before starting the following operation, set the initial setting #10-7 to 1.
Page 2
ENTER
8
ESC.
PROG.
Page 2
Main
Load a tape into
the CMT Loader

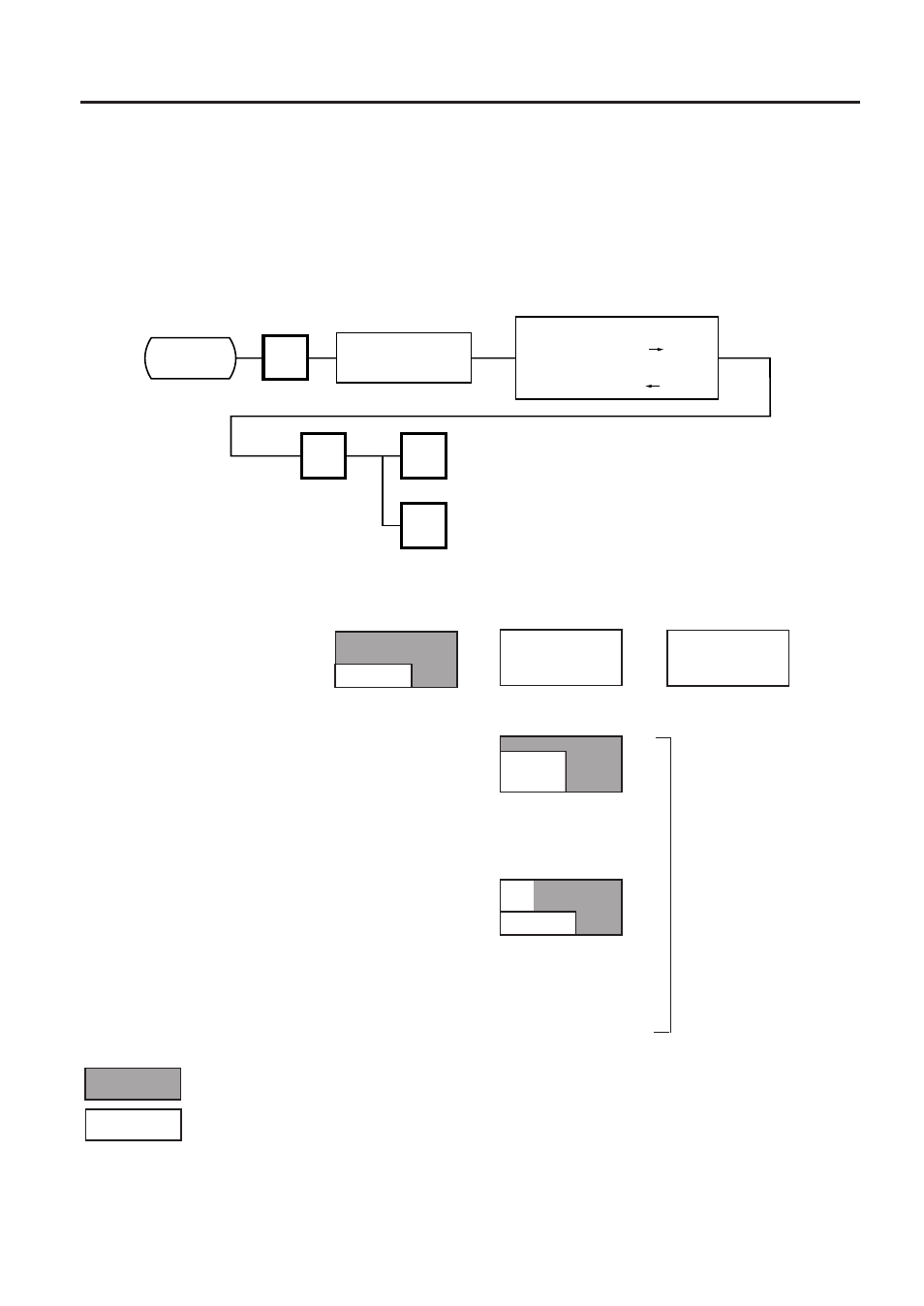

Select a transmission item.
1: SAVE(SL-9000 CMT)
2:VERIFY(SL-9000=CMT)
3:LOAD(SL-9000 CMT)
Print LOGO
(320 x 118 dots)
NOTE: Two sizes of logos are printed differently as follows:
: LOGO data
: Print/Display area
256
64
(Part of LOGO
is displayed)
1st LOGO
2nd LOGO
(Part of LOGO
is printed)
160
80
256
64
FSP LOGO
(Part of LOGO is
overlapped with
FSP print area)
104
118
SL-9000N only
