Elo TouchSystems 2200L User Guide 9
Connecting the Cables to the Touchmonitor and Computer

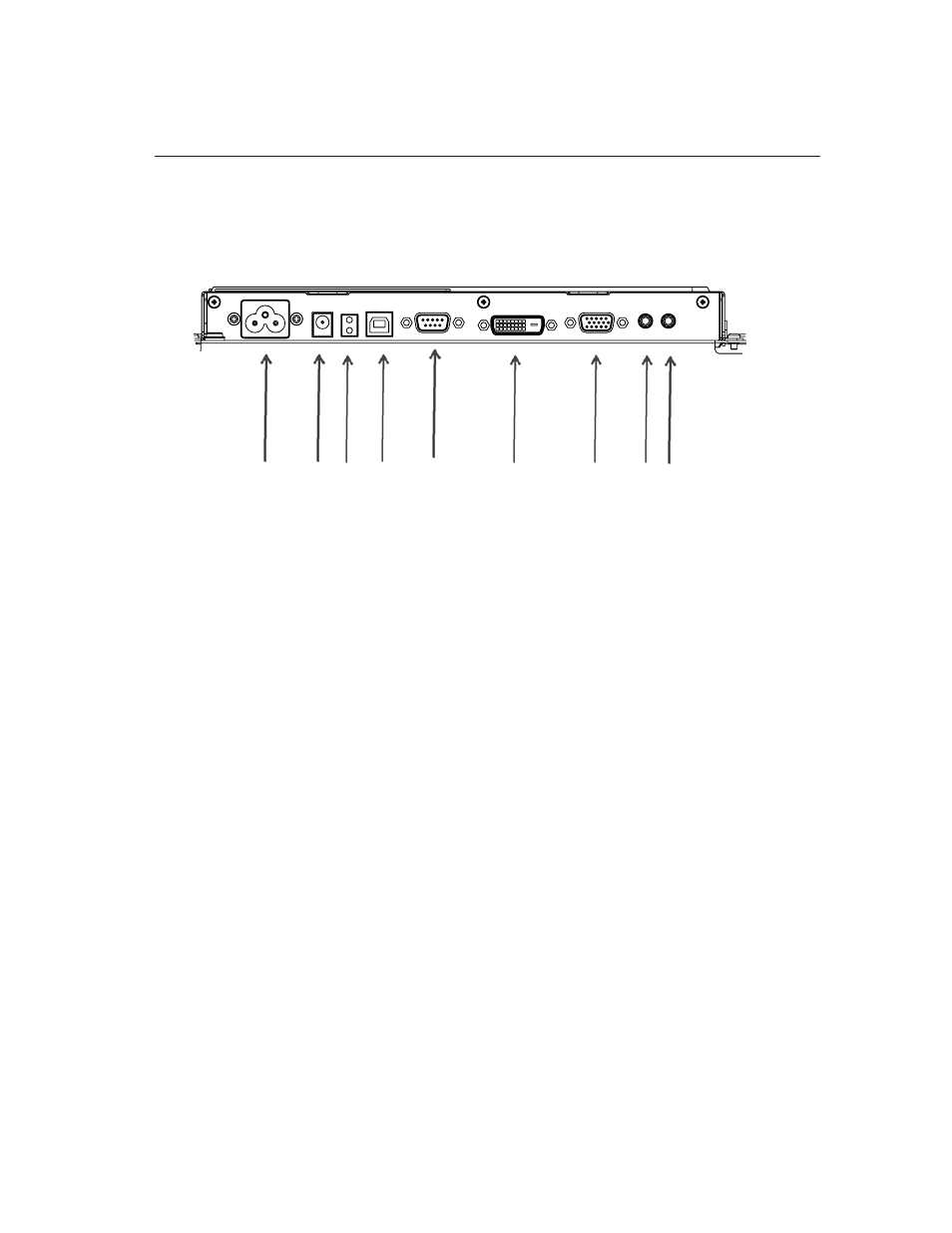

Connector Panel Underneath the Monitor
To connect the touchmonitor to the computer:
1 Tilt the monitor to reveal the connector panel in the recessed area
underneath the bottom edge of the monitor.
2 Connect the AC power cable to the connector panel and connect
the other end to the power outlet.
3 Connect either the USB cable OR the serial cable to the connector
panel. Note: Do not use both. This cable connects the
touchmonitor to your computer. Attach the other end to your
computer.
4 Connect the video cable (VGA) or the DVI-D cable to the connector
panel. Tighten by turning the two thumb screws clockwise to
ensure proper grounding. Connect the other end to your computer.
5 Connect the audio cable to the Audio Input on the connector panel
and connect the other end to your computer.
6 Press the power button on the side panel of the monitor to turn on
the monitor.
Power VGA DVI-D USB LED DC
in
Audio
Output
Audio
Input
Serial
