9
Wireless Utility Setting
With the Wireless Cardbus Card utility, users can configure all the
functions provided by the Wireless Monitor Utility. Double-click the
utility icon that appears in the taskbar.
The Wireless Monitor Utility includes seven tabs: Status,
Configuration, Advanced, Profile, Network, Statistics and About.
Status

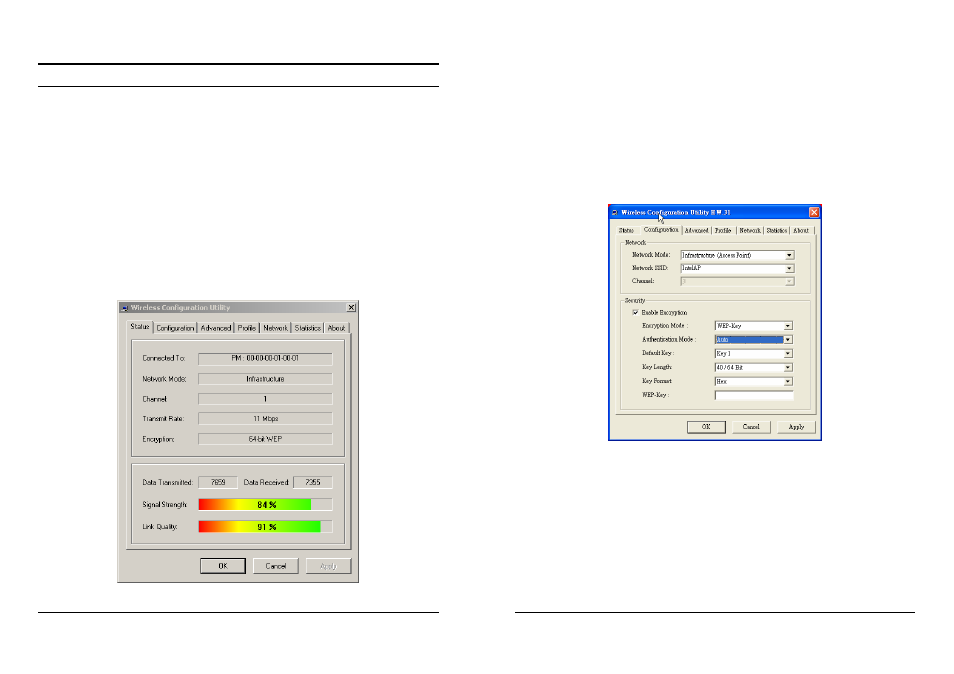

The Status screen shows you the status of the Cardbus Card, it shows
that where the device is connected to, the Network mode, the Channel,
the transmit rate and the encryption mode.
10
There is another dialog box showing the data transmitted and data
received. The two signal lines show the Signal Strength and the Link
Quality of the device.
Configuration
The Configuration function helps you to configure the Network and
the Security.
Network: the setting of the Network mode, the SSID and the
Channels.
¾
Network Mode:
If you want to connect with an Access Point, please set to
“Infrastructure” mode. If you have more stations and just want to set
them as local network, please set the mode to “Ad-Hoc” mode.
