-21- June 27, 2006

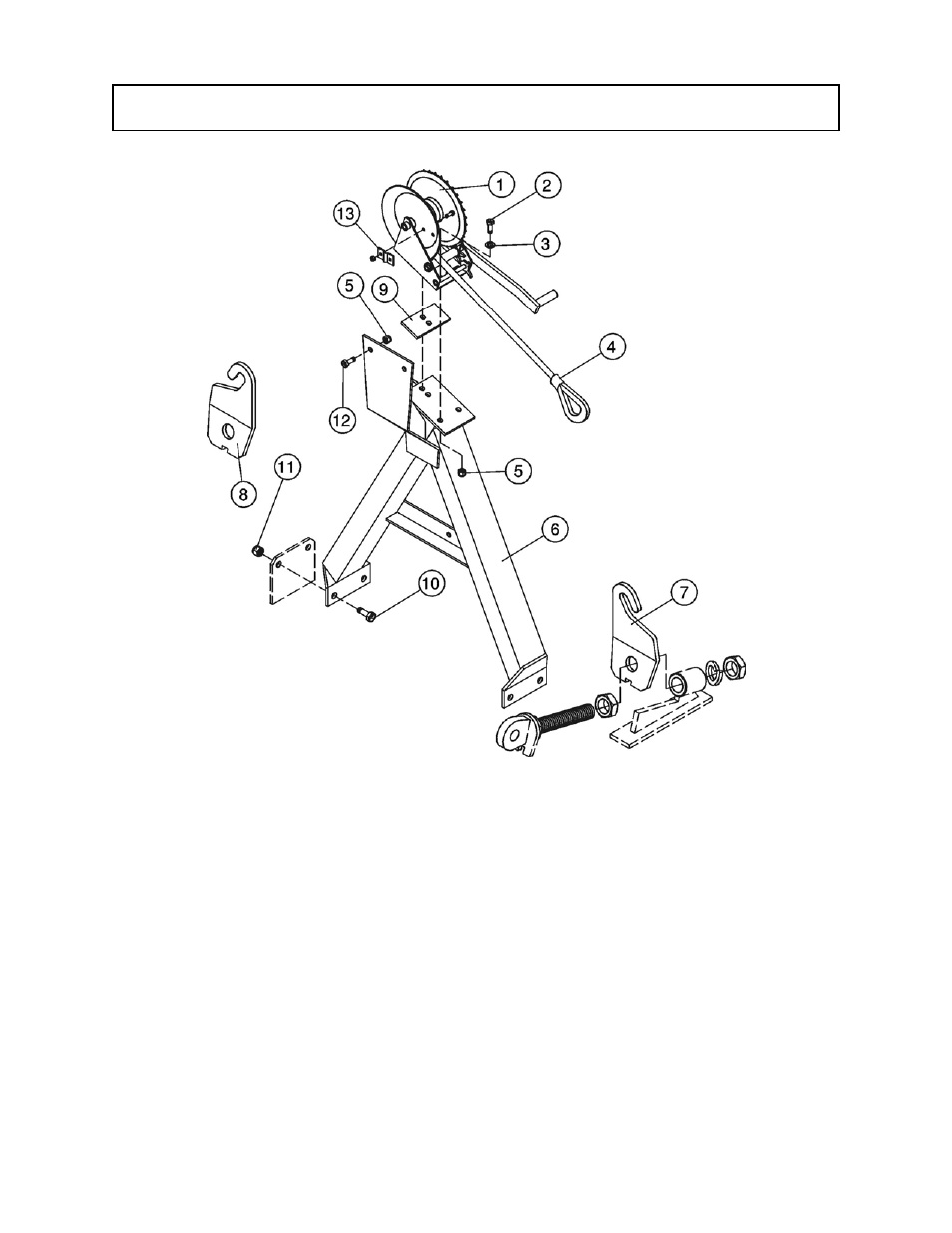

Ref. Part No. Description Qty.
1 450-050 Winch, 1600 lb., 5.1:1 ratio 1
2 250-019 Bolt, 3/8 x 1-1/4 UNC 3
3 256-017 Flat washer, 3/8 3
4 158-03 Cable, 135", 7/32 dia. 1/4 loop end 1
5 270-017 Lock nut, 3/8 UNC 5
6 C310-302 Winch lift stand 1
7 C312-302 Winch lift lug, right 1
8 C312-301 Winch lift lug, left 1
9 C301-303 Backing plate 1
10 250-061 Bolt, ½ x 1-1/4 UNC 4
11 270-007 Lock nut, ½ UNC 4
12 250-018 Bolt, 3/8 x 1 UNC 2
13 450-104 Winch cable keeper, hardware included 1
WING WINCH KIT (C312-300)
