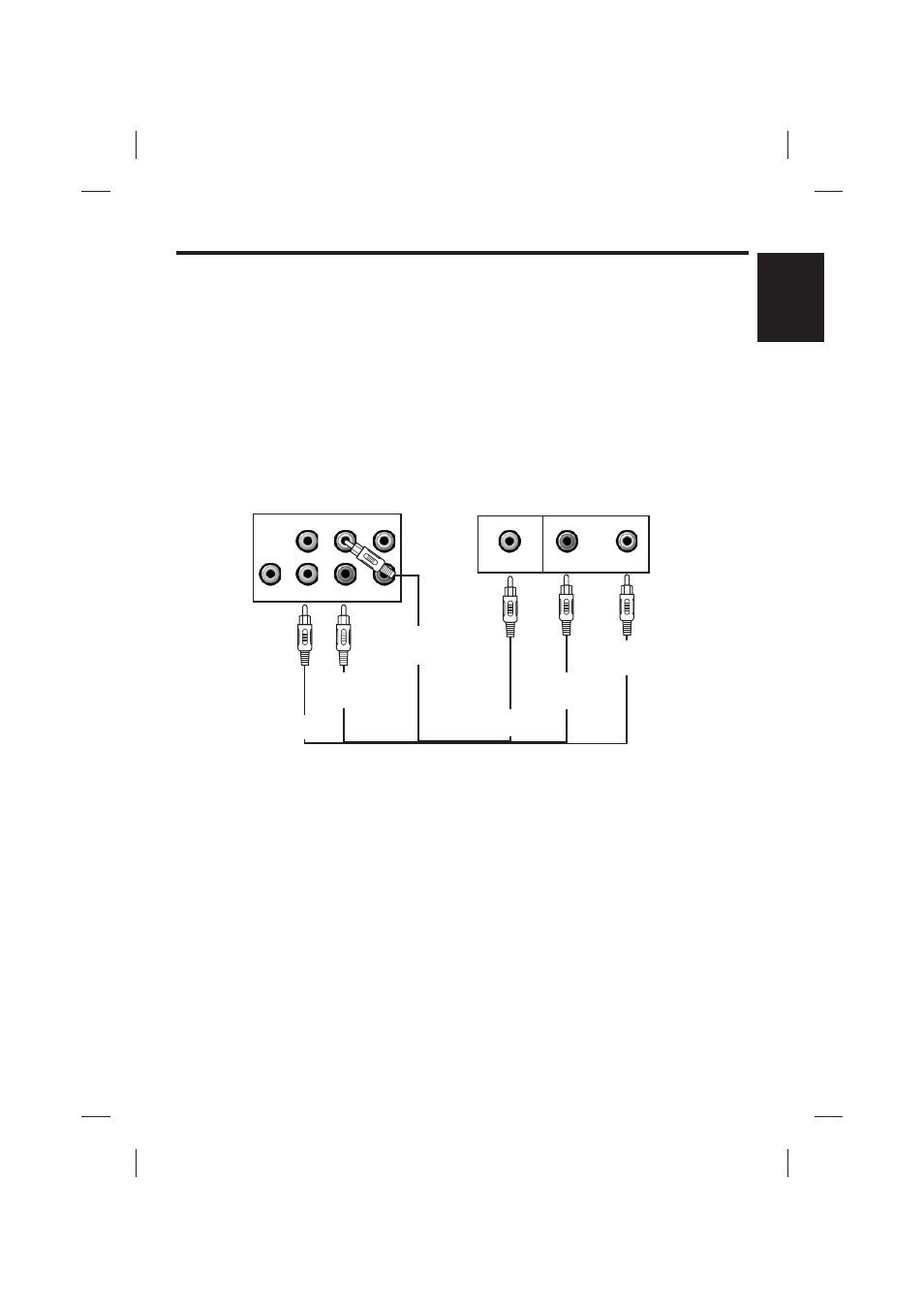

MAKING THE CONNECTIONS

E8

ENGLISHENGLISH

REAR VIEW OF VCR

R

L

VIDEO IN

AUDIO IN

REAR VIEW OF

SINGING MACHINE

VIDEO OUT

(Yellow Jack)

VIDEO IN

(Yellow Jack)

AUX IN

(Red Jack)

AUX OUT

(white Jack)

AUDIO OUT

L

(White Jack)

AUDIO IN

L

(White Jack)

AUDIO IN

R

(Red Jack)

AUDIO OUT

R

(Red Jack)

VIDEO CONNECTION (for VCR recording)

(4) Plug the white end of the patch cord into the white AUDIO OUT jack on the unit.
(5) Plug the red end of the patch cord into the red AUDIO OUT jack on unit.
(6) Now connect the other end of the cable’s white (left channel) and red (right channel) plugs

to your VCR ‘AUDIO IN’ or ‘AUX IN’ jacks.

Please follow the steps below to record CDG lyrics or image on the VCR:
(1) Locate the multicolored patch cords.
(2) Connect Video Cable (yellow) to the Video Out of the back of the Singing Machine.
(3) Connect the other end of the Video Cable (yellow) to the Video Input on your

VCR.
