Note:
When you use a converter box with your TV,
the remote control will not operate some
features, such as programming your favorite
channels, and channel return function.
If you have a mono VCR, connect L/Mono to
VCR Audio OUT using only one audio cable.
If you have a VCR with S-video, use an
S-video cable (in the S-video jacks) instead of
a standard video cable.
The TV side panel can be used to connect a
VCR with S-video.

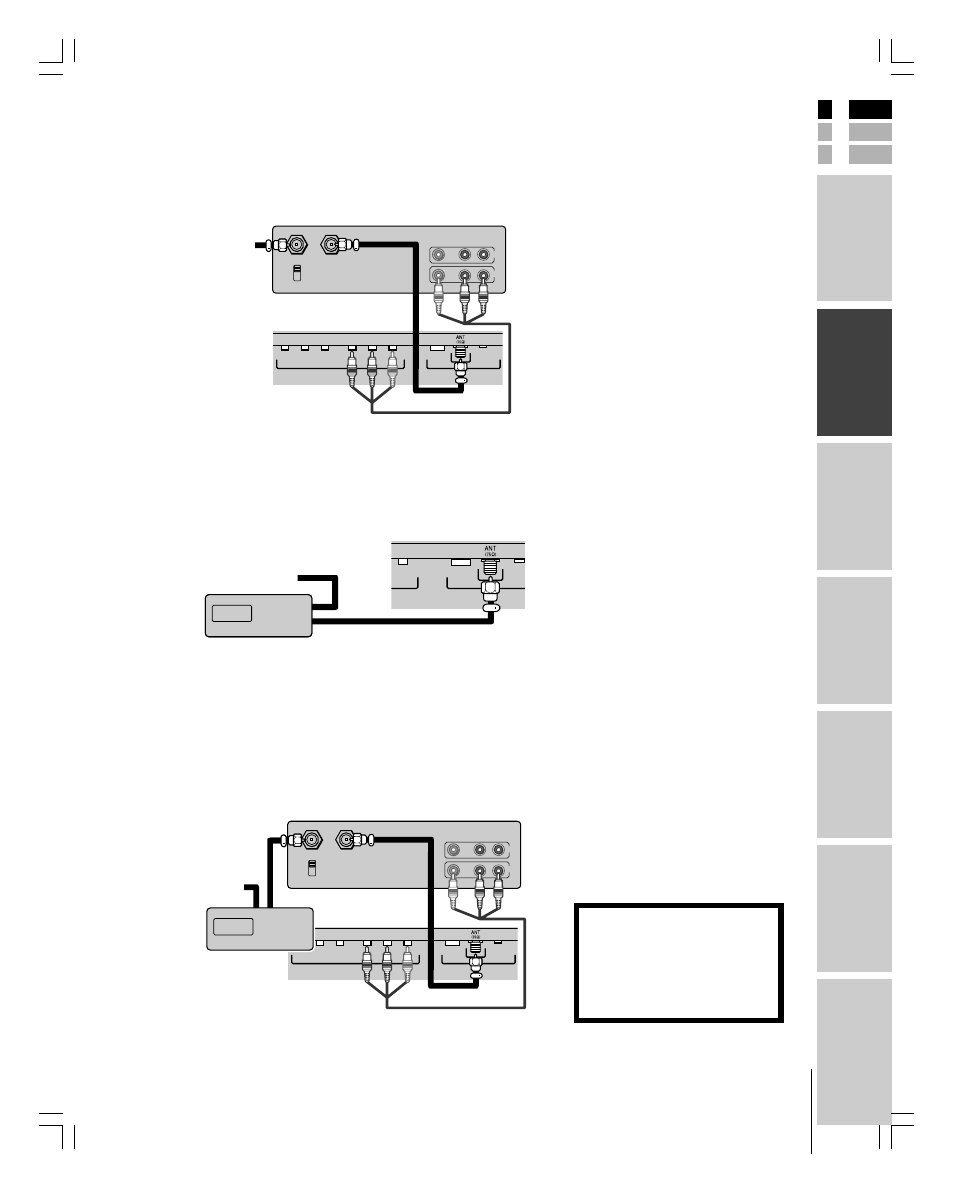

Connecting a VCR
This connection allows you to watch local channels and video
programs, play or record on the VCR while watching TV, and record
from one channel while watching another channel.
Y P B P R R L/MONO VIDEO RGB PC AUDIO
COLOR STREAM PC INPUT
AUDIO
IN from ANT
VIDEO AUDIO
OUT to TV
CH 3
L R
CH 4
IN
OUT
Connecting a cable converter box
This connection allows you to watch basic and premium cable channels.
Tune the TV to channel 3 or 4 (whichever channel is vacant in your
area), and use the converter box to change channels.
VIDEO RGB PC AU
PC INPUT
Cable box
IN
OUT
Connecting a cable converter box and a VCR
This connection allows you to watch and record basic and premium
cable channels, as well as watch videotapes. Set the TV signal source
to Video1 (page 20). Tune the VCR to channel 3 or 4 (the same
channel as the converter box output switch), and use the cable
converter box to change channels.
Y P B P R R L/MONO VIDEO RGB PC AUDIO
COLOR STREAM PC INPUT
AUDIO
IN from ANT
VIDEO AUDIO
OUT to TV
CH 3
L R
CH 4
IN
OUT
Cable box
IN OUT
Note:
When you use a converter box with your TV,
the remote control will not operate some
features, such as programming your favorite
channels, and channel return function.
Note:
If you have a mono VCR, connect L/Mono to
VCR Audio OUT using only one audio cable.
If you have a VCR with S-video, use an
S-video cable (in the S-video jacks) instead of
a standard video cable.
The TV side panel can be used to connect a
VCR with S-video.
The unauthorized recording, use,
distribution, or revision of television
programs, videotapes, DVDs, and other
materials is prohibited under the
Copyright Laws of the United States and
other countries, and may subject you to
civil and criminal liability.
From Cable
Back of TV
From Cable
Box or
Antenna
Stereo VCR
Back of TV
From Cable
Stereo VCR
Back of TV
