7 OPENSKY OPERATION
7.1 CH721 FRONT PANEL COMPONENTS
The front panel of the control head includes a dot matrix display, controls for menu navigation, an
emergency button, three pre-set buttons, a Power On-Off/Volume Control knob, and a microphone
connector. In addition, the system model control head features a DTMF keypad. Table 7-1 lists all default
front panel controls and their functions.

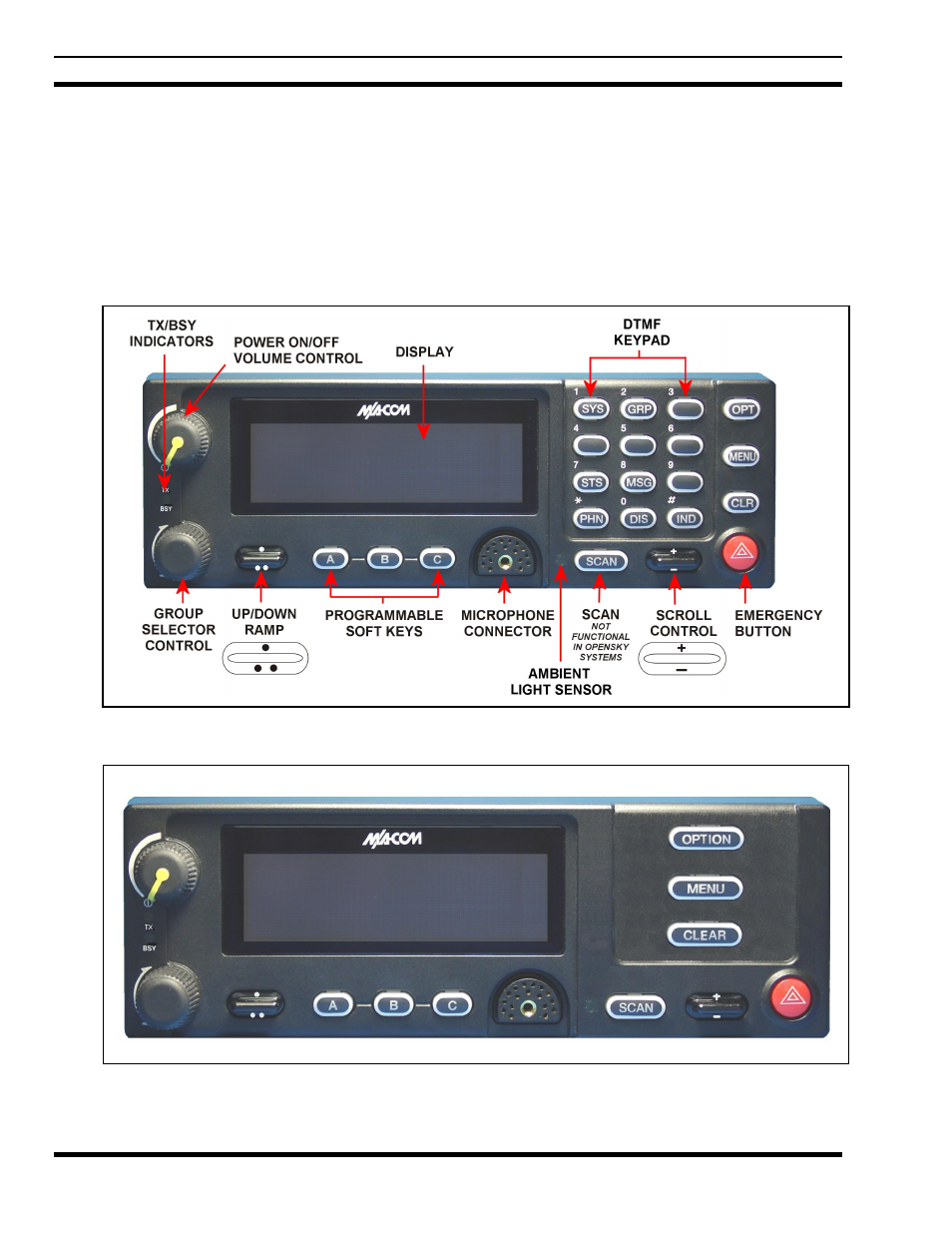

Figure 7-1: System Model
Figure 7-2: Scan Model
