TPS54810
SLVS420B − MARCH 2002 − R EVISED FEBRUARY 2005
4-V TO 6-V INPUT, 8-A OUTPUT SYNCHRONOUS BUCK PWM
SWITCHER WITH INTEGRATED FETS (SWIFT
™)
6,4 mm X 9,7 mm
FEATURES
D 30-mΩ MOSFET Switches for High Efficiency
at 8-A Continuous Output
D 0.9-V to 3.3-V Adjustable Output Voltage
Range With 1% Accuracy
D Externally Compensated
D Fast Transient Response
D Wide PWM Frequency:
Fixed 350 kHz, 550 kHz or
Adjustable 280 kHz to 700 kHz
D Load Protected by Peak Current Limit and
Thermal Shutdown
D Integrated Solution Reduces Board Area and
Total Cost
APPLICATIONS
D Low-Voltage, High-Density Systems With
Power Distributed at 5 V
D Point of Load Regulation for High
Performance DSPs, FPGAs, ASICs and
Microprocessors
D Broadband, Networking, and Optical
Communications Infrastructure
D Portable Computing/Notebook PCs
DESCRIPTION
As a member of the SWIFT™ family of dc/dc regulators,
the TPS54810 low-input voltage high-output current
synchronous buck PWM converter integrates all
required active components. Included on the substrate
with the listed features are a true, high performance,
voltage error amplifier that enables maximum
performance under transient conditions and flexibility in
choosing the output filter L and C components; an
under-voltage-lockout circuit to prevent start-up until
the input voltage reaches 3.8 V; an internally or
externally set slow-start circuit to limit in-rush currents;
and a power good output useful for processor/logic
reset, fault signaling, and supply sequencing.
The TPS54810 is available in a thermally enhanced
28-pin TSSOP (PWP) PowerPAD™ package, which
eliminates bulky heatsinks. TI provides evaluation
modules and the SWIFT™ designer software tool to aid
in quickly achieving high-performance power supply
designs to meet aggressive equipment development
cycles.
VSENSE
VIN PH
BOOT
PGND
Output
COMP
AGND
VBIAS
Input
TPS54810

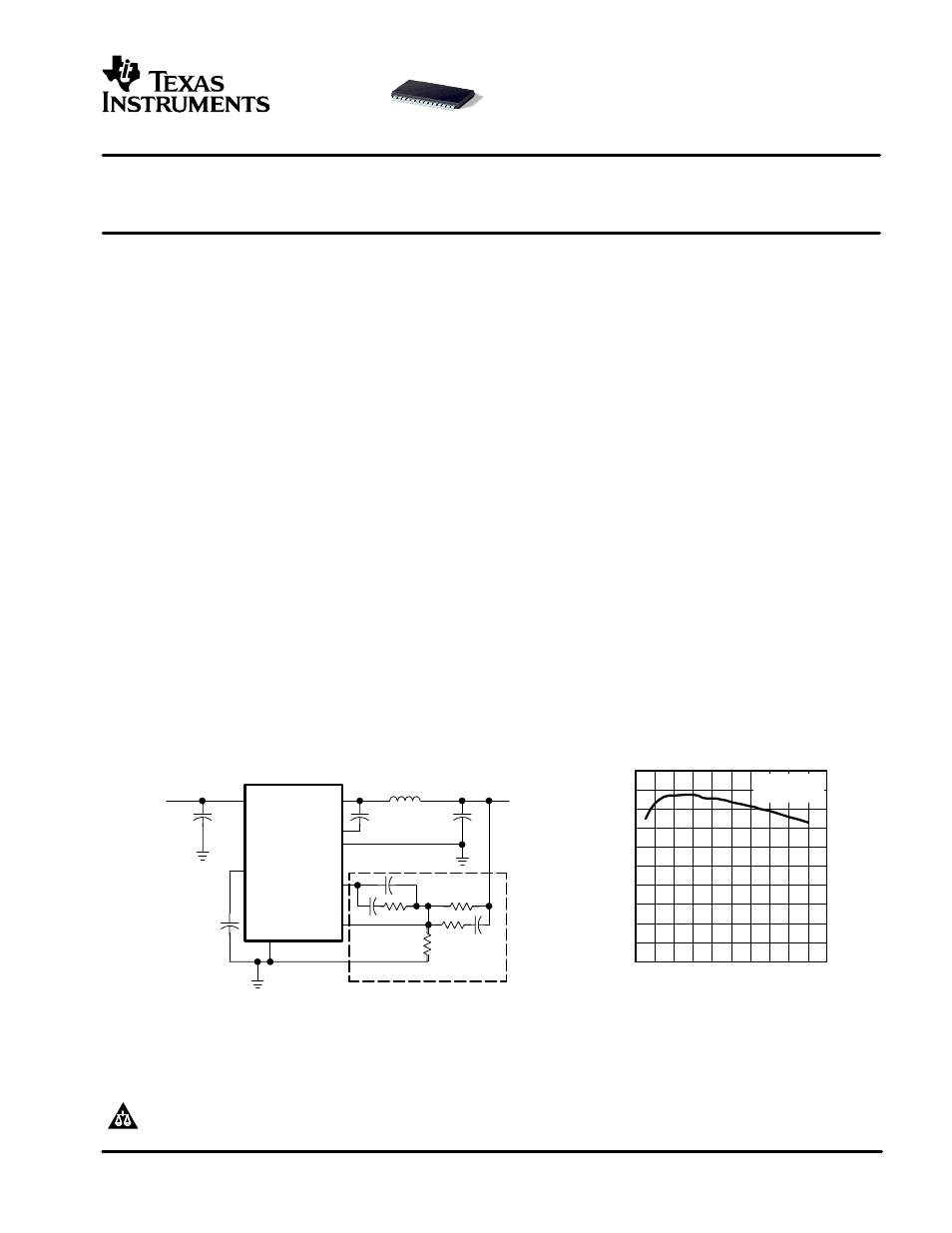

SIMPLIFIED SCHEMATIC
VSENSE
Compensation Network
I L − Load Current − A
Efficiency
− %
EFFICIENCY AT 700 HZ
50
55
60
65
70
75
80
85
90
95
100
0 1 2 3 4 5 6 7 8 9 10
V I = 5 V
V O = 3.3 V
