Deployment & Installation
Installation
Trango Broadband Wireless — TrangoLINK-10 User Manual Rev. E 3.0
page
19
1
2
3
4
5
Not Supplied
ITEM
NO.
PART NUMBER
QTY.
1
Radio
1
2
#10 x 3" Threaded Rod
4
3
#10 Keps Nut
8
4
"V" Bracket
2
5
Mono Pod Mount (Not Supplied)
1

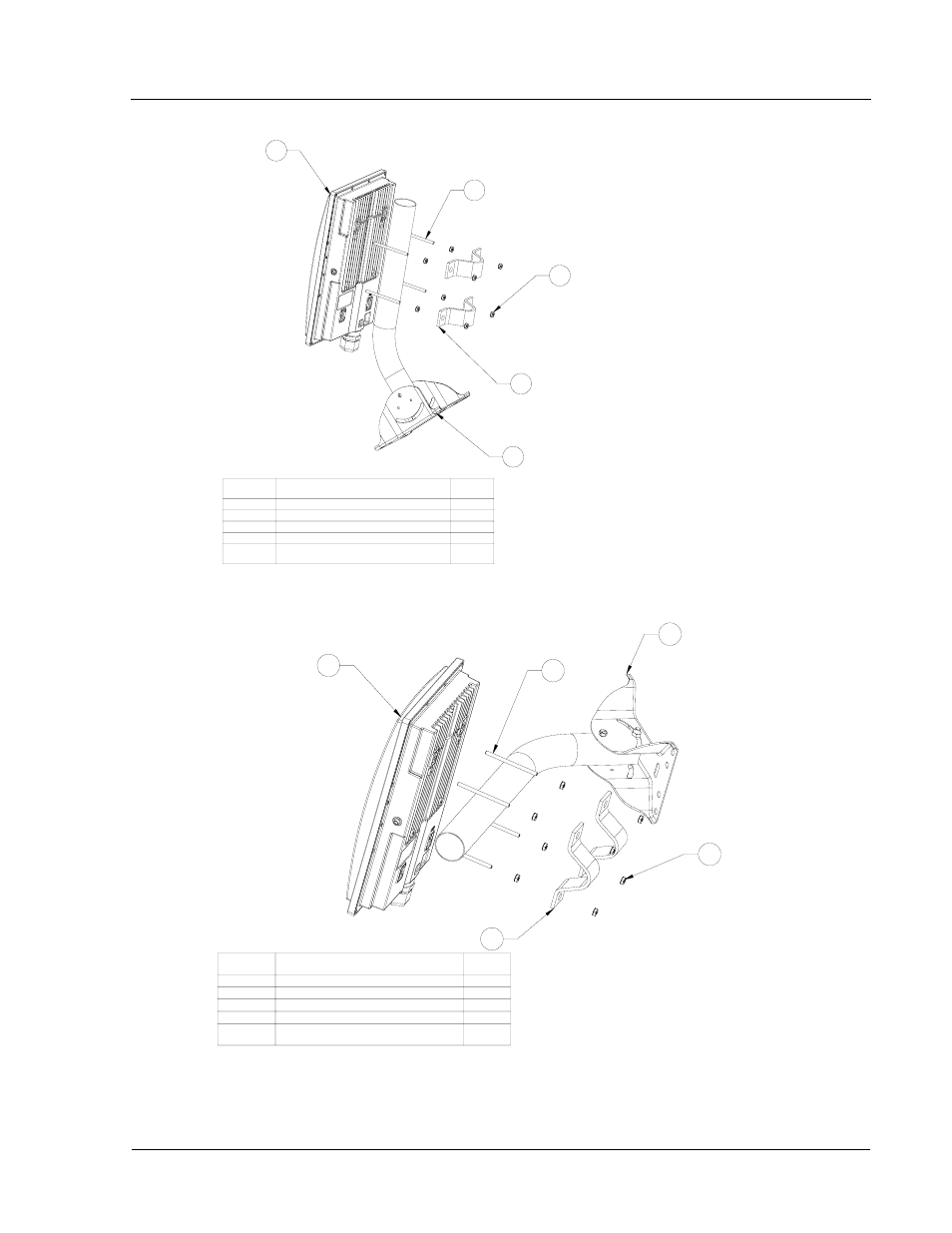

Figure 6: Mounting Hardware Assembly
ITEM
NO.
PART NUMBER
QTY.
1
Radio
1
2
#10 x 3" Threaded Rod
4
3
#10 Keps Nut
8
4
"V" Bracket
2
5
Mono Pod Mount (Not Supplied)
1
Alternate Mounting Configuaration
1
2
3
4
5 Not Supplied
Figure 7: Alternative Mounting Hardware Assembly
