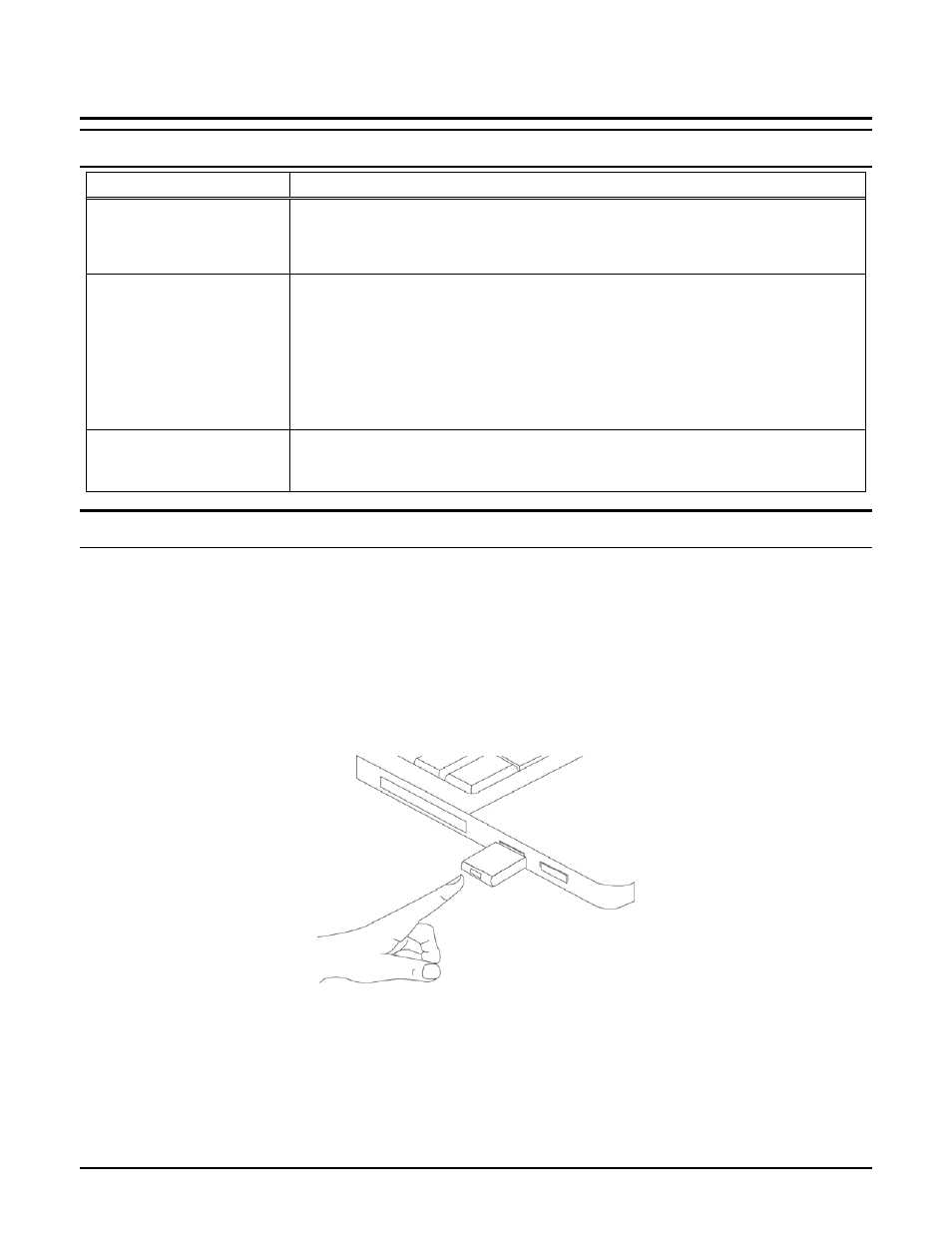

IDENTIFYING EXTERNAL COMPONENTS

LED

LED Status

Description

Slow Blink (1 blink/second)

When  the  LED  is  blinking,  the  WLAN  Adapter  is  transmitting  or  receiving  data
on the Wireless Ethernet network.

Fast Blink (3 blinks/second)

After  pressing  the  WPS  button,  the  LED  will  flash  3  blinks/second.    Once  the
connection is successfully established between the AP and the adapter, the LED
will  remain  solid  for  5  seconds  to  tell  the  users  that  the  connection  has  been
established.  After  5  seconds  ,  the  LED  will  turn  off  to  indicate  that  the  AP  is
ready for a new WPS connection and the adapter is associated with the AP.

Off

User  inserts  the  card  into  the  NB  without  driver  installed,  and  without
connection.

WPS Button

Press  the WPS button start the WPS pairing, the LED will begins to blinking for 3
blinks/second, once the connection is successfully established between the AP and
the  adapter,  the  LED  will  remain  in  solid  for  5  seconds  to  tell  the  users  that  the
connection has been established. After 5 second, the LED will light off to indicate
user that the Access Point or Wireless Router is ready for a new WPS connection
and the adapter is associated with the Access Point or Wireless Router.
