Step

Attach Interface

Cable

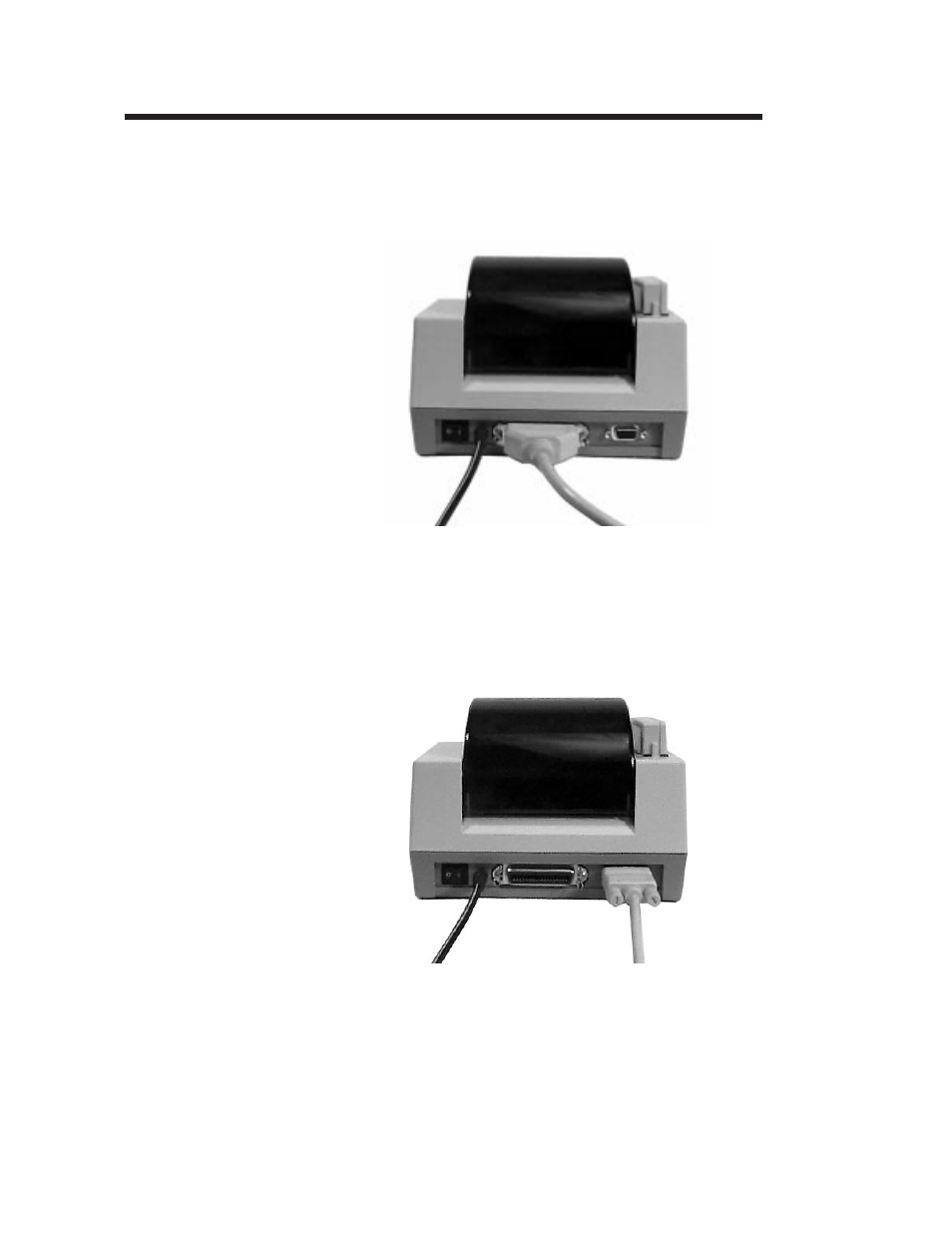

Parallel Interface
Attach a suitable parallel printer cable from the
computer to the Centronics interface connector
on the rear of the printer.

Serial Interface
Attach a suitable serial printer cable from the
computer to the DB-9 RS-232 Serial interface
connector at the back of the printer. For addi-
tional information on serial cable wiring, refer
to Appendix A - Trouble Shooting.

When the power switch is moved to the ON (1)
position, the Power Indicator should light Red
indicating that the printer is out of paper. If the
indicator fails to light, refer to Appendix A -
Trouble Shooting.

Getting Started

6

980008-001 Rev. B
