The Ethernet Comm Tab for 1 and 10 Gigabit Datacryptors
The properties on the Ethernet Comm tab control the communications settings of the
Datacryptor unit. The Comm tab illustrated in this section applies to the 1 Gig Ethernet unit.
Differences between the 1 Gig and 10 Gig units will be stated where relevant.

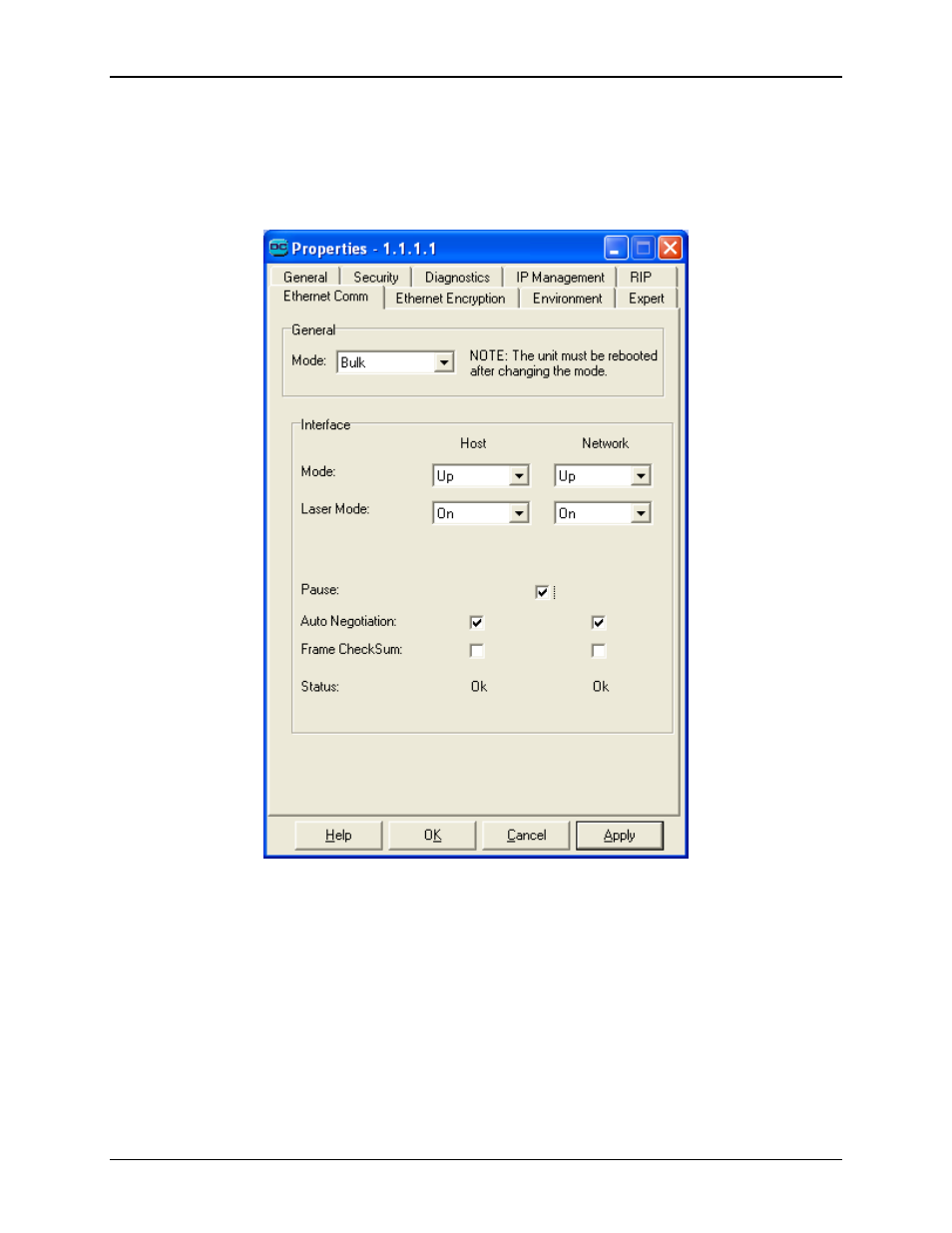

Ethernet Comm Tab for the 1 Gigabit Datacryptor
The properties are as follows:
Mode- Selects one of two options for the transmission mode.
− Bulk - Unit encrypts everything including Ethernet header.
− Tunneling - Unit encrypts every thing below Ethernet header.
When a mode change is made then the following dialog will be shown advising that the unit
must be rebooted.
