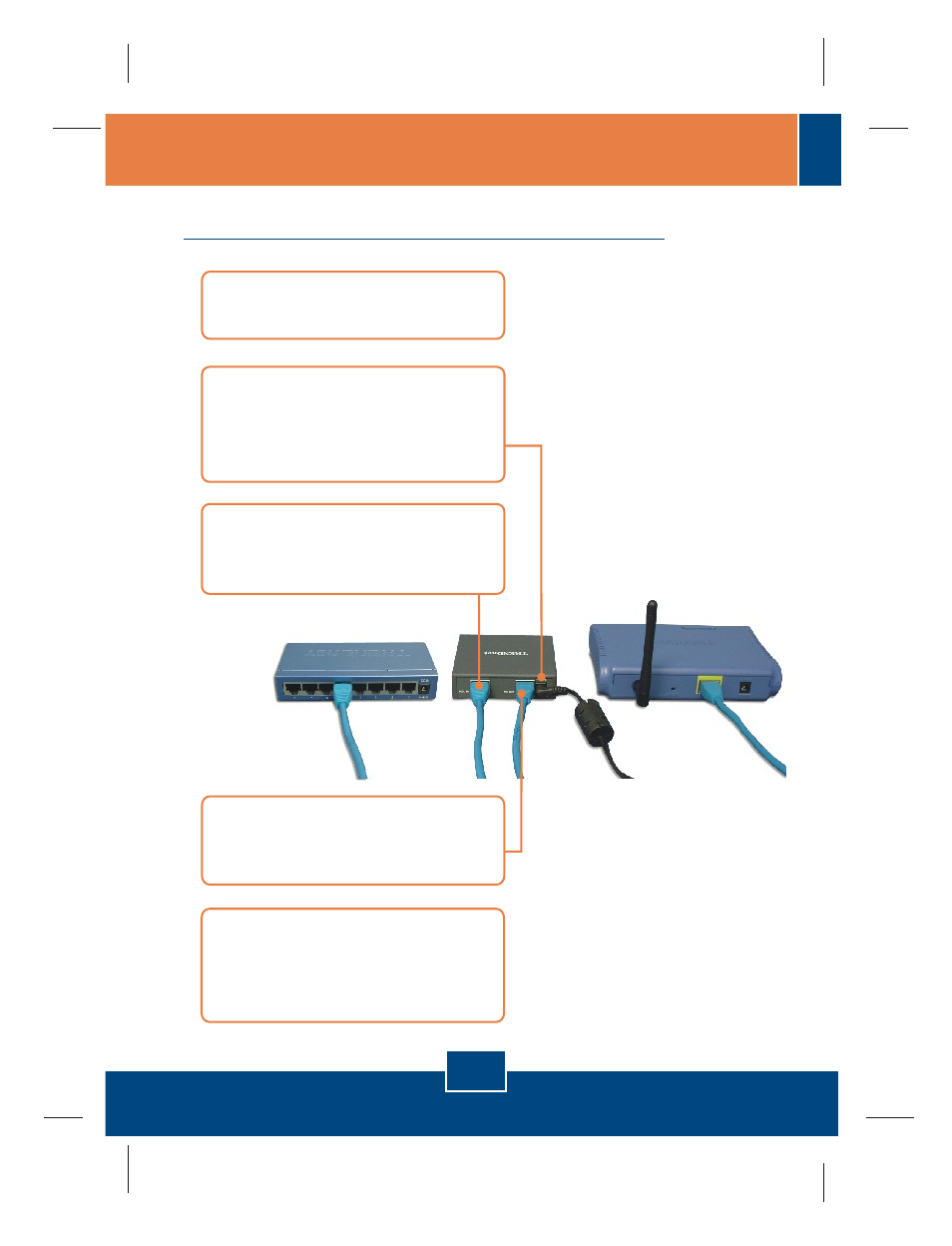

Using the TEW-434APB with the TPE-101I
1. Connect the Power Cord to the
AC Power Adapter.
2. Connect the AC Power Adapter to
the
DC 48V IN connector on the
TPE-101I.
Then connect the
Power Cord to an outlet.
3. Connect a CAT-5 cable from a
switch to the TPE-101I's
DATA IN
port.
4. Connect a CAT-5 cable from the
TEW-434APB's
LAN port to the
TPE-101I's
POE OUT port
5. Verify that the following panel lights
are on:
WLAN and LAN. Please
refer to step 3 in the Hardware
Installation.
