NOTE: This machine is shipped WITHOUT GASOLINE or OIL. After
setting up the edger, service the engine with gasoline and oil as
instructed in the separate Engine Operator’s Manual packed with
your machine.
NOTE: Reference to right or left hand side of the edger is
observed from the operating position.
Assembly

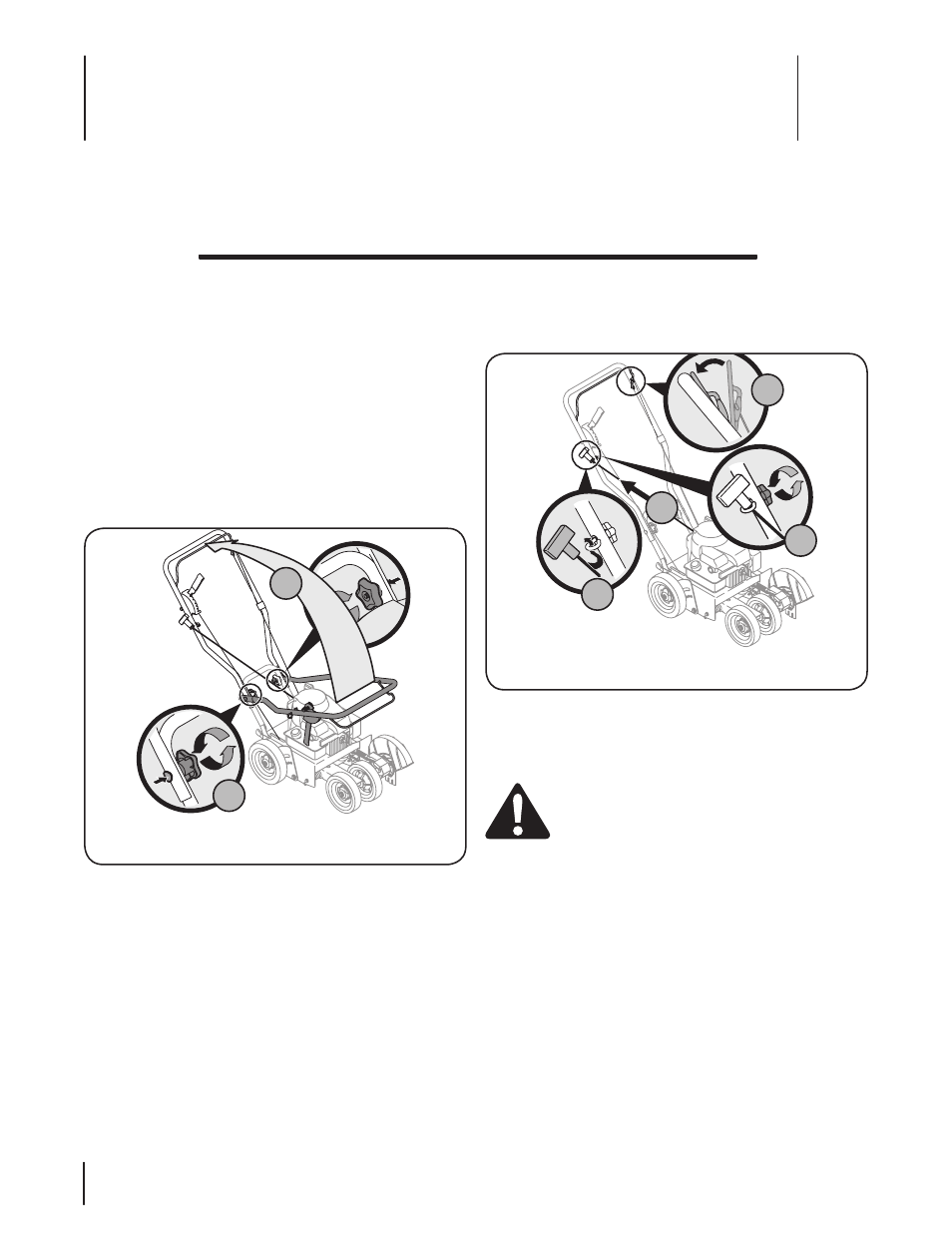

Handle
Remove and discard any packaging cardboard that may be
present between the upper handle and the lower handle.
Pivot the upper handle upward until it snaps into place. See
Fig. 3–1.
Tighten the hand knobs, which are located on both the left
and right sides of the handle.
1.
2.
Starter Rope
Locate the rope guide found on the right side of the upper
handle. Loosen, but do NOT remove, the wing knob which
secures the rope guide to the upper handle. See Fig. 3–2.
Stand behind the edger and hold the blade control against
the upper handle.
Gently pull the starter rope out of the engine.
WARNING! The edger blade WILL rotate when the
starter rope is pulled.
NOTE: The starter rope will not pull out of the engine
unless the blade control (refer to Fig. 3–2) is depressed
against the upper handle.
Slip the starter rope through the top of the rope guide.
Retighten the wing knob which secures the rope guide to
the upper handle.
1.
2.
3.
4.
1
Figure 3-1
1
4
3
Figure 3-
Contents of Carton
One Edger • One Edger Operator’s Manual • One 18 oz. Bottle Engine Oil •
One Engine Operator’s Manual •
Assembly & Set-Up
