3. MAINTENANCE
ENGLISH VERSION EO1-33035
3.1 Cleaning
E3- 2
3.1.2 Platen/Sensors
3.1.3 Cover
1.
Wipe the Platen with a soft cloth moistened with alcohol.
2.
Remove dust or paper particles from the Media Sensor and Cover
Open Sensor using an air blower.
Wipe the Cover with a dry soft cloth. Wipe off dirt with a soft cloth
slightly moistened with water.
CAUTION!
Do not use any volatile
solvents including thinner and
benzene, as this may cause
discoloration or distortion of
the cover.

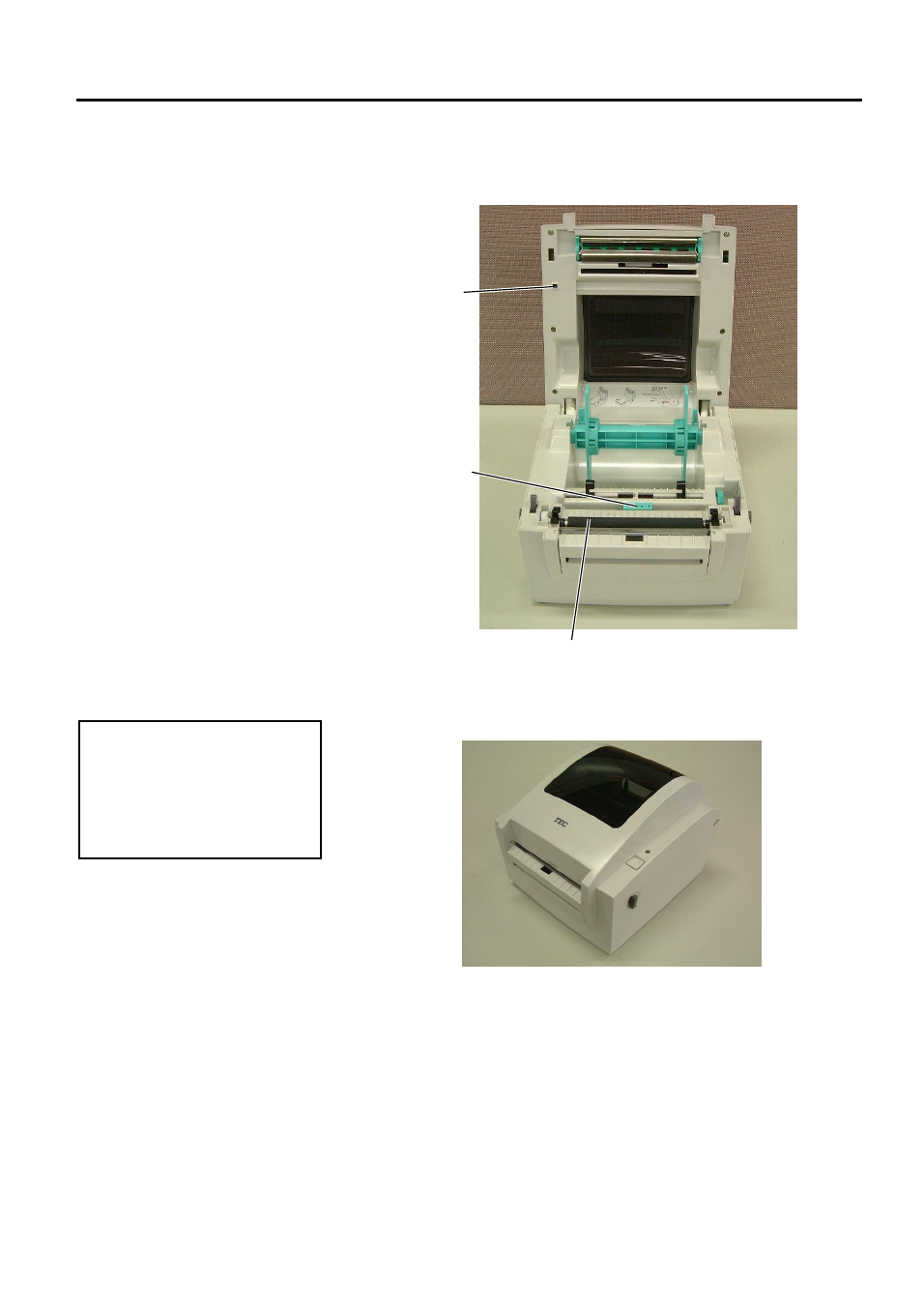

Platen
Media Sensor
Cover Open
Sensor
