Quatech SDS User’s Manual

Installing the device drivers

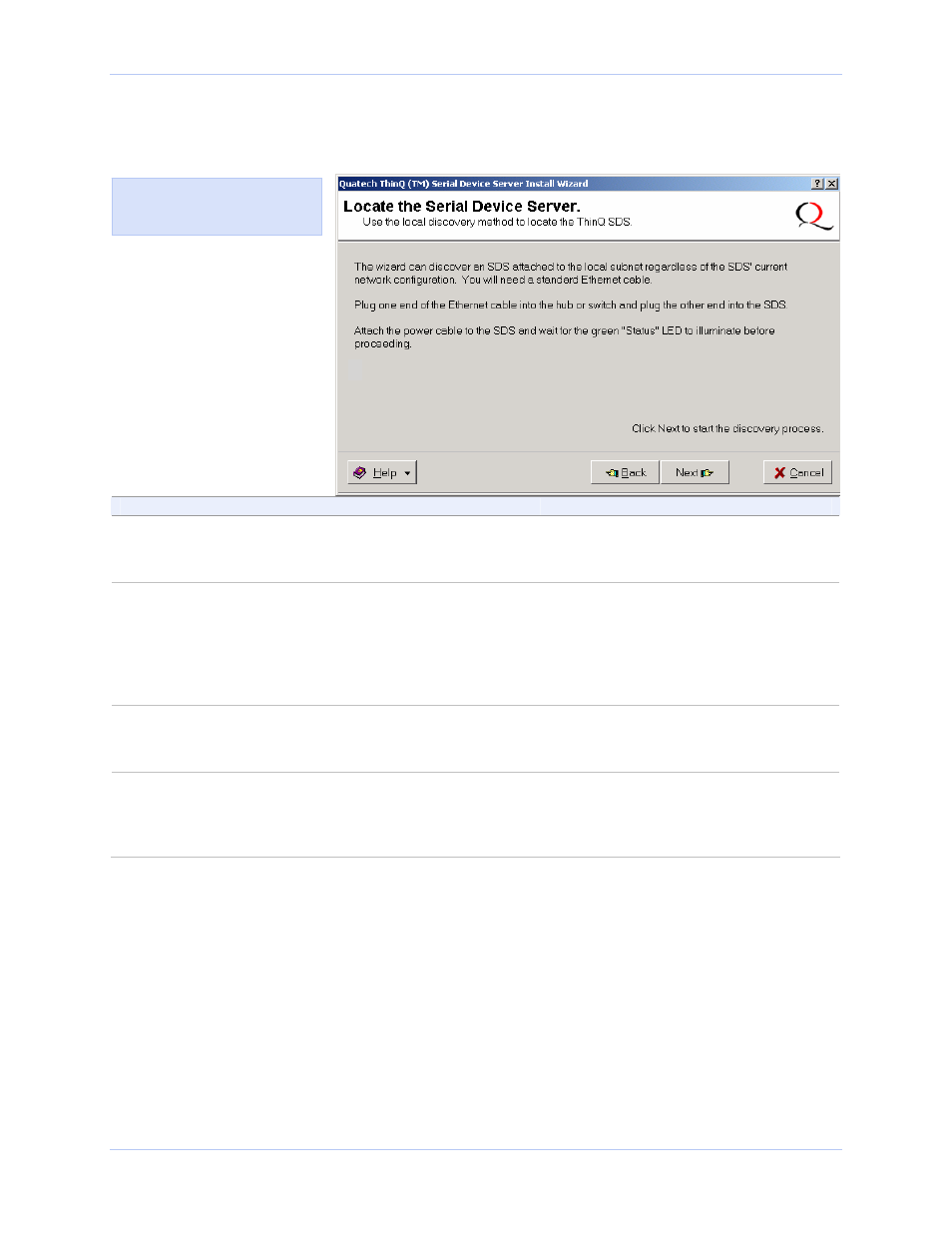

Figure 38 - Locate the Serial Device Server local discovery screen

Step

Procedure

Description

Step 49

Connect the SDS to a local hub or switch.

Use a standard Ethernet cable to connect

the Ethernet port on the SDS to the hub

or switch.

Continue with □ Step 50.

Step 50

Connect power to the SDS.

Connect the cable attached to the power

source to the SDS. Plug the connector of

the unattached power cable into the
power source’s socket. Plug the other end

of the cable into a power outlet. The SDS

powers up.

Step 51

Confirm that the SDS is ready to proceed. The Status LED to the left of the power

jack should glow green and the Power

LED should glow blue.

Step 52

Click the Next button to continue.

The Search network for Serial Device

Servers screen displays and the Wizard

searches the local subnet for active serial
device servers.

Go to □ Step 10.

Figure 39 illustrates the Locate

the Serial Device Server local

discovery prompt.
