Quadra-Fire • HUDBAY-INS • 7008-115 Rev. o • 8/11 42
R Service Parts HUDBAY-INS
Beginning Manufacturing Date: April 2003
Ending Manufacturing Date: ______
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement
parts for your appliance please provide model number and serial number. All parts listed
in this manual may be ordered from an authorized dealer.
Stocked
in Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
14.1 Pilot Shield 7008-172
14.2 Piezo Ignitor 291-513 Y
14.3 Blower Access Plate 7008-135
14.4 Gasket, Blower Access 7008-136
14.5 Burner Neck Support Assembly 7008-005 Y
14.6 Shutter Bracket Assembly 468-5060 Y
14.7 Bulkhead 26457 Y
14.8 Bulkhead Stop 474-0090
14.9 Extension Knob, HI/Lo 571-533 Y
14.10 Extension Knob, ON/OFF 571-534 Y
14.11
Valve NG 842-0240 Y
Valve LP 842-0230 Y
14.12 Valve Bracket 7008-112
14.13 Speed Control 842-0370 Y
Speed Control Knob 200-2041 Y
14.14
Pilot Assembly NG 7003-014 Y
Pilot Assembly LP Use LP Pilot Orifi ce
Thermocouple 200-2950 Y
Thermopile 842-0250 Y
14.15 Snap Disc SRV230-0960 Y
Orifi ce NG (.125) 24691 Y
Orifi ce LP (.076) 29388 Y

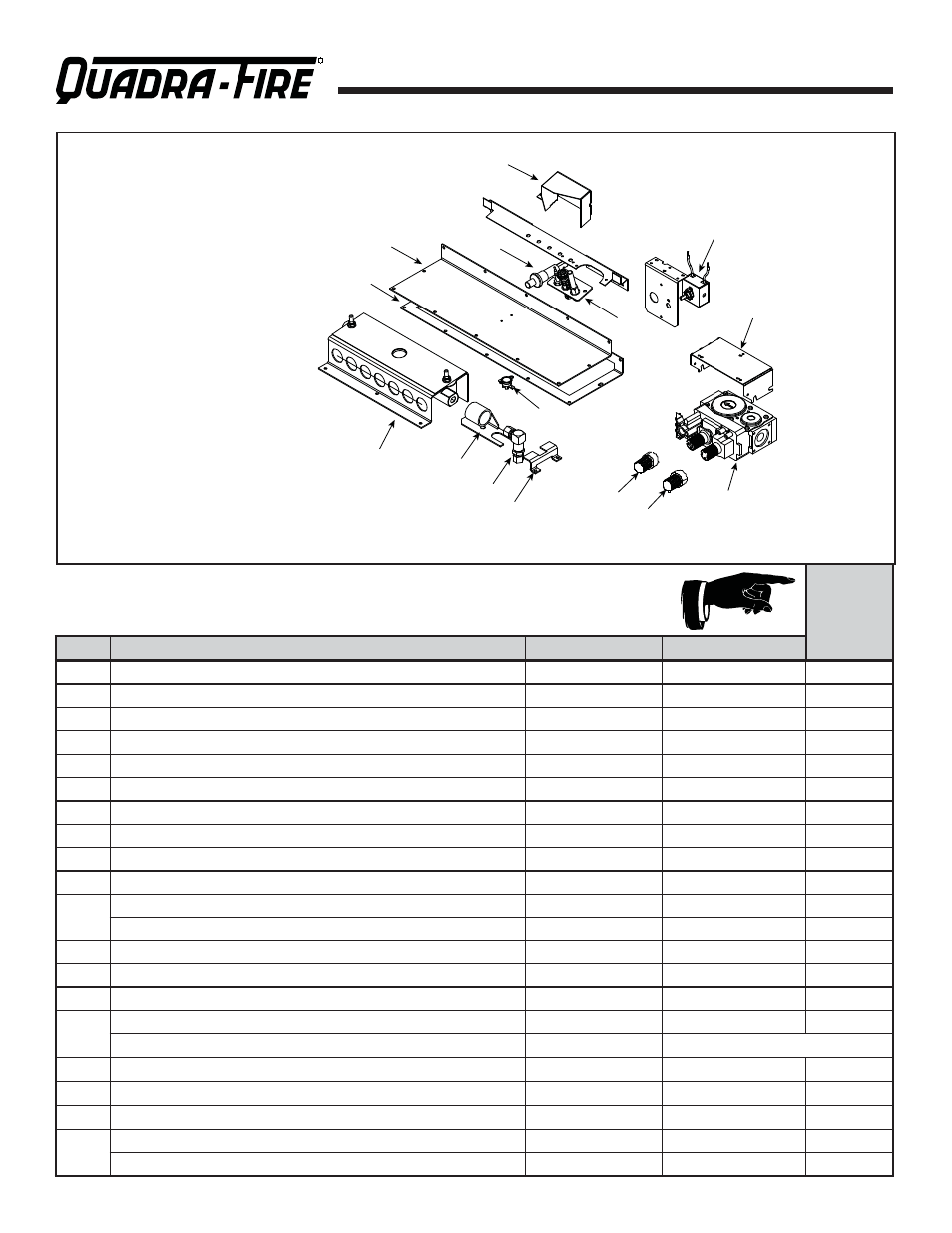

#14 Valve Assembly
14.1
14.2
14.3
14.4
14.5
14.6
14.7
14.8
14.9
14.10
14.11
14.15
14.14
14.13
14.12
