Castile Pellet Insert 3

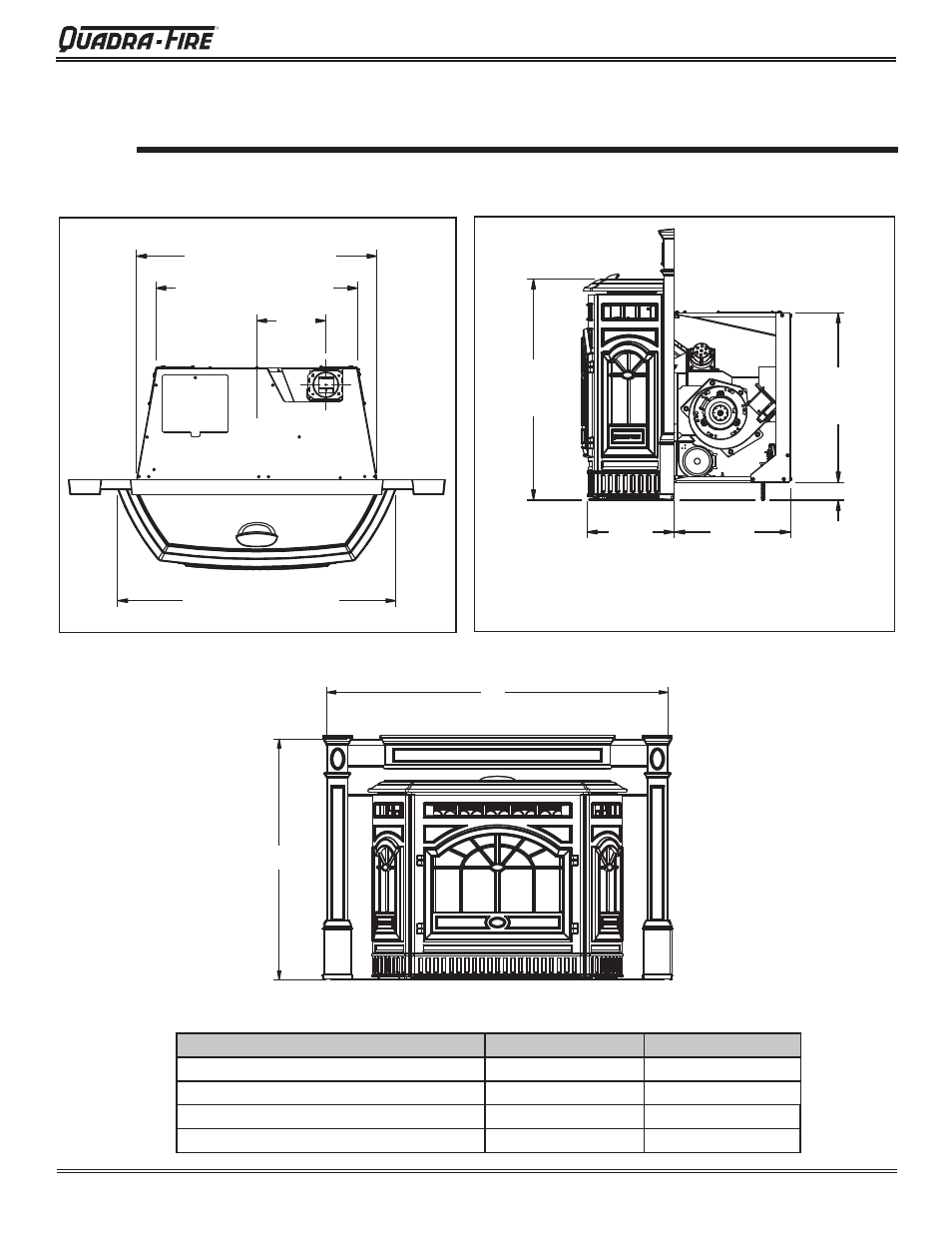

Dimensions and Clearances
A. Appliance Dimensions
Figure 9.3- Front View
Figure 9.1 - Top View Figure 9.2 -Side View
32-1/4 in. (819mm)
27-7/8 in. (707mm)
23-3/8 in. (594mm)
8 in.
(203mm)
19 in.
(483mm)
24-3/4 in.
(629mm)
9-3/4 in.
(249mm)
13 in.
(330mm)
2 in.
(51mm)
Overall Size A B
Metal Surround w/Cast Trim, STD 42-1/2 in. (1080mm) 30 in. (762mm)
Metal Surround w/Cast Trim, LRG 48 in. (1219mm) 34 in. (864mm)
Metal Surround w/Standard Trim, STD 43 in. (1092mm) 31 in. (787mm)
Metal Surround w/Standard Trim, LRG 51 in. (1294mm) 34 in. (864mm)
A
B
