Quadra-Fire • QVI-30FB-S • 2020-910 Rev. H • 6/09 23

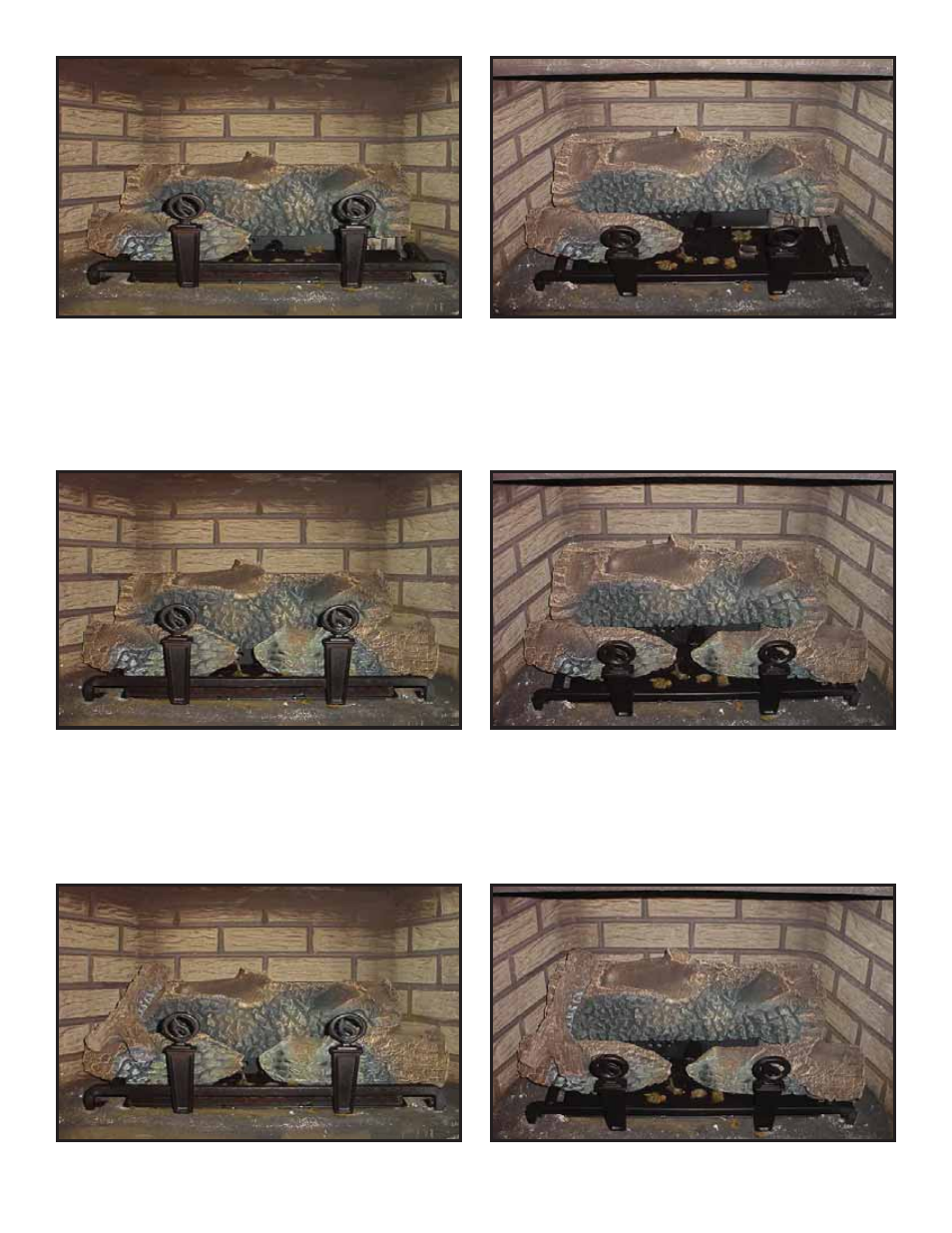

LOG #3 (2020-142): Position log #3 by locating its slot over the tab on the front right of the burner. The slot
in the right end of the log slides over grate. Slide log all the way back on tab and grate.
LOG #2 (SRV2020-141):
Position log #2 by locating its slot over the tab on the front left of the burner. The
slot in the left end of the log slides over the grate. Slide right corner of log all the way forward on the tab.
2
2
3 3
LOG #4 (SRV340-704): Place log #4 across log #1 and log #2 in the grooved out areas as shown.
4
4
