70
Advanced Setup —Continued

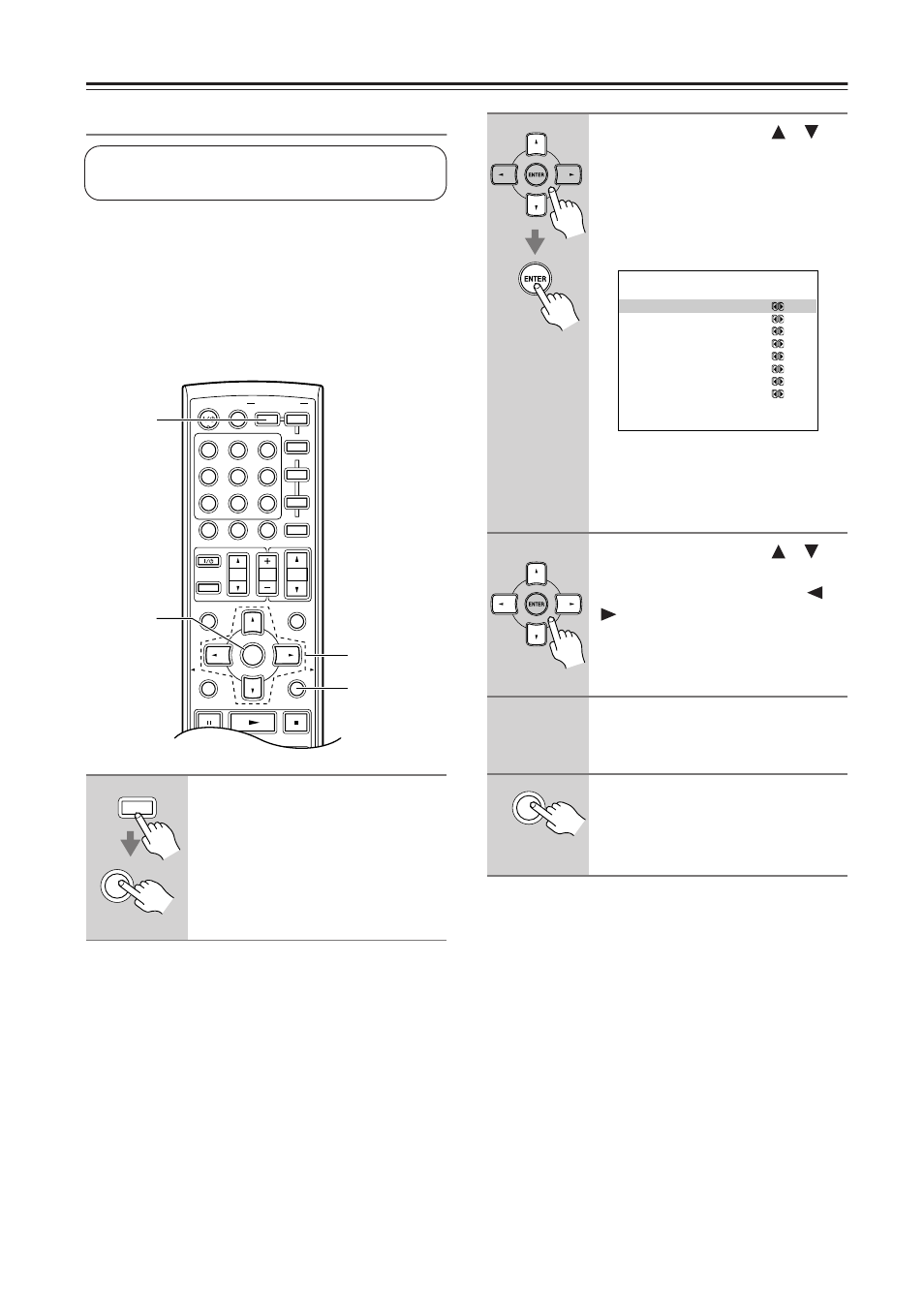

Speaker Level Calibration
Here you can adjust the level of each speaker with the
built-in test tone so that the volume of each speaker is the
same at the listening position.
Note:
The speakers cannot be calibrated while the output of the
AV receiver is muted or while a pair of headphones is
connected.
Note:
This procedure can also be performed by using the
remote controller. First press the [TEST TONE] button
to output the test tone. Use the [LEVEL–] and
[LEVEL+] buttons to set the volume, and use the [CH
SEL] button to select the speakers.
1 Press the [RECEIVER] button fol-
lowed by the [SETUP] button.
The main menu appears onscreen.
This setting is set automatically by the Automatic
Speaker Setup function (see page 38).
MUTING
PREVIOUS
MENU
GUIDE
TOP MENU
SETUP RETURN
PLAYLIST/CAT PLAYLIST/CAT
--/---
TAPE
M D/CDR
HDD
CABLE
ON/STANDBY
DIMMER
ENT D TUN
SLEEP
10 11 12
INPUT SELECTOR
REMOTE MODE
ZONE2
V 1
V 4
V 2 V 3
C D TAPE TUNER
DVD MULTI CH
T V VOL VOL
SAT
VCR
T V
DVD RECEIVER
C D
INPUT
+10 0 CLR
1 2 3
4 5 6
7 8 9
ENTER
CH
DISC
ALBUM
1, 5
2, 3
2
1
RECEIVER
SETUP
2 Use the Up and Down [ ]/[ ]
buttons to select “3. Level Cali-
bration,” and then press
[ENTER].
The Level Calibration menu appears
and the pink noise test tone is output by
the front left speaker.
Note:
Speakers that you set to No or None on
the Speaker Configuration page
(page 67) cannot be selected.
3 Use the Up and Down [ ]/[ ]
buttons to select each speaker,
and use the Left and Right [
]/
[ ] buttons to set the volume.
The volume can be adjusted from –12
to +12 dB in 1 dB steps (–15 to +12 dB
for the subwoofer).
4 Repeat step 3 until the volume of
the test tone from each speaker
is the same.
5 Press the [SETUP] button.
The setup menu closes.
3.Level Calibration
------------------------
a.Left : 0dB
b.Center : 0dB
c.Right : 0dB
d.SurrRight : 0dB
e.SurrBack R : 0dB
f.SurrBack L : 0dB
g.SurrLeft : 0dB
h.Subwoofer : 0dB
SETUP
