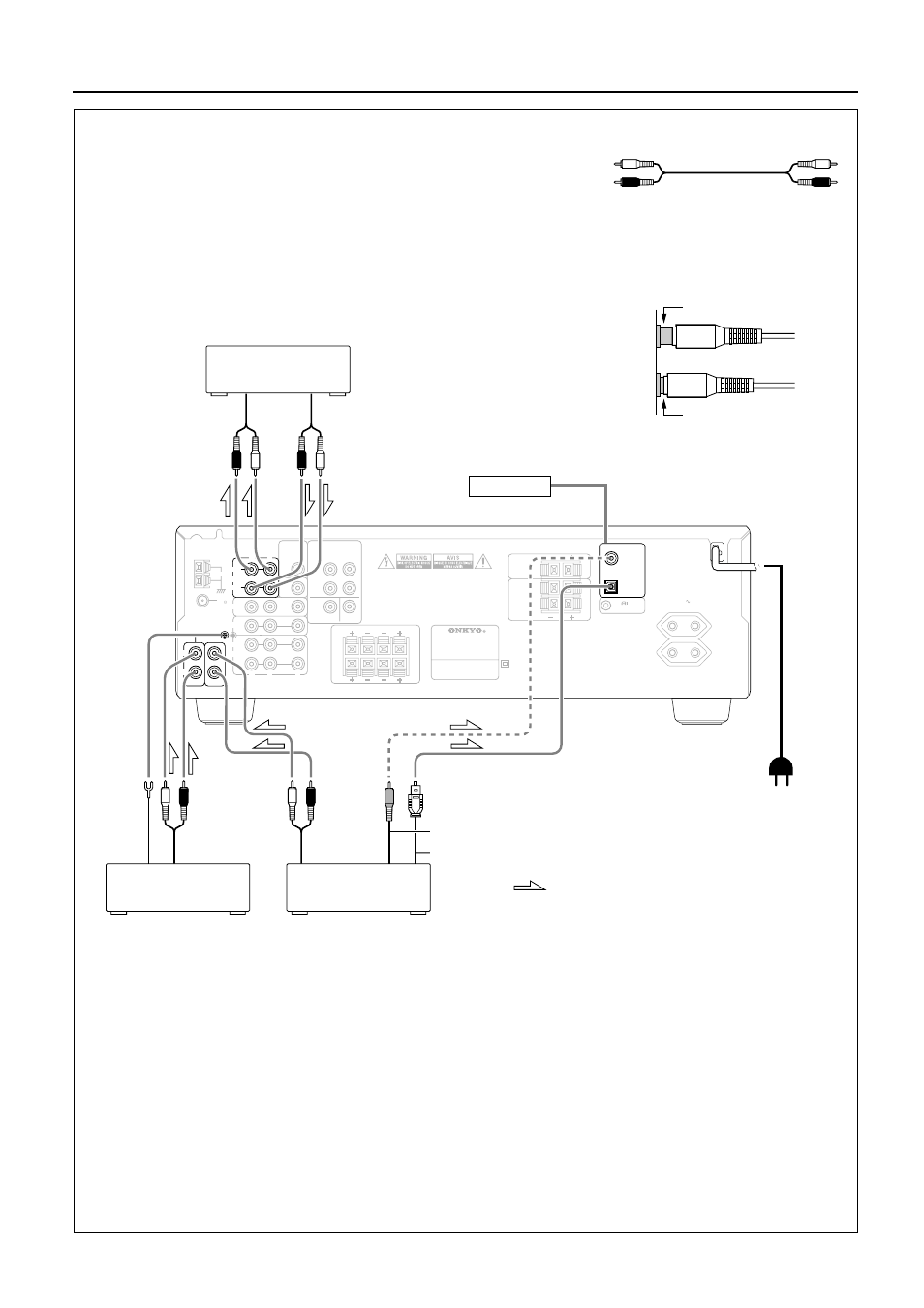

Audio equipment connections
•
On each pair of input jacks, a red connector (marked R) corresponds to the right
channel, and a white connector (marked L) to the left channel.
•
Please refer to the instruction manual of each component when making any con-
nections.
•
This receiver is designed for use with turntables using moving magnet cartridges.
•
Insert the plugs and connectors securely. Remember that improper connection
can result in noise, poor performance, or damage to the equipment.
L (Left)
R (Right)
L
R
Audio connection cable
FM
75
ANTENNA
CD
AM
GND
PHONO
R
L
R L V
I N
MONI-
TOR
OUT
SUB
WOOFER
PRE OUT
SURROUND
FRONT
R L
DVD
I N
I N
VIDEO-1
VIDEO-2
I N
OUT
CENTER SUB
WOOFER
R
L
R
L
R
CENTER
SPEAKER
R
L L
SURROUND
SPEAKERS
DIGITAL INPUT
REMOTE CONTROL
MODEL NO. TX-DS474
FRONT SPEAKERS
A B
DIGITAL 1
(OPTICAL)
DIGITAL 2
(COAXIAL)
MULT I CHANNEL
I NPUT
AC OUTLETS
AC 230V 50Hz
SWITCHED
TOTAL 100W MAX.
R L
(PLAY)
(REC)
OUT
TAPE
INPUT
(REC)
OUTPUT
(PLAY)
Tape Deck
Turntable CD Player
OUTPUT
(ANALOG)
OUTPUT (DIGITAL)
OUTPUT (COAXIAL)
OUTPUT Ground
To wall
outlet
Do not plug in the power
cord until all connections
have been made.
Improper connection
Insert completely
See page 7
: signal flow
•
A DVD or other component equipped with a digital output can be connected to this receiver. The digital connection must be
used in conjunction with an analog connection, because if the analog cable is disconnected, the audio output from TAPE OUT
and VIDEO-2 will not work.
