14
Making Connections

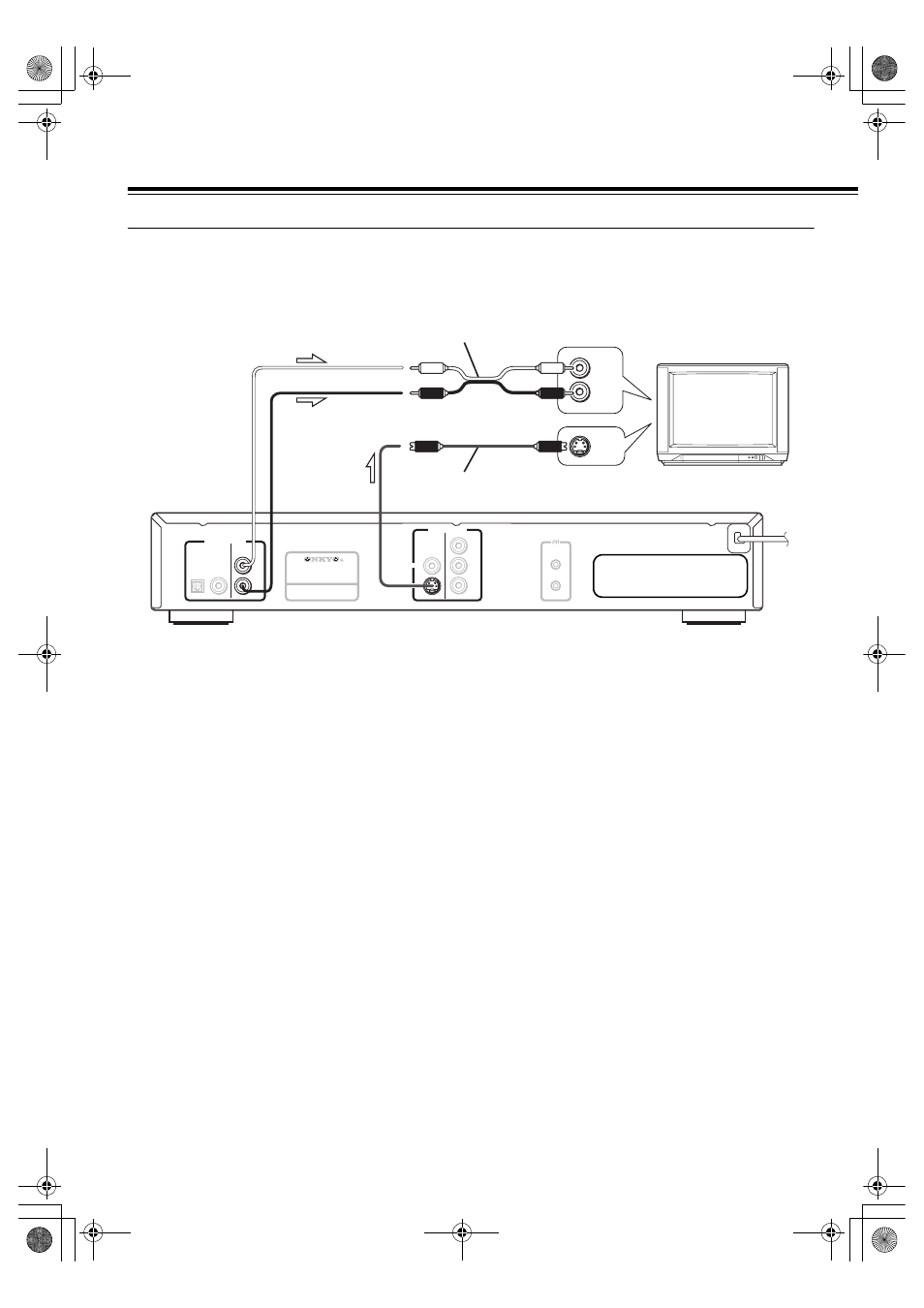

■ If your TV has S-Video Input connector
If the TV or monitor has an S-video input, making this type of video connection will produce improved picture quality. Using an S-video
cable (sold separately), connect the VIDEO OUTPUT S VIDEO jack to the corresponding S-video input jack on the TV.
In the same manner, make audio connections from the ANALOG OUTPUT L and R jacks to the corresponding audio input jacks on the
TV.
MODEL NO. DV-SP301
DVD PLAYER L
R
OPTICAL
DIGITAL ANALOG
COAXIAL
AUDIO OUTPUT
VIDEO OUTPUT
Y
P B
P R
COMPONENT
VIDEO
S VIDEO
REMOTE
CONTROL
L
AUDIO
S VIDEO
R
Signal flow
S-video cable
(not supplied)
Audio/video cable
(supplied)
To audio inputs
To S-video inputs
Audio (L)
Audio (R)
Audio (L)
Audio (R)
Connect the power cord
after all connections are
complete.
