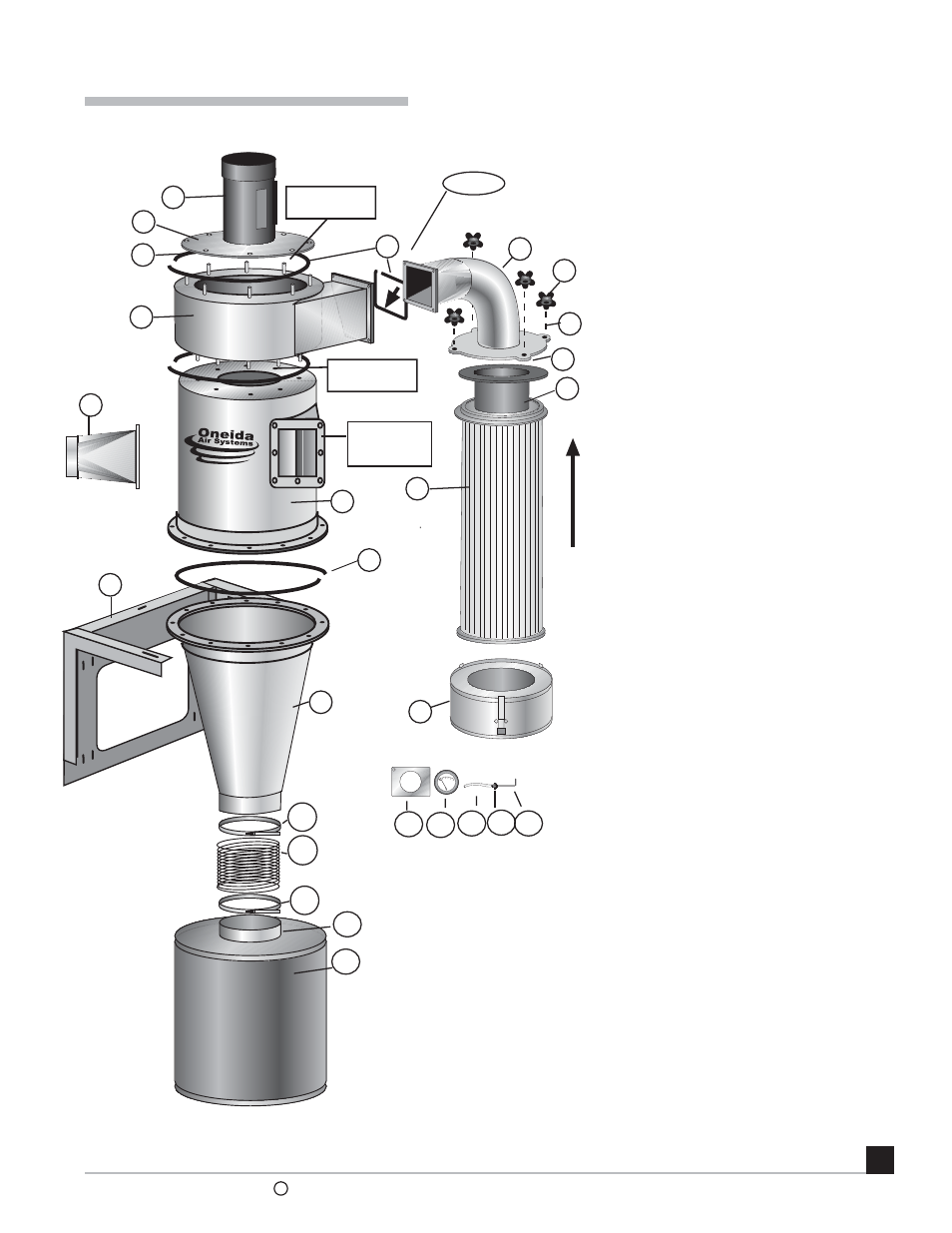

V. General Assembly
Pro 2000 Owner’s Manual O.A.S. 2007 c
6
Cyclone
Barrel
Cone
Square to Round
Connects to Inlet
1. Motor/Blower Assembly BXI012309-1ph - - 3ph
1a. Fan Wheel - BWX159800
Magnetic Starter w/ Remote Option: 1 phase
1b. Motor Starter - AMR221417 1phase only
1c. Cord Connector - WWC027063 1 phase only
1d. Cord Connector Locknut - WCN340000 1 phase only
1e. 5hp Motor BMZ050170 - 1 ph / BMZ050370-3 ph
1f. Motor Plate - RMP002301
Magnetic Starter not factory wired 3 phase
Enclosed contactor with 220v coil - AMC183600
Overload 12-18 amps - AMO121800
Start Stop Push Button - AMP000000
2. Fan Housing - BHX030009
3. Cyclone Barrel - SXI002309
4. Cyclone Cone - SCX002309
5. Plenum Assembly for Filter 8” Elbow - FPX010300
5a. Thumb Nut (4) - AFT000001
5b. Cartridge Filter Threaded Clamp (4) - AFX000000
5b1. AFB155180 Bolt 5/16-18 x 2 1/2”
5c. Fender Washer 5/16” (4) - AFW170000
5d. Dust Pan 4” - FPZ016040
5e. Hardware Kit - AHX000000
f1. (14) 3/8” Washers - AFW190000
f2. (7) 3/8” Wiz Nuts - AFT00004
f3. (7) 3/8” x 1” Bolts - AFS015100
f4. (12) 5/16” x 1” Bolts - AFB155190
f5. (24) 5/16” Washers - AFW180000
f6. (28) 5/16” Wiz Lock Nuts AFT155175
f7. Gasket - RGZ000000 (25’)
f8. (3) 3/8” x 1 14” Bolts - AFS0157007
6. Internal Silencer (Pat. Pend.) - BSC180000
7. Filter - 18” Dia. x 62”L - FCS186200
8. Owner’s Manual - ZBM000015
9. Decal - (1) Oneida Logo - ZBC000015
10. Labels
10a. Rotation Label - ZBC000029
10b. Caution / Exhaust Label - ZBS000004
10c. General Caution Label - ZBS000001
10d. Filter Maintenance Label - ZBS000007
10e. Caution / Check Frequently Label - ZBS000006
10f. Caution / Drum Cover Label - ZBS000005
11. Wall Bracket -Standard- SMS30000
12. Square to Round Inlet Transition to 8” dia. - BQX082000
Options for Dust Drums: OKD000000
13. 35 Gal. Fiber Drum Kit (Standard) - SDK351001
13a. Drum Lid w/ 10” Ring - SDX001000
13b. Hose Clamp 12” dia. (2) - ACB120000
13c. 35 Gal. Fiber Drum - SDS350000
13e. Flex Hose (10” dia. x 1’) - DHF100000
13. 55 Gal. Fiber Drum Kit - SDK551001
13a. Drum Lid w/ 10” Ring - SDX001000
13b. Hose Clamps 12” (2) - ACB120000
13c. 55 Gal. Fiber Drum - SDS550000
13e. Flex Hose (10”dia. x 1’) - DHF100000
13. 55 Gal. Steel Drum Kit - SEK551001
13a. Drum Lid w/ 10” Ring - SEX551000
13b. Hose Clamps (2) - ACB120000
13c. 55 Gal. Steel Drum - SES550000
13e. Flex Hose (10” dia. x 1’) - DHF100000
14.Filter Efficiency Gauge 0”-5” H20 - VRG001005
14a. Vinyl Tubing Clear 5/16” O.D. - VRV003125 (8’)
14b. Static Pressure Tip - VRP001875
14c. Mounting Flange for Pitot Tube - VRP010000
14d. Filter Efficiency Gauge Bracket - FXX000000
30. Optional 55 gal. Angle Iron Stand -
Part # STG023055
1. Uprights - SXX000068 (4)
2. Braces - SXX000021 (7)
3. Feet - STX002001 (4)
Stand - Hardware Kit -
Part # AHX021023
A. (32) - 5/16” Bolts
Part # AFB155190
B. (32) - 5/16” Wiz Nuts
Part # AFT155175
C. (64) 5/16” Flat Washers
Part # AFW180000
Optional Angle Iron Stand
0 1 2 3 4 5 INCHES W.C.
14 14a 14b 14d 14c
XXK200001 - 1 phase XXK200003 - 3 phase
f7 5
6
5a
5b
5c
7
f7
4
13b
13e
13b
13a
3
13c
5d
(8) 5/16” Washers
(8) 5/16” Nuts
(8) 5/16” Washers
(8) 5/16” Nuts
(7) 3/8” x 1” Bolts
(7) 3/8” Washers
(7) 3/8” Nuts
11
12
Optional Fan/Blower Outlet Transitions:
15. Square to 8” dia. For Fan Outlet - BQX308000 Uncrimped
15a. Square to 8” dia. For Fan Outlet - BQX308001 Crimped
2
1a
1e
1f
15 & 15a
