VIII. Filter Assembly
9
Pro 2000 Owner’s Manual O.A.S. 2007 c
Note: Do not return exhaust air to the shop unless filter media is added.
External 62” Filter Assembly
1. Attach cartridge with hardware provided making sure
gasket is attached. See Fig. 1
2. If Filter requires additional support. Use the plate at the
top of the filter to support the filter assembly.
Note: If filter cartridge is located away from the cyclone
and motor, additional square-to-round connectors and pipe
can be purchased.
*Silencer Included.
For Filter cleaning instructions, see pg. 11.
Caution:
If exhaust air is vented outside you must provide make up / return air.
Flue gases (carbon monoxide) can be drawn into the shop from furnaces,
water heaters or other appliances.
1. Exhaust air to exterior of building.
Mount directly at the hole in exterior
wall or use a square-to-round transition
and ductwork to vent air to exterior.
No Filter Assembly
* Exhaust Diverter -
Can be used either
up or down
Option -
* Only usable on No Filter.
Caution: Rotating blades! Keep hands clear. Keep
people away from exhaust.

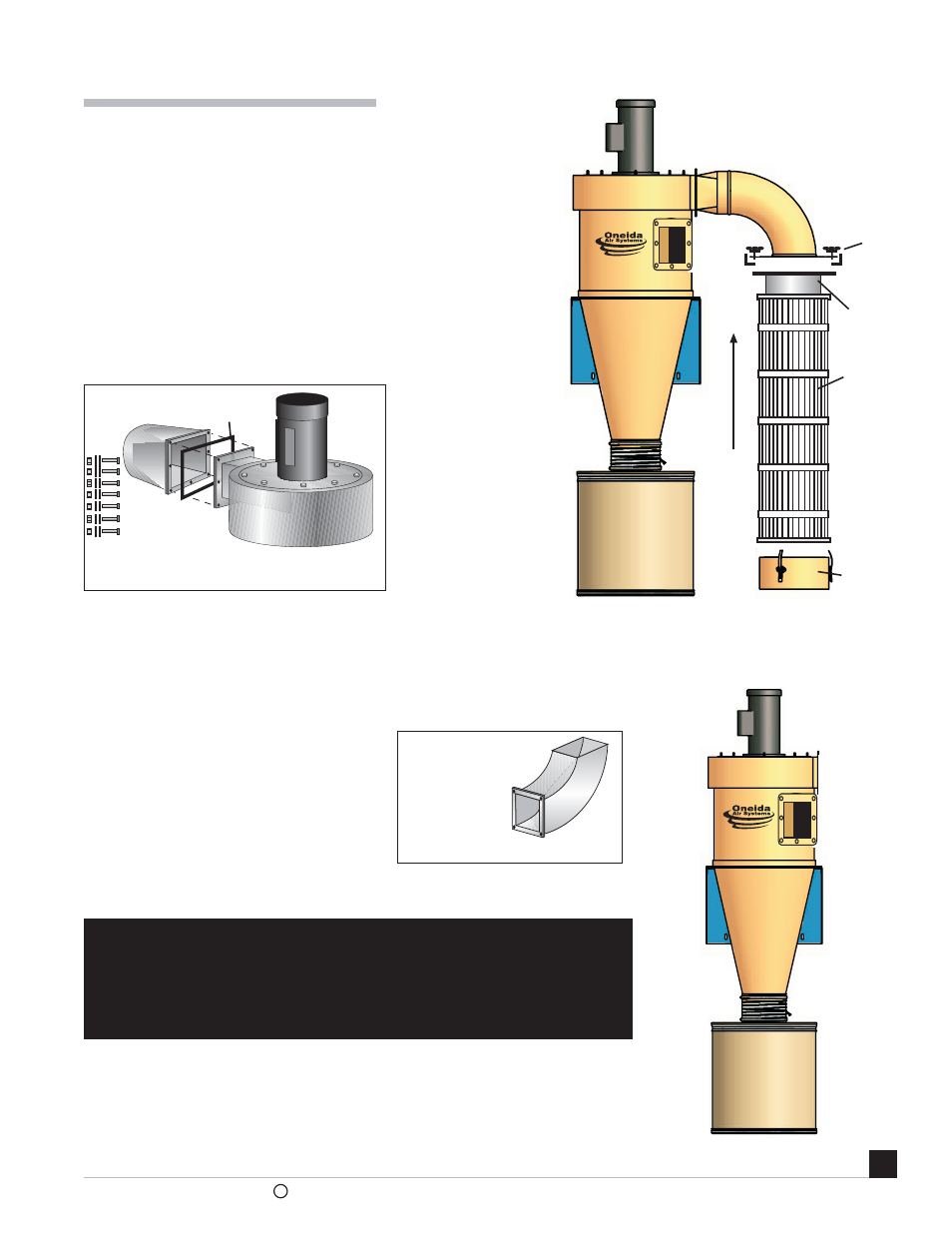

Fig. 1 Gasket
Material
(7) 3/8” x 1” Bolts
(14) Washers
(7) Serrated Nuts
Silencer
Filter
Filter
Clamp
Dust Bin
