III. General Specifications & Fan Performance Curves
Pro 2000 Owner’s Manual O.A.S. 2007 c
4
Static pressure and volume together determine
a fan’s performance. Several factors, such as
layout of ductwork and diameter of openings,
can affect a fan’s performance.
1973 CFM @ 2” SP w/c w/o filter
Full 16 gauge galvanized cyclone & 14 ga. barrel
Rectangular inlet with included Square to Round to 8”
Rectangular outlet
Cast aluminum fan wheel
back inclined non-sparking, non-ferrous dynamic, two-planed balanced to ISO 6.3
specifications.
Sound 80 - 82dB @ 10’ with Built-in Silencer and Filter
130 Sq. Ft. Filter Media / Spun-Bonded

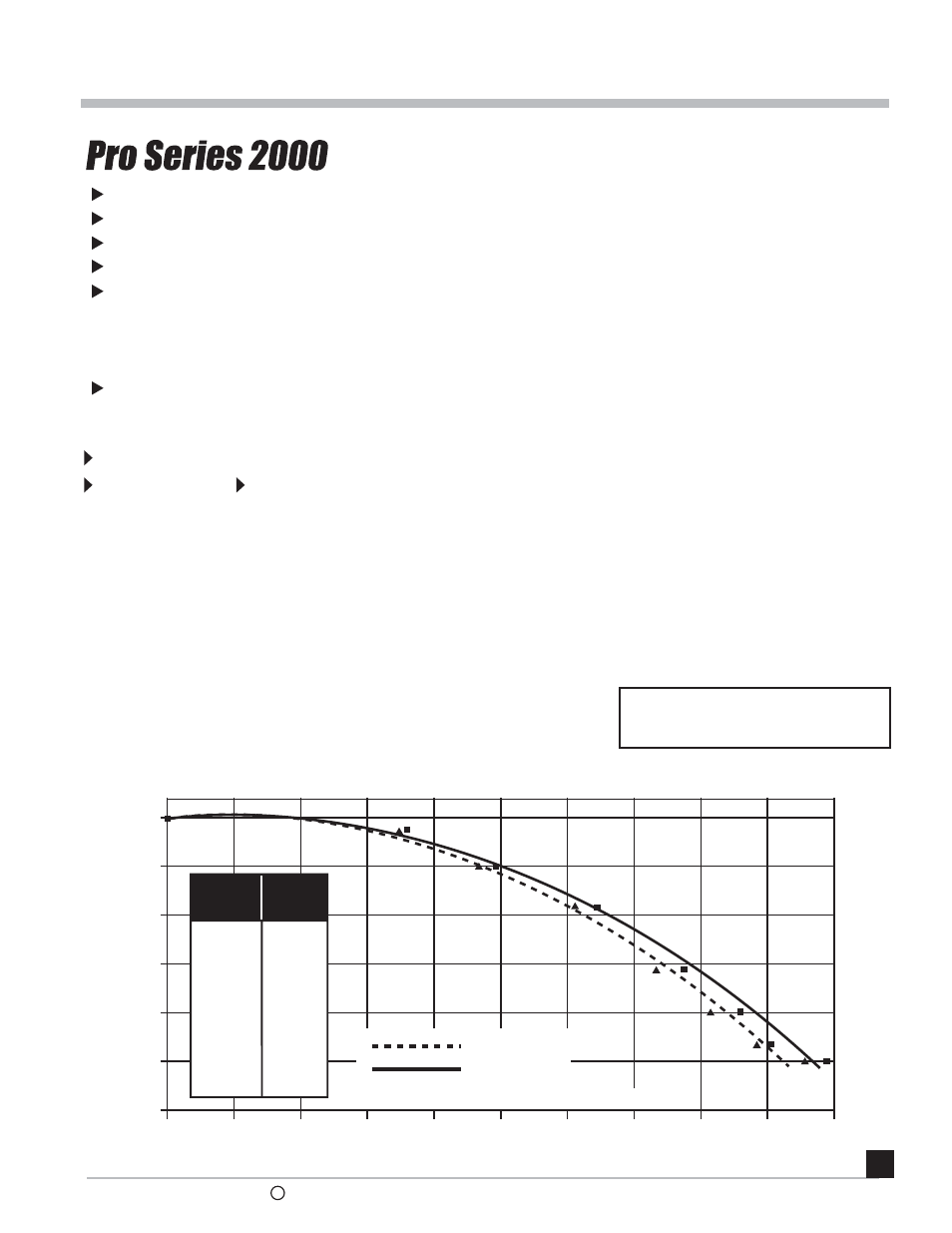

System Fan Curve
U.S. Made Baldor / TEFC / Class F / 1.15 SF
Single Phase
5hp Motor
208 - 230V
19.8A
Three Phase
5hp Motor
208 - 230 / 460V
13.6 - 12.4 / 6.2A
Pro Series 2000
6
4
2
0
St
atic Pressure at Cyclone Inlet
CFM
0 200 400 600 1000 800
12
1800 1600 1200
12
8
10
1400 2000
11.1
10
8.1
5.8
4
2.75
2
- Without Filter
*Fan curves vary slightly with different filter packages.
- With Filter
1973
1802
1709
1543
1273
987
736
0
2.00
2.75
4.00
5.80
8.10
10.00
11.10
12.00
SP @
Inlet
CFM
w/o Filter
