User’s Manual
14
3.1 Front Panel Introduction
The front panel controls enable user to control the unit and preset the
programmable functions.

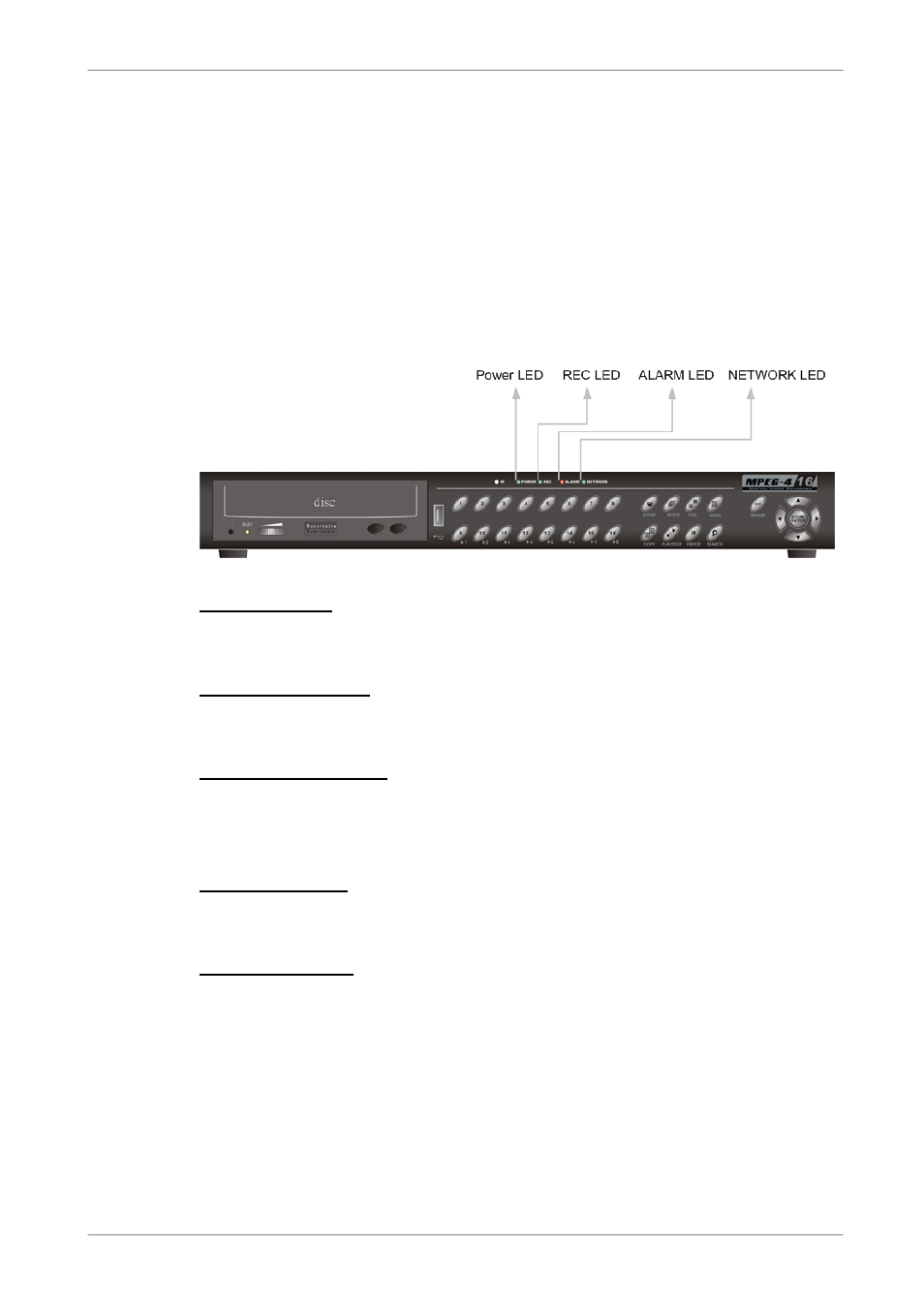

3.1.1 LED Definition
The MPEG-4 DVR LEDs on the front panel are described as follows.
IR LED (Green)
The Led blinks when you commend using the attached Remote Controller.
Power LED (Green)
The LED lit during the period when the correct power is connected.
Network LED (Green)
The LED should be lit when MPEG-4 DVR is connected to a network and
blink when the data is being transferred.
Alarm LED (Red)
The LED should be lit during an alarm is triggered.
REC LED (Green)
The LED should blink while the MPEG-4 DVR is recording.
