Connecting the Amplifier
—Continued
Since many users will purchase the amplifier together with the Onkyo AV controller PR-SC5507, here is an explanation
of how to connect the amplifier to the PR-SC5507. For more details, see the instruction manual of the connected com-
ponent.
Notes:
• When using the balanced inputs, do not connect anything to the RCA inputs.
• Make sure that the balanced cable is not split. The split balanced cable may be the cause of noise.
• If a device with the USA type terminal is connected, the phase will be reversed. In this case, swap the polarity of the
XLR connector in order to set the polarity to the European type before connecting.

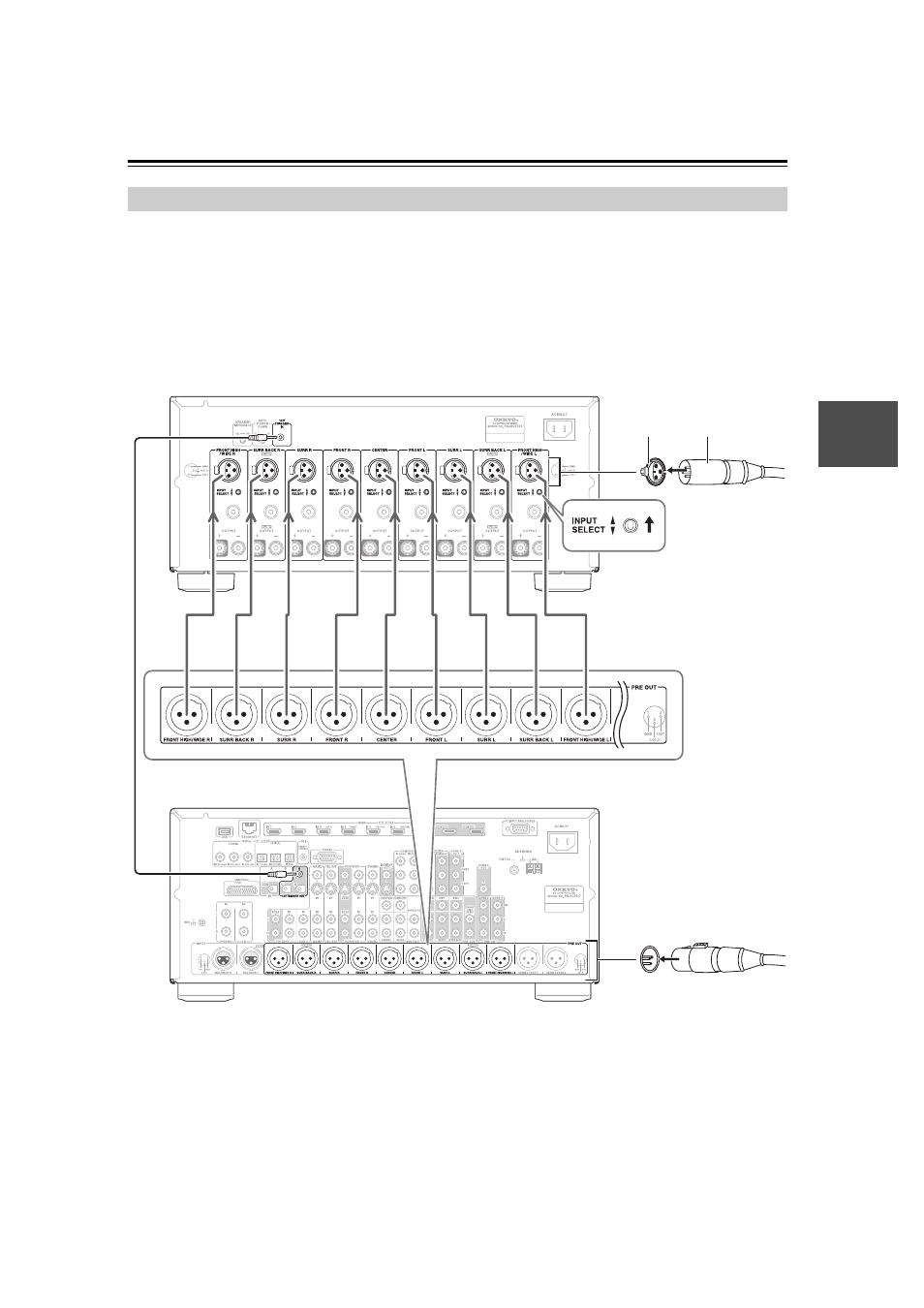

Connecting to an AV Controller with XLR output
XLR type Balanced cable
From the AV controller
From the amplifier
AV controller
The amplifier
