Control positions and names
Front panel
The HTP-L50 is a 5.1-channel speaker package that consists
of five satellite speakers and one subwoofer with an internal
amplifier.
The HTP-L50 features the SL-105 subwoofer with L/R
mixing circuits and a built-in cut-off filter as the subwoofer
and the D-L1 speakers with MDF (Medium Density
Feature
A LINE INPUT jacks
Connect these jacks to the LINE OUT jacks of the
amplifier etc.
B AUTO STANDBY switch
This switch is used to turn on and off the auto standby
function.
ON: This activates the auto standby function.
If a constant level signal is not received from the amplifier
(or receiver) over a period of a few minutes, the SL-105
automatically enters the standby state. If a constant level
signal is later received from the amplifier (or receiver), the
power is automatically turned back on.
OFF: Deactivates the auto standby function.
Notes:
• The auto standby function operates on the existence or
absence of a constant level input signal. If the auto
standby function does not operate properly, try slightly
increasing (or decreasing) the output level of the
amplifier or receiver.
(Note that output levels of some amplifiers and receivers
cannot be adjusted. For more details regarding your
components, refer to the instruction manual supplied
with them.)
• If noise from peripheral components causes the incorrect
operation of the auto standby function, or if outputting
low volumes (i.e., during the nighttime) causes the auto
standby function to activate, turn off the auto standby
function.
• The auto standby function only operates while the power
switch for the SL-105 is turned on.
C SPEAKER LEVEL INPUT terminals
Connect these input terminals to the speaker output
terminals of your amplifier or receiver.
D SPEAKER LEVEL OUTPUT terminals
The speaker-level signal to the front speakers is output
from these terminals.
1 POWER switch and indicator
Pressing this button turns the power on (the indicator
lights). Pressing the button again turns the power off (the
indicator goes out).
Red: Unit is in standby mode
Green: Unit is in operation
2 FREQUENCY knob
Use this knob to select the high-frequency range at which
you wish to cut off the signal to the subwoofer. You can
select any frequency between 50 Hz and 200 Hz depending
on the characteristics of the speaker system being used with
the SL-105.
3 OUTPUT LEVEL knob
Use this knob to adjust the output level of the subwoofer.

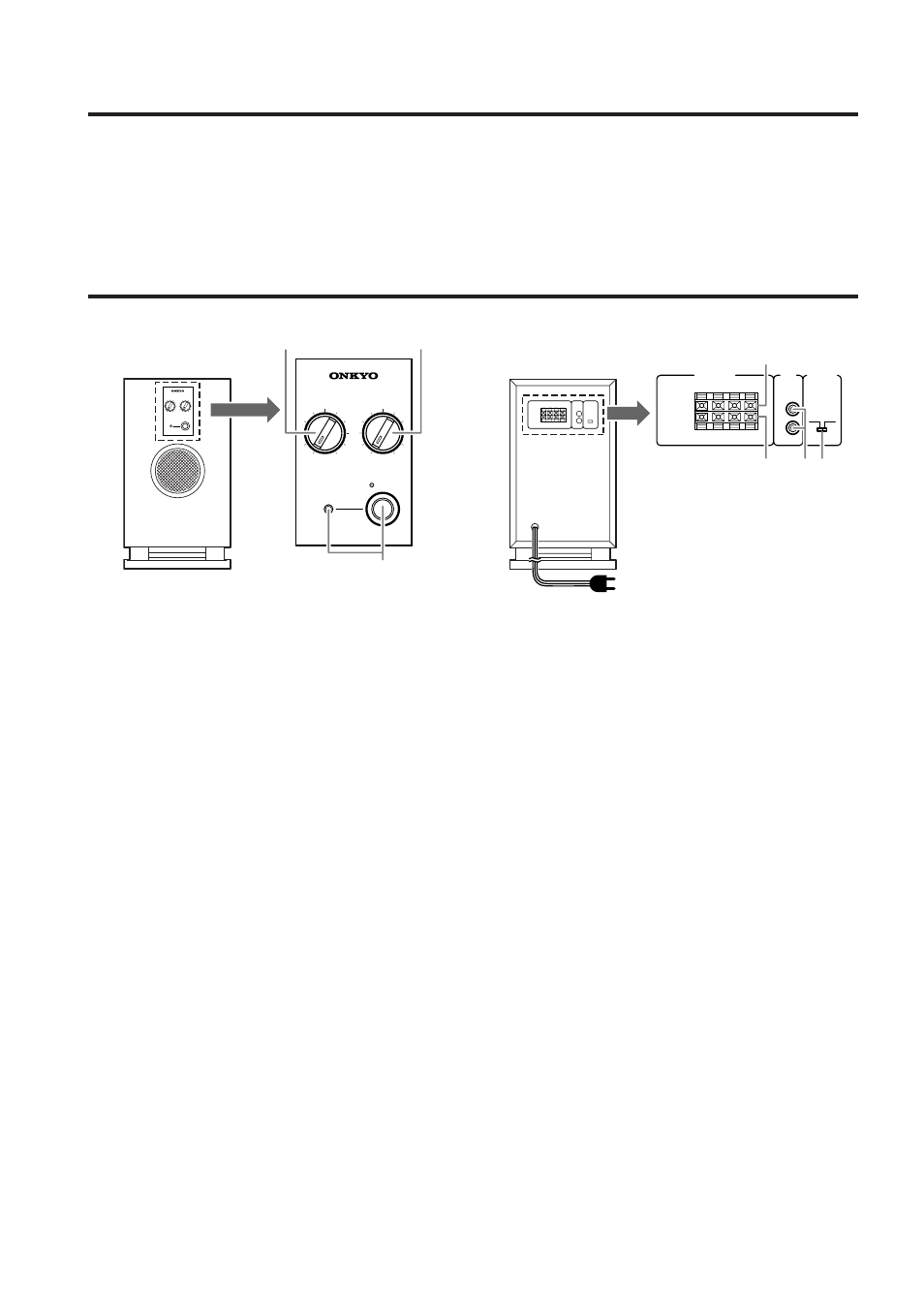

Rear panel
R
SPEAKER LEVEL
INPUT
FROM
AMP/RECEIVER
AUTO STANDBY LINE
INPUT
L
R
OFF ON
OUTPUT
TO SPEAKERS
(MONO)
+ _
L + _
R + _
L + _
SL-105
C
D A B
To AC outlet
FREQUENCY OUTPUT LEVEL
MIN MAX 50Hz 200Hz
POWER
POWERED SUBWOOFER
SL-105
1
2 3
■ Subwoofer SL-105
Fiberboard) cabinet and OMF-cone as the five satellite
speakers. Simply connect the speakers to your AV amplifier
or receiver for superb surround audio playback.
The speaker cables and satellite speaker terminals are color-
coded to facilitate connection. Connect each cable to the
matching-colored terminal.
