15
Front & Rear Panels —Continued
■
European Model
A AUDIO OUTPUT [22–23]
These jacks output analog audio. The FRONT/
D.MIX jacks can be connected to the stereo input on
a TV, hi-fi amp, or other component. The 1 and 2
jacks output the same signals so you can use either.
DVDs with 5.1-channel audio are downmixed into
two channels before being output by the FRONT/
D.MIX jacks.
If you’re using an AV receiver or surround decoder
with a 5.1-channel analog audio input, use the
FRONT/D.MIX 1 or 2 jacks and the SURR L/R,
CENTER, and SUBWOOFER jacks. In this case,
you must set the Audio Output Mode on the Initial
Setup menu to 5.1 Channel. With this setting, the
FRONT/D.MIX jacks will output the front signals,
and the SURR L/R, CENTER, and SUBWOOFER
jacks will output the surround, center, and sub-
woofer signals respectively.
B COAXIAL DIGITAL AUDIO OUTPUT [22]
This coaxial digital audio output can be connected
to a coaxial digital audio input on a hi-fi amp, AV
receiver, or surround sound decoder (Dolby Digital,
DTS).
C OPTICAL DIGITAL AUDIO OUTPUT [22]
This optical digital audio output can be connected to
an optical digital audio input on a hi-fi amp, AV
receiver, or surround sound decoder (Dolby Digital,
DTS).
D VIDEO OUTPUT [19]
This RCA connector can be used to connect a TV or
projector with a composite video input.
E COMPONENT VIDEO OUTPUT [20]
These jacks output component video and can be
connected to an component video input on a TV or
projector.
F S VIDEO OUTPUT [20]
This connector can be used to connect a TV or pro-
jector with an S Video input.
G AV CONNECTOR [20]
This SCART output can be connected to a TV or
projector with a SCART input by using the supplied
SCART cable. This SCART connector outputs 2-
channel stereo audio, composite video, S Video, and
RGB video.
H jack [23]
These (Remote Interactive) connectors can be
connected to the connectors on your other
Onkyo AV components for interactive control.
Connecting an
cable only does not make the
system operational. You must also connect the audio
cables as well.
I AC INLET [24]
The supplied power cord is connected here. The
other of the power cord should be connected to a
suitable wall outlet.

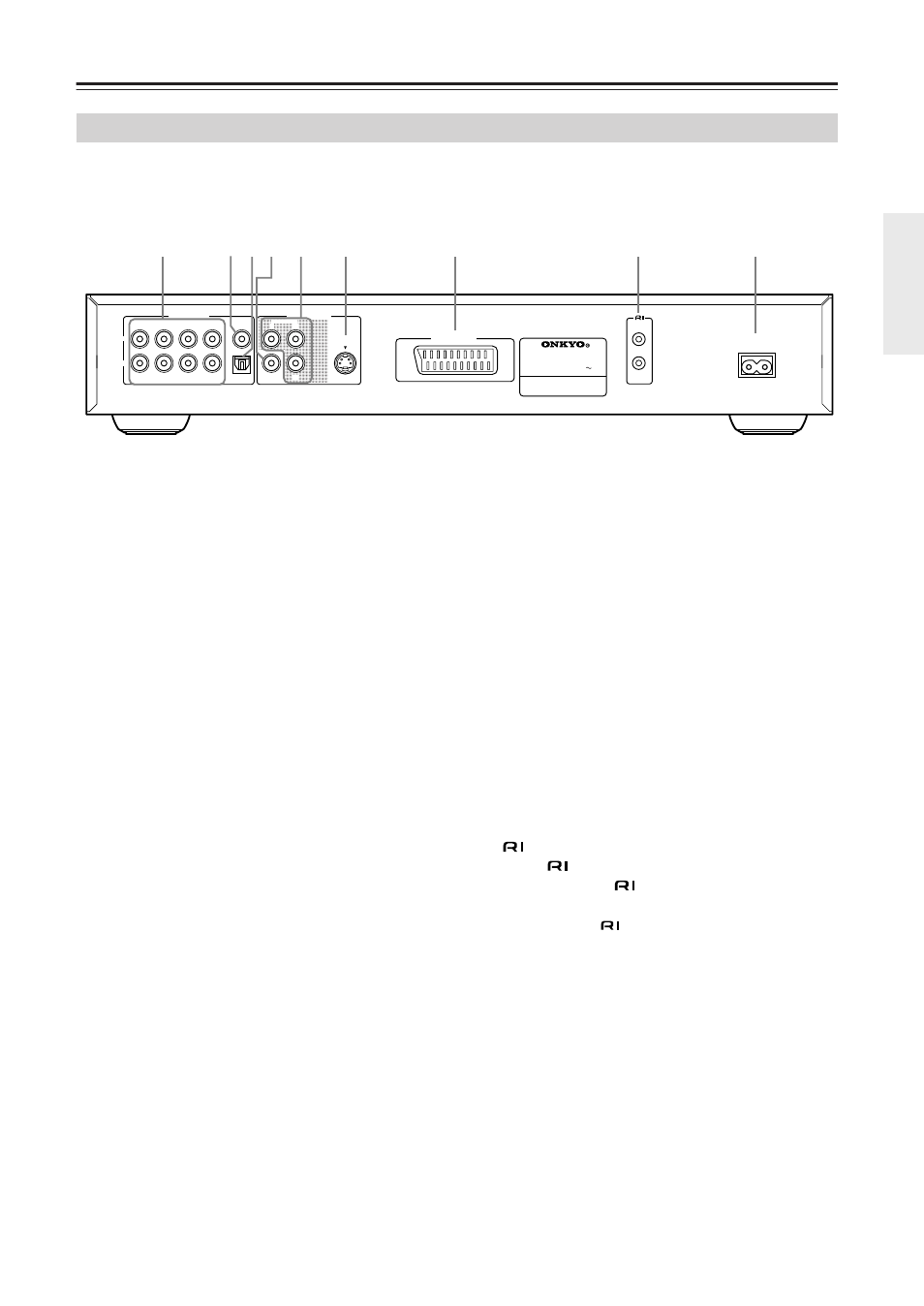

Rear Panel
AC INLET
VIDEO
S VIDEO
R
L
SURR CENTER 1 2
FRONT/D. MIX
AUDIO OUTPUT
DIGITAL
SUB
WOOFER
OPTICAL
COAXIAL P B Y
P R
COMPONENT
VIDEO OUTPUT
SUPER AUDIO CD & DVD AUDIO/
VIDEO PLAYER
MODEL NO. DV-SP 503E
RATING: AC 100-240 V
50 / 60Hz 12 W
REMOTE
CONTROL
AV CONNECTOR
1 6 8 7 9 5 3 2 4
