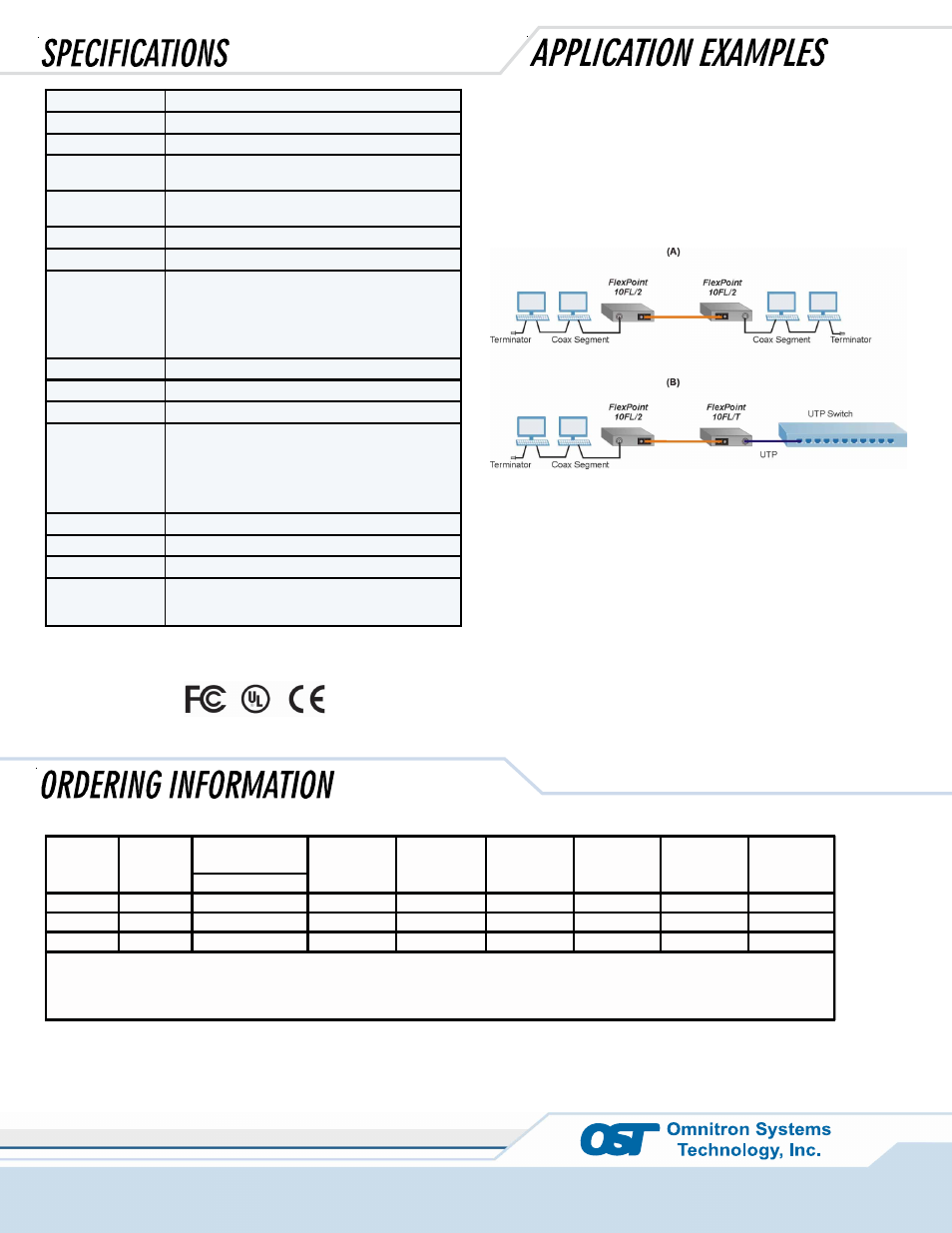

A pair of FlexPoint 10FL/2 media converters (A) enable two
separate 10BASE-2 coax segments to be connected via fiber,
extending network connectivity. A FlexPoint 10FL/T (B) provides
connection to a UTP switch and extends the network via fiber
to a FlexPoint 10FL/2 connecting multiple workstations on a
10BASE-2 network segment. In both cases, multimode or
single-mode fiber can be used. Network connectivity can be
extended up to 30km using single-mode fiber.

Model Type

10FL/2

Protocols

IEEE 802.3, 10BASE-FL, 10BASE-2

UTP Cable

EIA/TIA 568A/B, Category 5 and higher

Fiber Cables

Multimode: 50/125, 62.5/125, 100/140µm

Single-mode: 9/125µm

Copper Connectors

BNC, 50 ohm, RG-58/U, RG-58C/U,

RG-58/U or equivalent

Fiber Connectors

ST

Switches

User Selectable Coax termination

LED Displays

Power:

Jabber:

Fiber Link:

Fiber Receive:

Coax Receive:

Collision:

Yellow LED

Red LED

Green LED
Green LED
Green LED
Yellow LED

Power Applied
Jabber Condition
Device Present
Data Received
Data Received
Collision Detected

Dimensions

W: 3.0" x D: 4.0" x H: 1.0"

Weight

6 oz. (without power adapter)

Compliance

UL, CE, FCC Class A

Barrel

Connector

Molex

Connector

Power
Requirements

Nominal Voltage:

Voltage Range:

Power Nominal:

Maximum Power:

9VDC

6.0 to15.0VDC

0.8A @ 9VDC

1A @ 9VDC

5VDC

4.75 to 5.25VDC

0.8A @ 5VDC

1A @ 5VDC

Temperature

0 to 50

o

C

Humidity

5 to 95% (non-condensing)

Altitude

-100m to 4000m

MTBF (Hours)

Module without Power Adapter: 1,200,000
Module with Power Adapter -1: 250,000
Module with Power Adapter -2: 100,000

Fiber Type

Distance

Connector Type

Tx / Rx

Wavelength

[nm]

Min. Tx

Power

[dBm]

Max. Tx

Power

[dBm]

Min. Rx

Sense

[dBm]

Max. Rx

Power

[dBm]

Optical

Power

Budget

ST

MM

2km

4310-x

850

-21

-11

-31

-11

10

MM

5km*

4312-x

1310

-21

-11

-31

-11

10

SM

30km*

4311-x

1310

-15

-8

-31

-8

16

Power Adapter Kits (-x): -0 = No power adapter included, -1 = 110-120 VAC/60 Hz (US plug), -2 = 100-240 VAC/50-60 Hz (IEC plug,
no power cord)
For other power and fiber configurations, please consult the factory.

* When operating in half-duplex, the maximum distance is 2km.
